CME MQ6000 Milling Machine

Show in original language

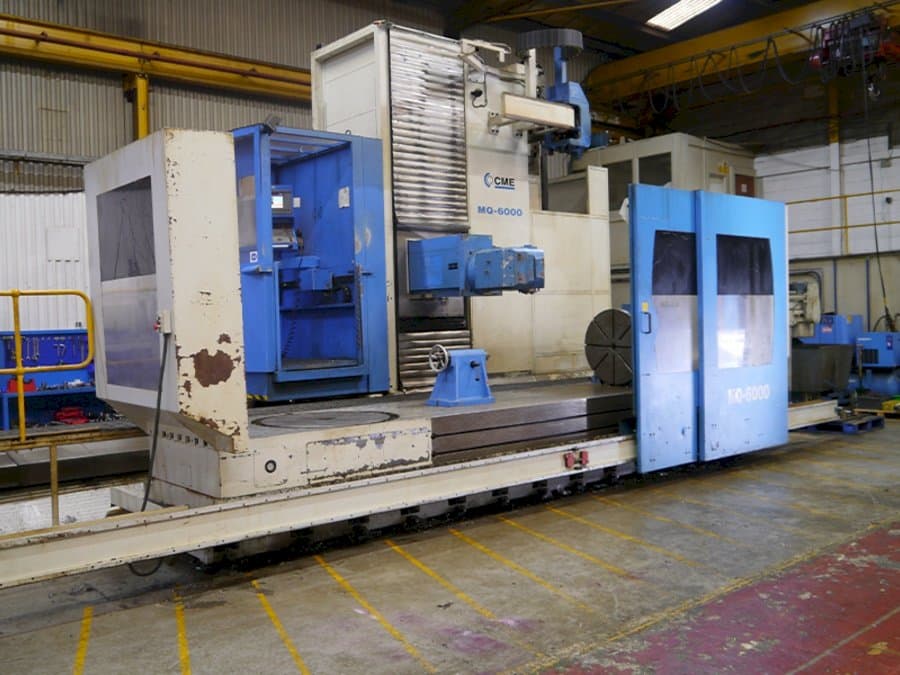

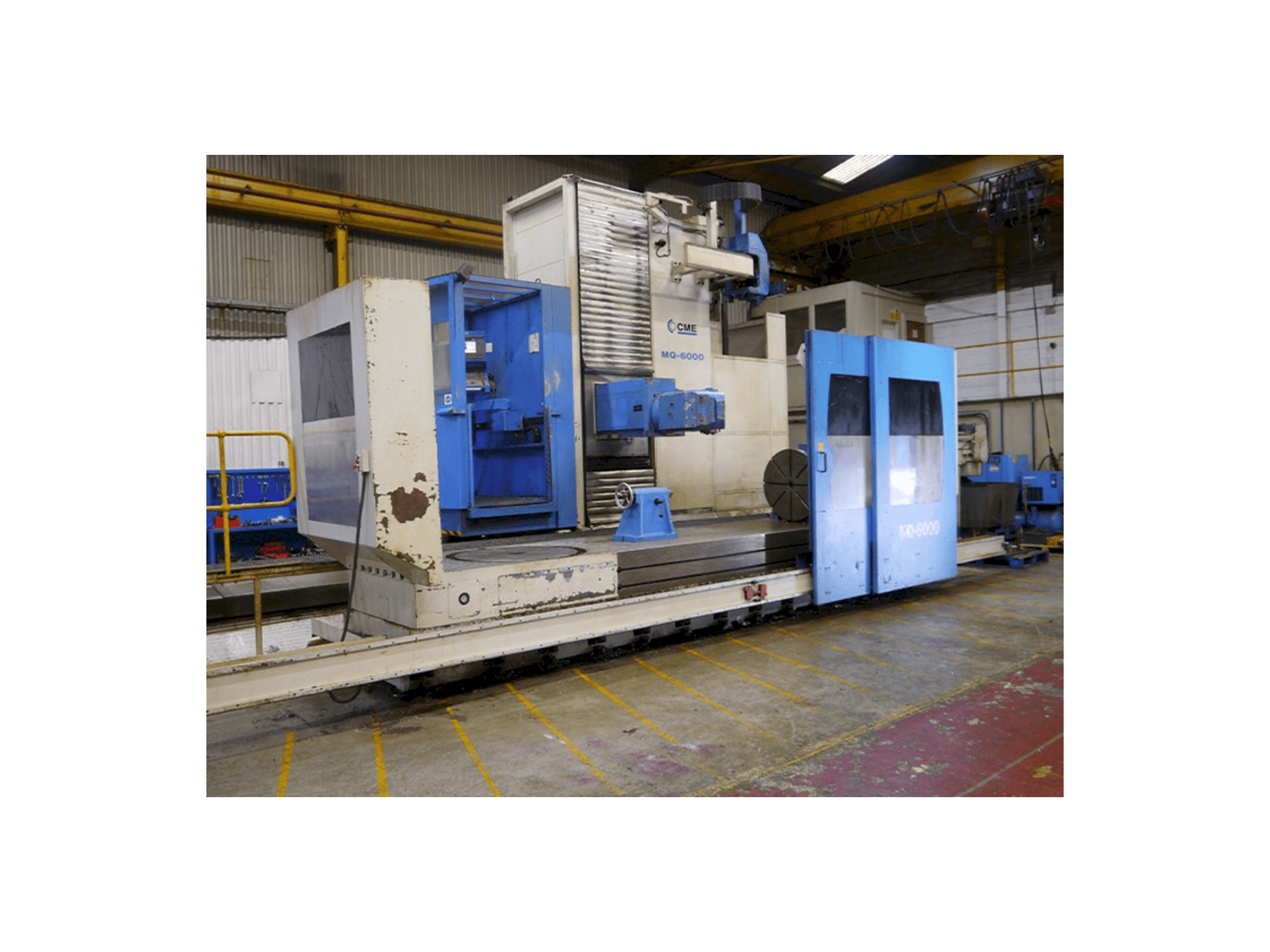

This CME MQ6000 Milling Machine was manufactured in the year 2004. It is equipped with a Heidenhain I530M control unit. This 4 axis machine is capable of working with a spindle speed up to 4000 rpm. It includes a 100 tool automatic tool changer, a coolant, a swarf conveyor, and a hydraulic tool clamping.

Overview

brand: CME
year: 2004
MODEL: MQ6000
application type: Milling
Location: United Kingdom
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - CME MQ6000

General Data

Machine weight: 71480 kg

Control Unit

Model: I530M
Brand: HEIDENHAIN

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 6000 mm

Additional Equipment

- 100 tool automatic tool changer
- Coolant
- Swarf conveyor
- Hydraulic tool clamping

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bed size: 6500 mm x 1200 mm
- - Headstock rise & fall: z axis 2500 mm
- - Spindle bored: iso 50
- - Ram in/out: y axis 1500 mm
- - Head swivels: 360 degrees on 2 faces, a & b axis via 1 degree increments
- - Input: 415/3/50 37 kw
- - Integrated rotary table: c axis 1000 mm diameter via 0. 001 degree increments
- - 4th axis: u axis spirsin 800 mm diameter vertical rotary table size , with tailstock.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
