CHIRON FZ12S Vertical Machining Center

Show in original language

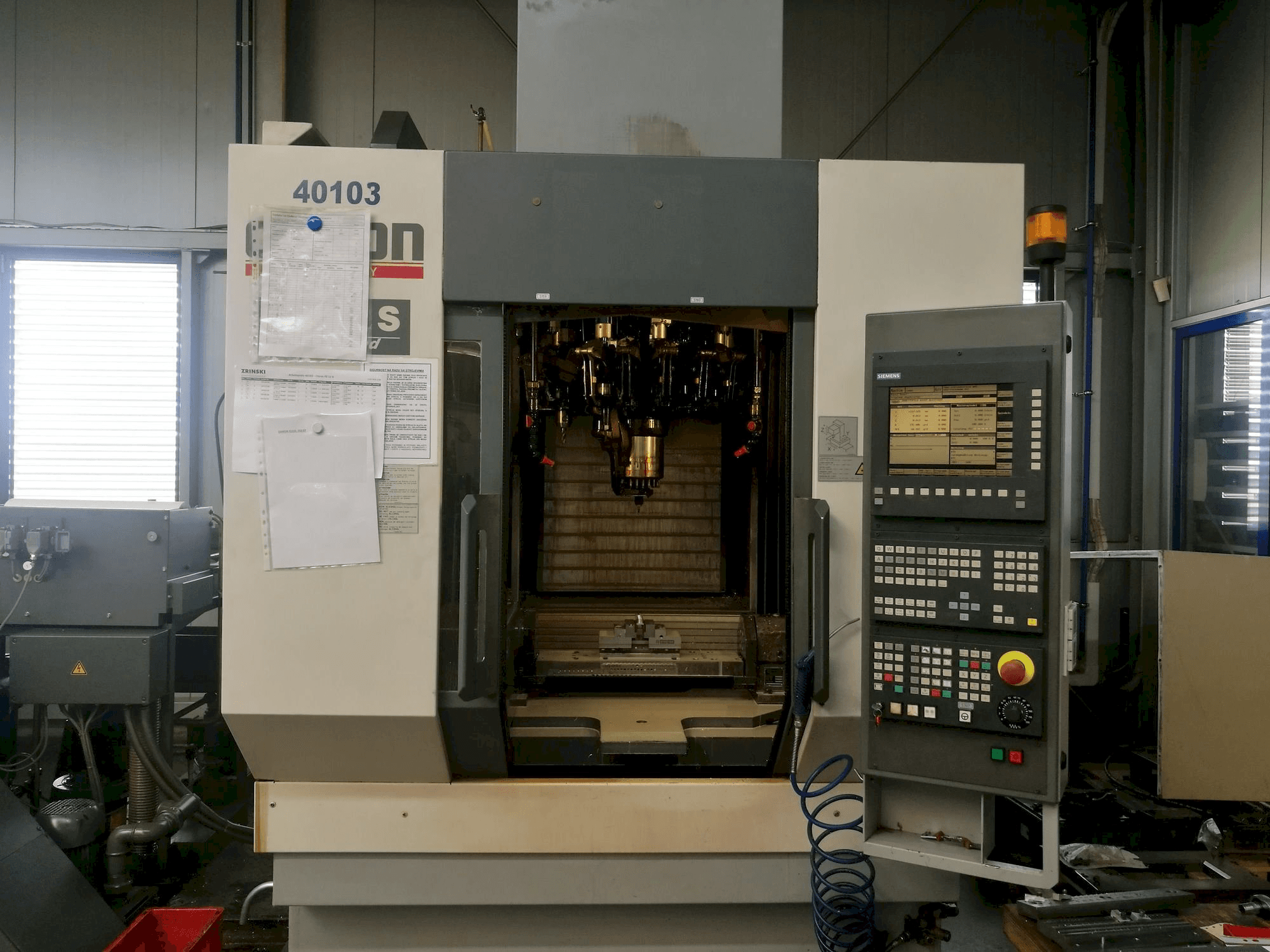

This CHIRON FZ12S Vertical Machining Center was manufactured in 1999 in Germany and has been operative for 43000 hours. Operated through a SIEMENS 840 D Control unit, this machine has a spindle speed range up tp 10500 rpm. An Emulsion filter and a 4th axis rotary unit are included.

Overview

brand: CHIRON
year: 1999
MODEL: FZ12S
production hours: 43000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ12S

General Data

Measurements width: 3200 mm
Measurements depth: 3400 mm
Measurements height: 2900 mm
Machine weight: 6220 kg

Control Unit

Model: 840 D
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10500 rpm 1/MIN

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 1150 mm
Outer width: 460 mm

Tools

Slots in storage: 20
Type of tool holder: HSK63

Media

Main electronic connection: 400 V
Power consumption: 28 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- emulsion filter
- 4th axis rotary unit Piesler 550x150mm, 360°

Additional Information

Machine history

Material type: Aluminum, titanium
End product: Medical instruments
Industries: Medical

Machine Benefits

Technical Machine Benefits:
- - 4 axis rotary unit
- - Fast machine
Qualitative Machine Benefits:
- - Works in 0. 01mm
- - Regulary maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
