➤ Used CHIRON FZ 22 S | Vertical Machining Center

Show in original language

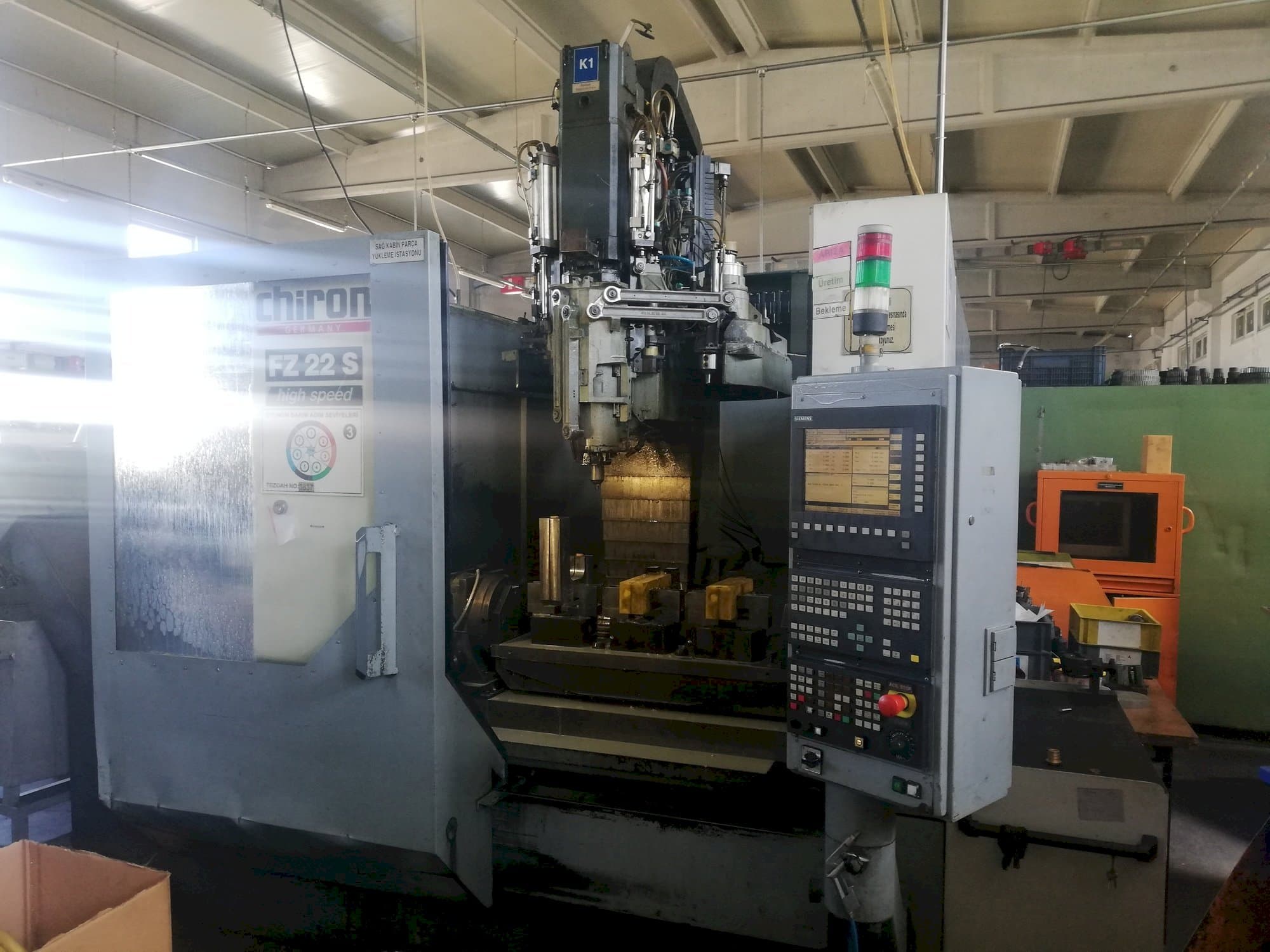

This CHIRON FZ 22 S Vertical Machining Center was manufactured in Germany in the year 2000. Operated through a SIEMENS SINUMERIK 840 D Control unit, this machine can perform with a spindle speed up to 10500 rpm.

Overview

brand: CHIRON
year: 2000
MODEL: FZ 22 S
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 22 S

General Data

Measurements width: 3550 mm
Measurements depth: 3460 mm
Measurements height: 3400 mm
Machine weight: 8000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10500 1/MIN

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 1150 mm
Outer width: 460 mm

Tools

Type of tool holder: HSK 40

Media

Main electronic connection: 400 V
Pump drive power: 36 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
