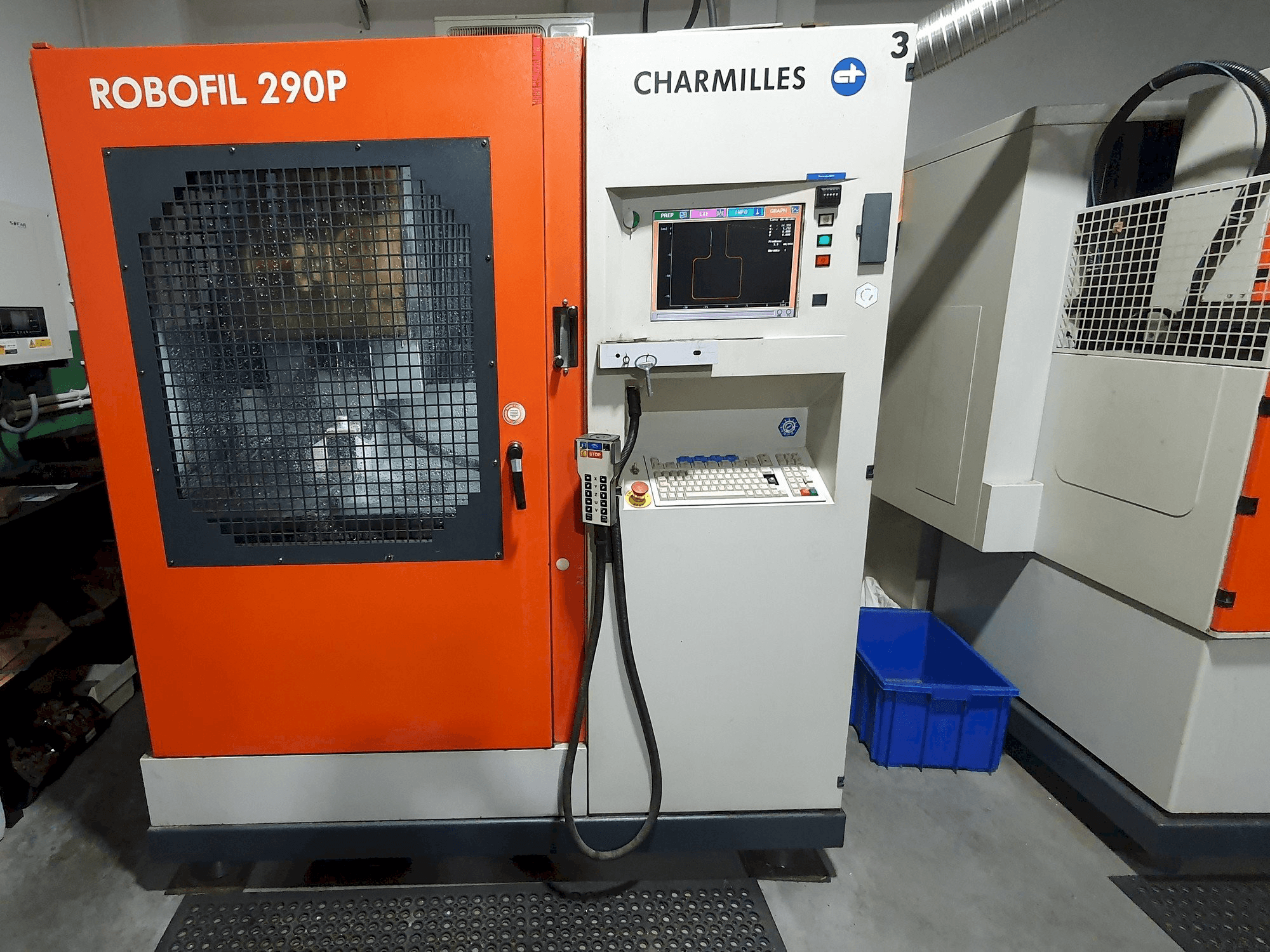

CHARMILLES Robofil 290P Erosion Machine

Show in original language

This CHARMILLES Robofil 290P Erosion Machine was manufactured in 2003 in Switzerland. This 5 axis machine presents a table dimensions 850 x 500 mm and a max cutting angle of 30 degrees. It has protection against collisions. It counts with Charmilles control unit. This machine is in good condition.

Overview

brand: CHARMILLES
year: 2003
MODEL: Robofil 290P
production hours: 55879
application type: EDM
Location: Poland
machine type: Wire EDM Machine
availability: Sold
control unit brand: CHARMILLES

Technical Information - CHARMILLES Robofil 290P

General Data

Measurements width: 1800 mm
Measurements depth: 1600 mm
Measurements height: 2180 mm
Machine weight: 2500 kg

Control Unit

Brand: CHARMILLES

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 200 mm
V-Axis Movement: 250 mm
U-Axis Movement: 400 mm

Workpiece

Workpiece x: 850 mm
Workpiece y: 500 mm
Workpiece z: 200 mm
Workpiece weight: 500 kg

Table

Outer length: 850 mm
Outer width: 500 mm

Media

Main electronic connection: 3x380V / 50Hz
Power consumption: 10 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max cutting angle: 30 degrees
Qualitative Machine Benefits:
- - Machine in very good, working condition and ready for tests.
- - Documentation available.

Extra information

- Included in the offer: Resin bottles Water chiller

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
