CHARMILLES Robofil 2020 SI Erosion Machine

Show in original language

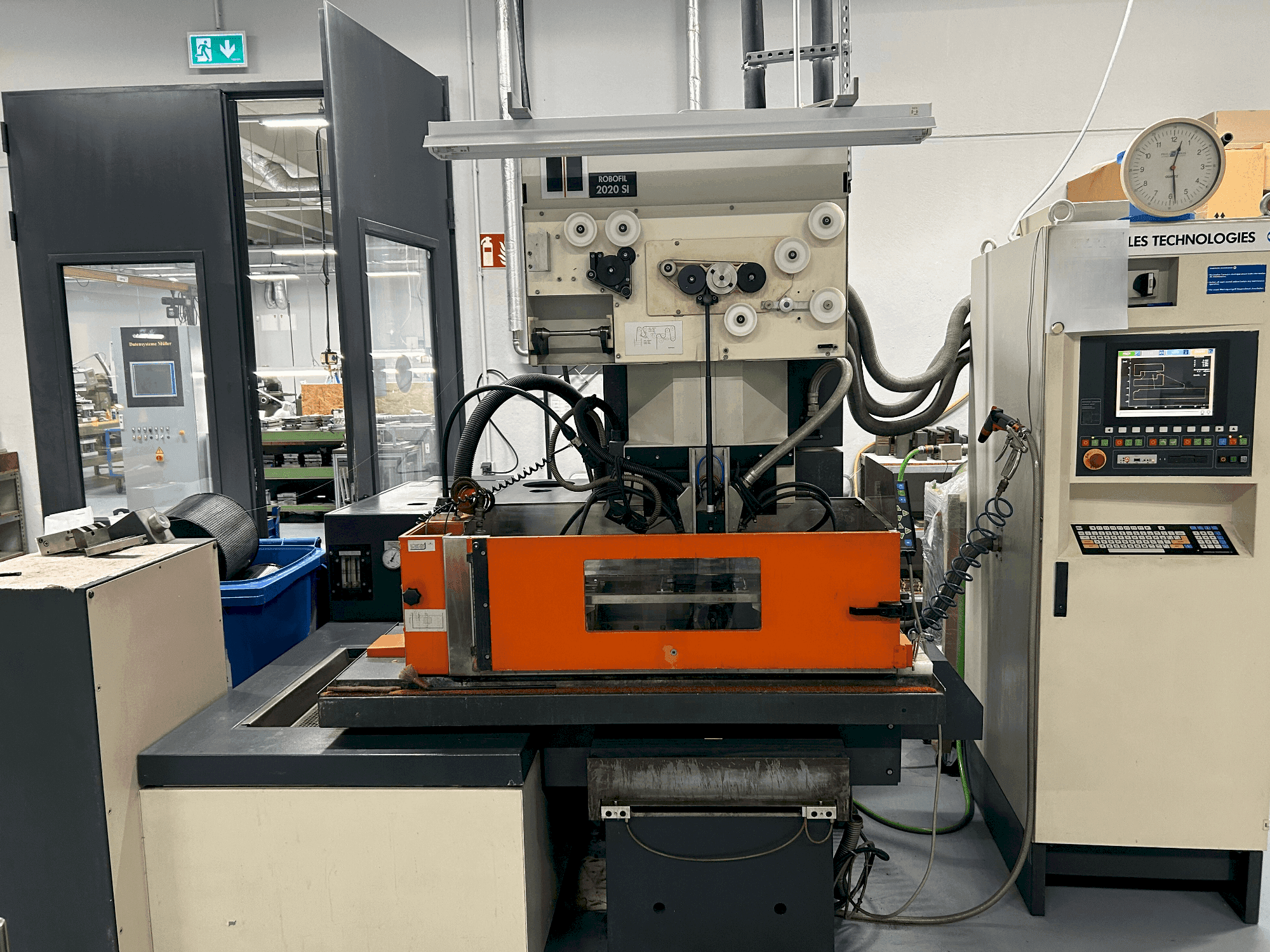

This CHARMILLES Robofil 2020 SI Erosion Machine was made in 1996 in Switzerland. It has been working for approximately 73000 hours. It operates in solid conditions without any problems and can be inspected under production. In the delivery scope all standard accessories are available (except clamping devices). For more information see PDF attached.

Overview

brand: CHARMILLES
year: 1996
MODEL: ROBOFIL 2020 SI
production hours: 73000
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold

Technical Information - CHARMILLES ROBOFIL 2020 SI

General Data

Measurements width: z2305 MM
Measurements depth: 1750 MM
Measurements height: 2250 MM
Machine weight: 2440 kg

Movement

X-AXIS Movement: 320 mm
Y-AXIS Movement: 220 mm
Z-AXIS Movement: 116 mm

Table

Inner length: 990 mm
Inner width: 505 mm
Table load: max. 500 kg

Media

Main electronic connection: 50 Hz/60 Hz

Additional Equipment

- Standard accessories of scope of original delivery are included (excluding clamping devices)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece dimensions: 990 x 505 mm
- - Max. Workpiece height with immersion: 150 mm
Qualitative Machine Benefits:
- - Machine is currently in full operation without any problems
- - Machine can be inspected under production conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
