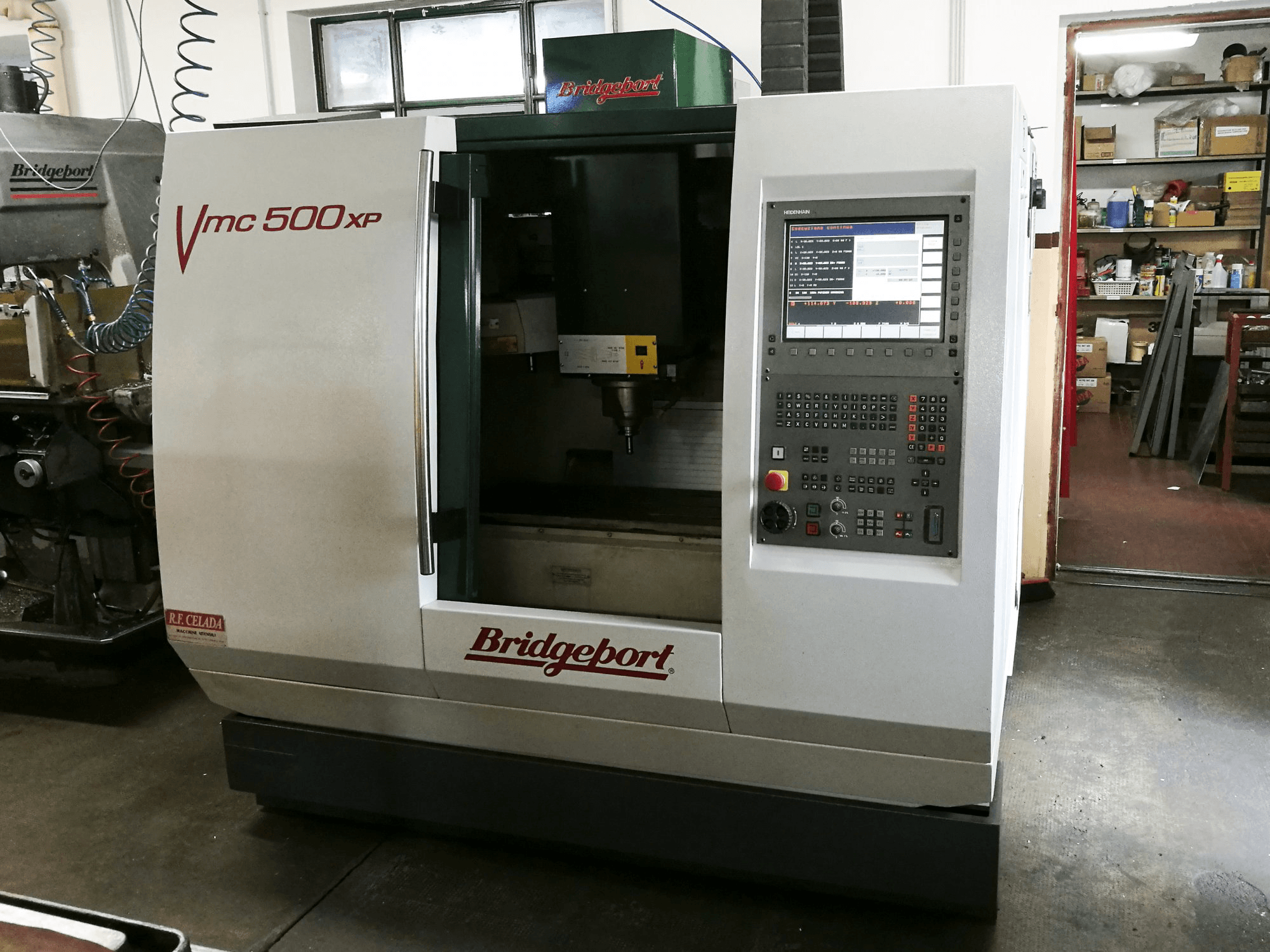

Bridgeport VMC 500 XP Machining Center

Show in original language

This Bridgeport VMC 500 XP Machining Center was manufactured in 2003 and has been working for approximately 29120 production hours since then. The machine is equipped with the HEIDENHAIN iTNC 530 control unit and fits well in any kind of environment thanks to its compact design. This equipment’s guides stand in an excellent condition, and the machine itself has received a new coat of paint. Furthermore, it features a 14x automatic tool changer and includes 21x tool holders as additional equipment.

Overview

brand: Bridgeport
year: 2003
MODEL: VMC 500 XP
production hours: 29120
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 500 XP

General Data

Measurements width: 2300 mm
Measurements depth: 2100 mm
Measurements height: 2290 mm
Machine weight: 2500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/min
Spindle motor power: 10 kW
Tool taper: BT 40

Movement

Z-AXIS Rapid traverse: 20 m/min
X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 43 m/min
X-AXIS Backlash: 0.05 mm
Y-AXIS Movement: 340 mm
Y-AXIS Rapid traverse: 43 m/min
Y-AXIS Backlash: 0.06 mm
Z-AXIS Movement: 520 mm

Table

Outer length: 840 mm
Outer width: 360 mm
TSlots size: 18 mm
Number of tslots: 3

Tools

Slots in storage: 14
Max weight: 6 kg
Max tool diameter: 75 mm
Max tool length: 250 mm

Media

Main electronic connection: 380 V / 3 P / 50 Hz
Power consumption: 10 kVA
Air pressure: 6 bar

Additional Equipment

- 21x Tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
