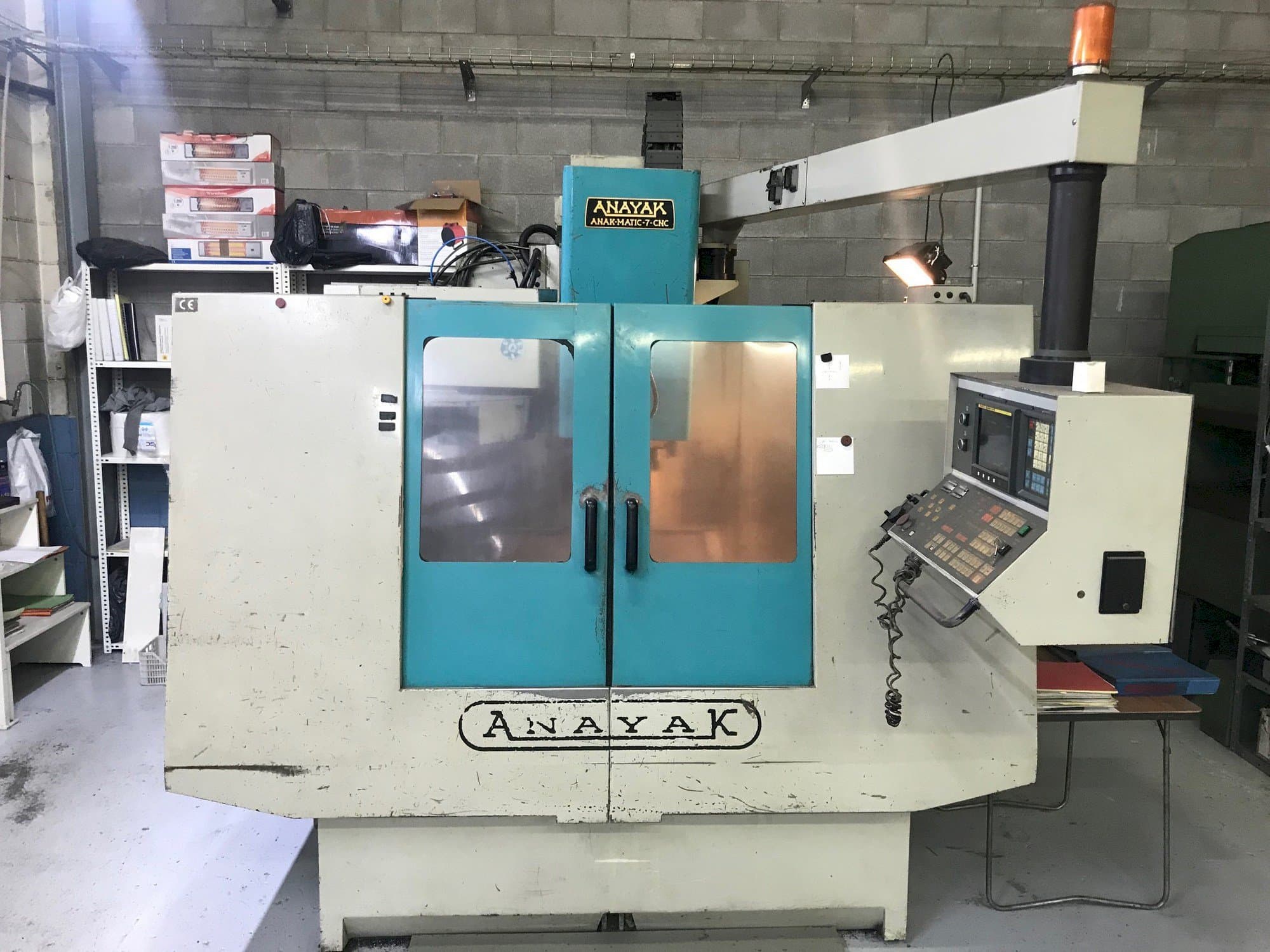

ANAYAK ANAKMATIC-7 Vertical Machining center

Show in original language

This ANAYAK ANAKMATIC-7 Vertical Machining center was manufactured in Spain in 1999. It shows 4710 working hours. This 3 axis machine is operated through a FANUC Series O-M control unit. It comes with a spindle speed range between 60 - 6000 rpm. It has had a weekly and exhaustive maintenance. Good status.

Overview

brand: ANAYAK
year: 1999
MODEL: ANAKMATIC-7
production hours: 4710
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - ANAYAK ANAKMATIC-7

General Data

Measurements width: 3000 mm
Measurements depth: 2400 mm
Measurements height: 2525 mm
Machine weight: 6000 KG

Control Unit

Model: Series O-M
CNC main language: ENGLISH
CNC language customizable: Yes
Brand: FANUC

Main drive

Spindle speed range: 60 - 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 450 MM
Z-AXIS Movement: 505 MM

Workpiece

Workpiece x: 800 MM
Workpiece y: 450 MM
Workpiece z: 505 MM
Workpiece weight: 500 KG

Table

Outer length: 950 mm
Outer width: 425 mm

Tools

Slots in storage: 20
Max weight: 6 KG
Max tool diameter: 150 MM
Max tool length: 250 MM

Media

Main electronic connection: 380V / 50Hz
Power consumption: 15 kVA

Additional Information

Machine history

Industries: Automotion

Machine Benefits

Qualitative Machine Benefits:
- - Good status
- - It has had a weekly and exhaustive maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
