ANAYAK ANAK MATIC-9 CNC Machining Center

Show in original language

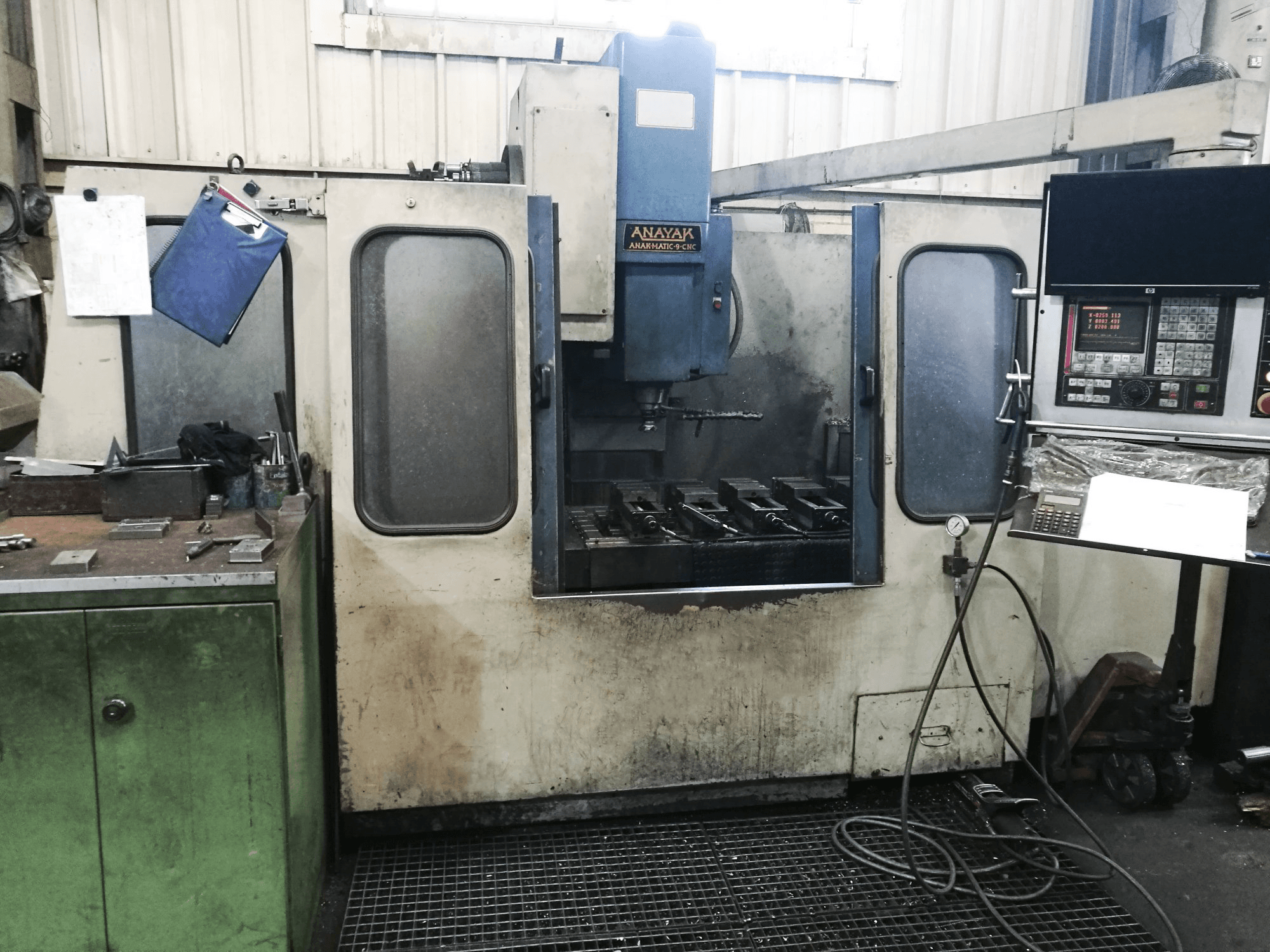

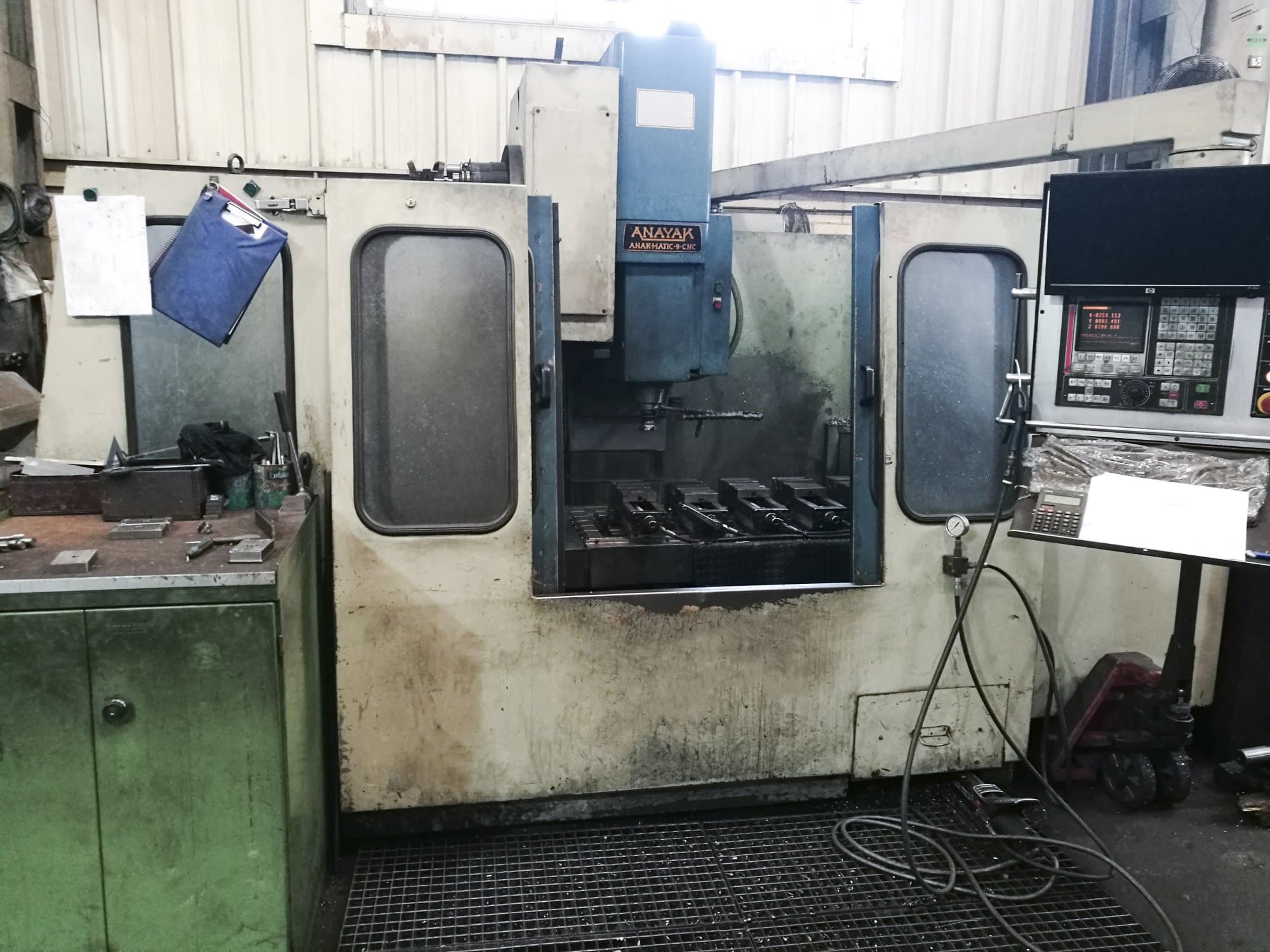

This ANAYAK ANAK MATIC-9 CNC is a Spanish Machining Center built in the year 1990 that has a production record of 25000 working hours. This machine is equipped with a Fagor 8025 control unit and is provided with additional tools. This machine had new telescopes installed and offers the possibility to install a 4th axis if needed.

Overview

brand: ANAYAK
year: 1990
MODEL: ANAK MATIC-9 CNC
production hours: 25000
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - ANAYAK ANAK MATIC-9 CNC

General Data

Measurements width: 3750 mm
Measurements depth: 2800 mm
Measurements height: 2400 mm
Machine weight: 6500 kg

Control Unit

Model: 8025
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min
Spindle motor power: 11 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1068 mm
X-AXIS Rapid traverse: 18000 mm/m
Y-AXIS Movement: 534 mm
Y-AXIS Rapid traverse: 18000 mm/m
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 18000 mm/m

Table

Outer length: 1300 mm
Outer width: 534 mm

Tools

Slots in storage: 20

Media

Main electronic connection: 380 V / 50 Hz
Chip conveyor: Yes

Additional Equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
