XYZ Mini Mill 560 Vertical machining center

Show in original language

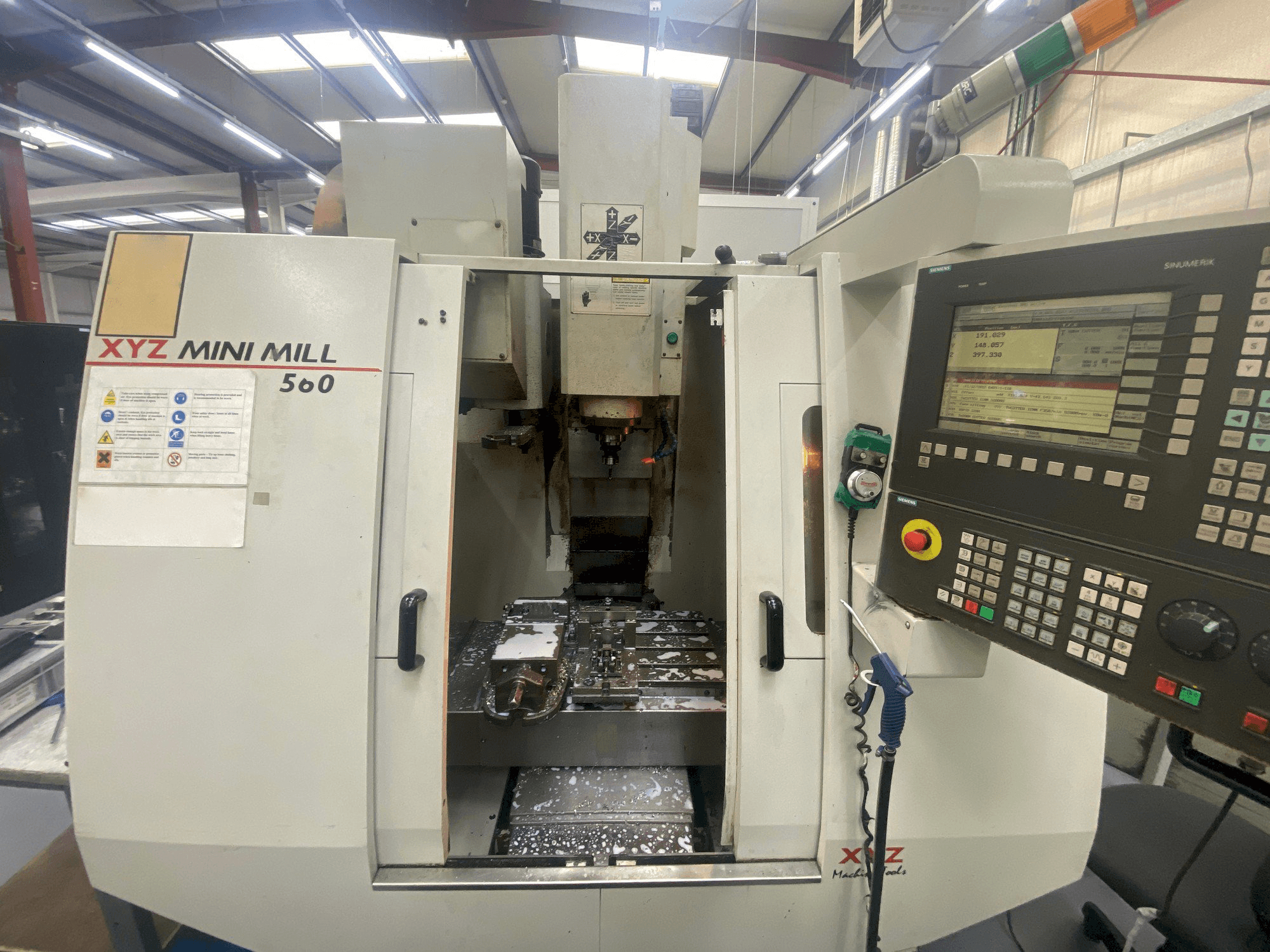

This XYZ Mini Mill 560 Vertical machining center was manufactured in Taiwan in 2006. It is equipped with a Siemens Sinumerik 810D Powerline control unit. This 3 axis machine works with a spindle speed up to 8000 rpm. It has been producing medical device parts. Very well maintained machine. Very good condition.

Overview

brand: XYZprinting
year: 2006
MODEL: Mini Mill 560
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - XYZprinting Mini Mill 560

General Data

Measurements width: 1800 mm
Measurements depth: 1900 mm
Measurements height: 2500 mm
Machine weight: 2750 KG

Control Unit

Model: Sinumerik 810D Powerline
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 610 mm
Outer width: 370 mm

Tools

Slots in storage: 16
Max weight: 8 KG
Type of tool holder: BT40

Media

Main electronic connection: 400V

Additional Information

Machine history

End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Technical Machine Benefits:
- - Very well maintained machine
- - Very good condition

Extra information

- Machine vice not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
