➤ Used WEMAS VZG 72 For sale | gindumac.com

Show in original language

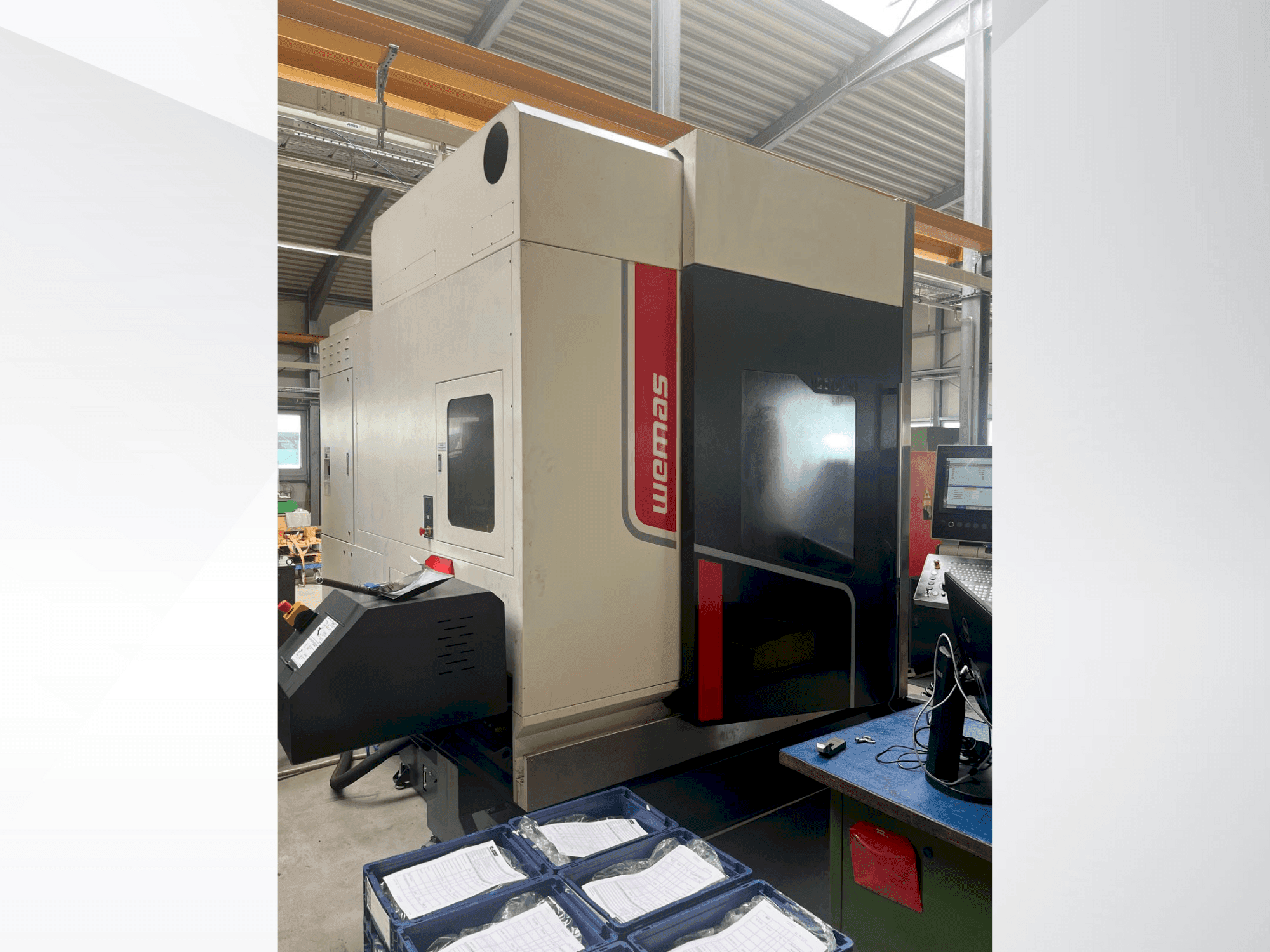

This 5-axis WEMAS VZG 72 vertical machining center was manufactured in 2019. It features a Siemens 840 D shopmill control, a spindle speed of 15,000 rpm, and an HSK 63 tool holder. With X/Y/Z travels of 720/600/520 mm and 60 tool positions, it also includes an IKZ system at 40 bar. Ideal for complex machining tasks. Contact us for further details regarding this vertical machining center.

Overview

brand: WEMAS
year: 2019
MODEL: VZG 72
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: Siemens

Technical Information - WEMAS VZG 72

Control Unit

Brand: Siemens
Model: 840 D shopmill

Main drive

Spindle motor power: 15000 rpm
Tool taper: HSK 63 A
Number of axis: 5

Movement

X-AXIS Movement: 720 MM
Y-AXIS Movement: 600 MM
Z-AXIS Movement: 520 MM

Table

Table load: 300kg

Additional Equipment

- Number of Tools: 60
- IKZ: Yes (40 bar)
- Blast air through spindle // 3D infrared measuring probe BLUM TC52"
- Coolant tank 240 l
- Table swivel b-axis -50°/+110
- Spindle nose table 150-670mm / pitch circle of the table top diameter 720mm
- Table clamping surface diameter720x540mm / table grooves 5 x 14 x 100mm
- Centering hole diameter 50mm
- Positioning accuracy +-0.006mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3000 spindle hours
- - Simultaneous 5-axis machining for complex geometries, high spindle speed for efficient machining
- - Suction nozzle diameter 200 mm
Qualitative Machine Benefits:
- - High precision with advanced control system, ample tool positions for versatile operations

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
