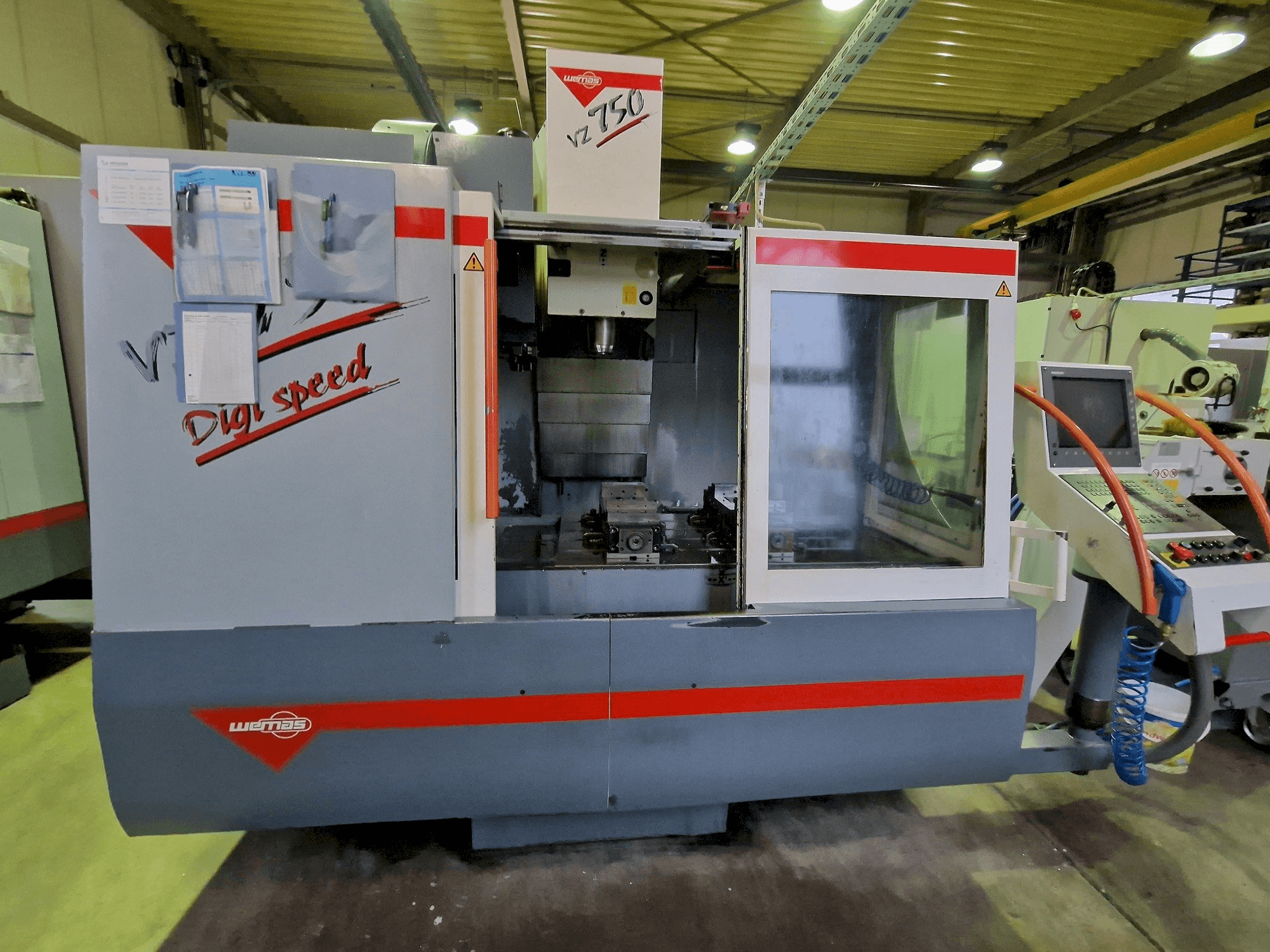

WEMAS VZ 750 Vertical Machining center

Show in original language

This WEMAS VZ 750 Vertical Machining center was made in 2003 and has new spindle with 20455 spindle hours. It is equipped with a HEIDENHAIN 530 control unit and has 3 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: WEMAS
year: 2003
MODEL: VZ 750
production hours: 20455
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - WEMAS VZ 750

Control Unit

Model: 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 11 kw
Number of axis: 3

Movement

X-AXIS Movement: 750 mm
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 45 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 45 m/min

Table

Outer length: 1000 mm
Outer width: 640 mm
Table load: 650 kg

Tools

Type of tool holder: HSK63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motor spindle
- - Scraper belt conveyor
- - Distance clamping surface - spindle nose: 149-649 mm
- - Max. Tool weight: 5100 kg
Qualitative Machine Benefits:
- - 2012 new spindle - 20455h
- - High speed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
