Welltec 320F2 Injection Moulding Machine

Show in original language

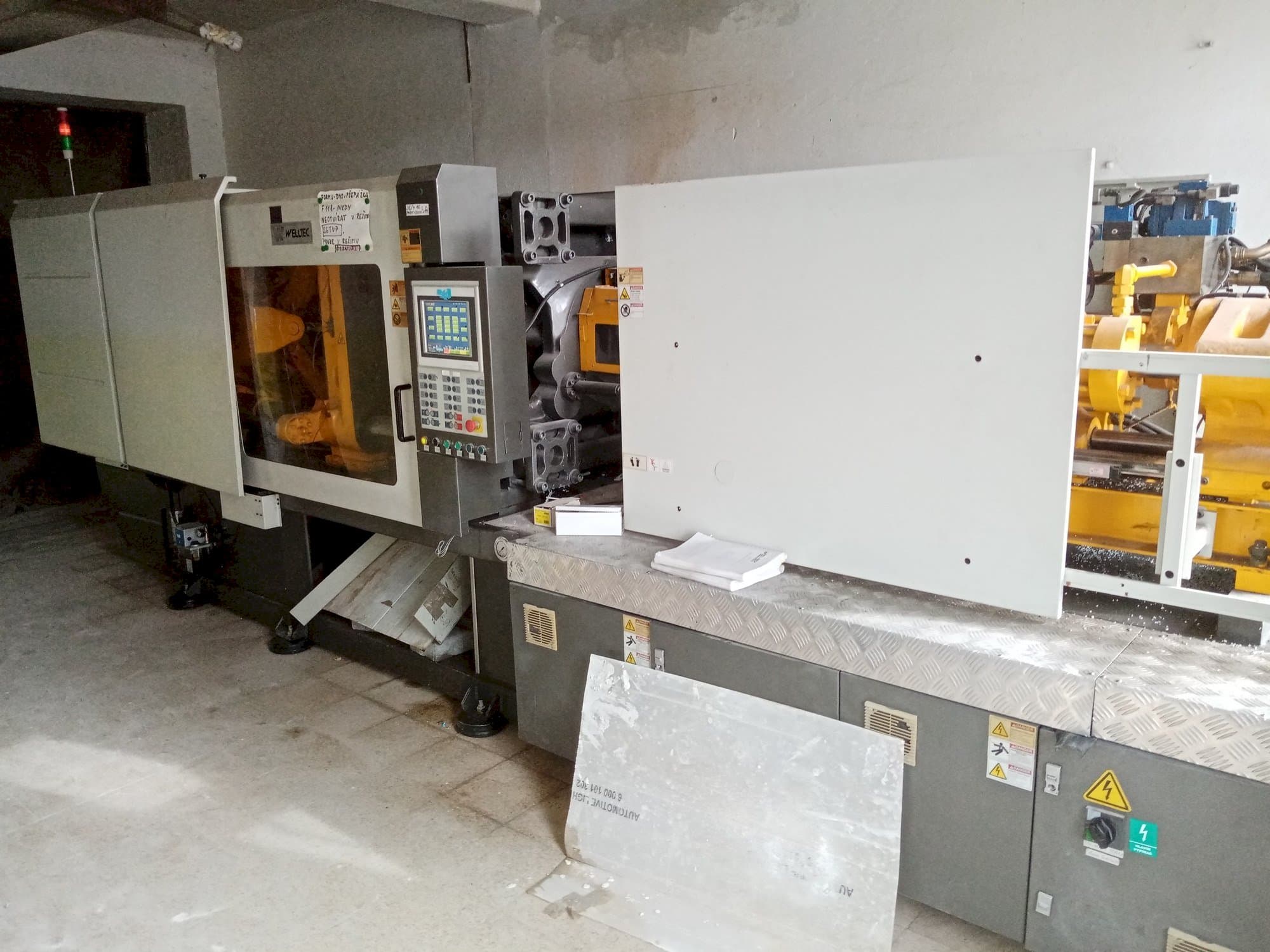

This Welltec 320F2 Injection Moulding Machine was manufactured in the year 2007. This machine incorporates clamping force of 3200 kN and a screw diameter of 60 mm.

Overview

brand: Welltec
year: 2007
MODEL: 320F2
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Welltec 320F2

General Data

Measurements width: 6030 mm
Measurements depth: 1494 mm
Measurements height: 2115 mm
Machine weight: 10800 kg

Injection Unit

Screw diameter: 60 mm
Shot weight: 702 g/PS
Stroke volume: 780 CM³
Injection pressure: 1680 bar
Heating capacity: 16,42 kW
Adjustable heating zones: 5+1

Clamping unit

Clamping force: 3200 kN
Opening stroke: 590 mm
Max open daylight: 1250 mm
Distance between bars: 660 x 660 mm
Mould height min: 460 mm
Ejector stroke: 180 mm
Ejector force for / back: 60 kN

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - In operation since 2010.
- - Very good condition, low hours.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
