➤ Used Krauss Maffei 250-1900 C2 For Sale | gindumac.com

Show in original language

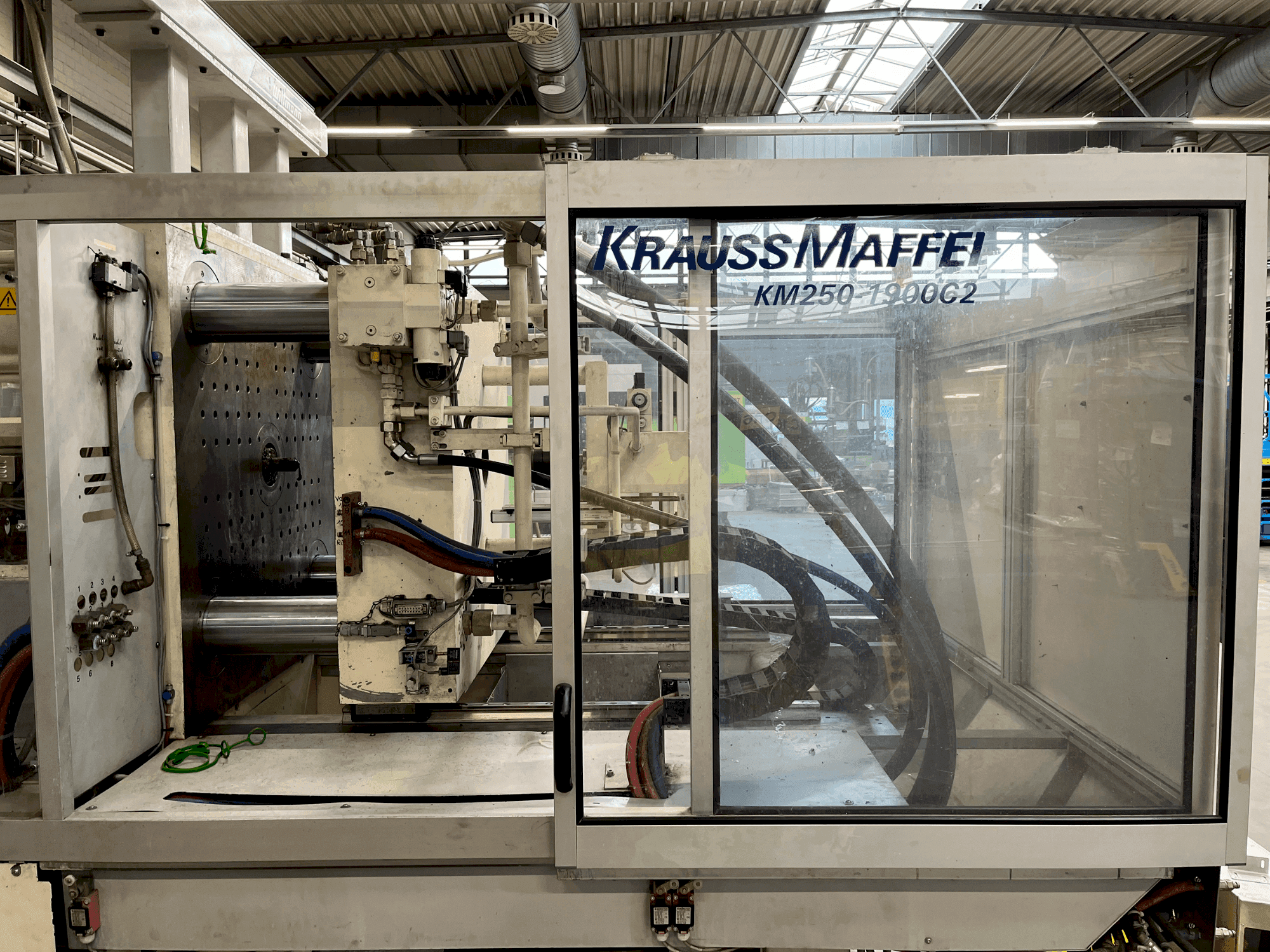

This Krauss Maffei 250-1900 C2 was manufactured in 2004. A robust hydraulic injection moulding machine, it features a clamping force of 250 tons and a maximum opening stroke of 820 mm. The tie bar spacing is 630 mm both horizontally and vertically. With over 84,224 operating hours, this machine has proven reliability and performance. If you are looking to get high-quality moulding capabilities, consider the Krauss Maffei 250-1900 C2 machine we have for sale. Contact us for more information.

Overview

brand: Krauss Maffei
year: 2004
MODEL: 250-1900 C2
production hours: 84224
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Krauss Maffei 250-1900 C2

Clamping unit

Clamping force: 250 tons KN
Opening stroke: 820 mm
Ejector stroke: 200 mm

Additional Equipment

- Core Pullers: Ejector Side: 2x (on the moving clamping plate)
- Connector - Core Pull Feedback (Ejector Side): Yes (counter-operating side)
- Connector - Ejector Plate Safety: Yes (counter-operating side)
- Tool Needle Shut-Off: Yes (single pneumatic or hydraulic)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between clamping plates: maximum 1150 mm / minimum 330 mm
- - Tie bar spacing (horizontal/vertical): 630 mm / 630 mm
- - Pull-out tie bars: no
- - Tool centering flange: nozzle side: 160h7 mm
- - Tool centering flange: ejector side: 160h7 mm
- - Horizontal injection unit screw: 60 mm
- - Nozzle radius (horizontal injection unit): 15 mm
- - Clearance diameter for nozzle in the mold, including heating band (horizontal injection unit): 180 mm
- - Machine bed width: 750 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
