➤ Used Weiler PRAKTIKANT VC Lathe For sale | gindumac.com

Show in original language

This 3-axis Weiler PRAKTIKANT VC lathe was manufactured in 2001. It features a swing diameter over the cross slide of 165mm, a turning length between centers of 650mm, and a spindle diameter in front bearing of 70mm. The machine offers a speed range of 30-4000 rpm, with a maximum chuck diameter of 200mm. Ideal for detailed and precise work, the Weiler PRAKTIKANT VC machine we have for sale represents a robust addition to any workshop. Contact us for further details.

Overview

brand: Weiler
year: 2001
MODEL: PRAKTIKANT VC
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Weiler PRAKTIKANT VC

General Data

Machine weight: 920 kg

Main drive

Number of spindles: 1
Spindle speed range: 30-4000 rpm 1/MIN
Tool taper: MK5
Number of axis: 2

Movement

X-AXIS Movement: 150 mm
X-AXIS Feed Force: 2500 N
Z-AXIS Movement: 650 mm
Z-AXIS Feed Force: 3500 N

Workpiece

Workpiece drm over bed: 320 mm

Tail Stock

Pinol tool taper: MK3

Additional Equipment

- Coolant Tank Dimensions: 1550 x 935 x 1550 mm.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter in front bearing: 70 mm
- - Spindle clearance: 40 mm
- - Swing diameter over cross slide with t-slots: 165 mm
- - Center height: 160 mm
- - Bed width: 205 mm
- - Guide length: 350 mm
- - Max chisel cross-section: 20 x 20 mm

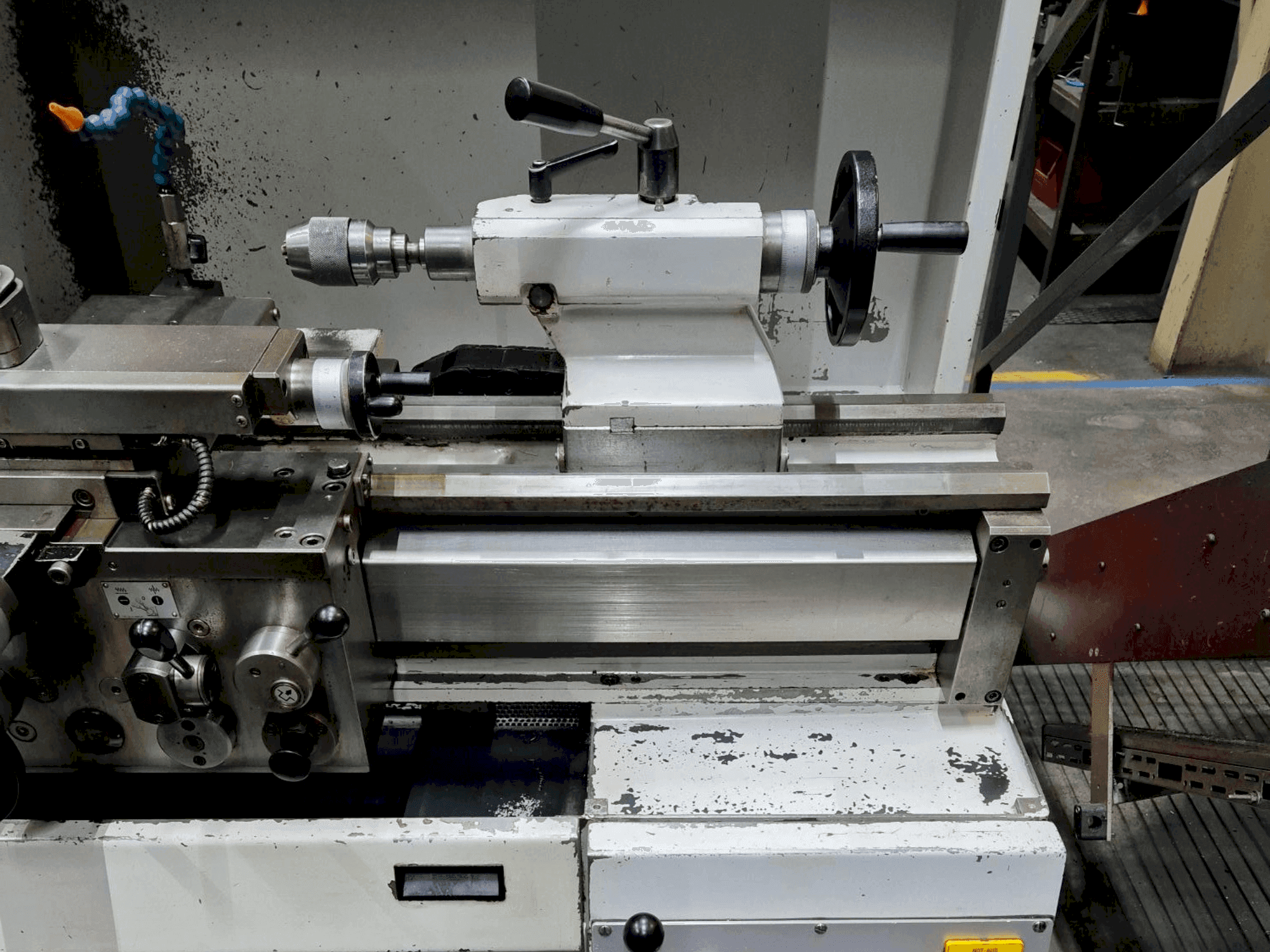

- - Quill stroke: 85 mm // quill diameter: 40 mm
- - Chuck diameter max: 200 mm //face plate max diameter: 250 mm
- - Versatile turning capabilities with a robust feed force.
Qualitative Machine Benefits:
- - Permissible workpiece dimensions: between centers without setting blocks 100 kg.
- - Precision and control with a cross slide featuring t-slot and adjustable angles.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
