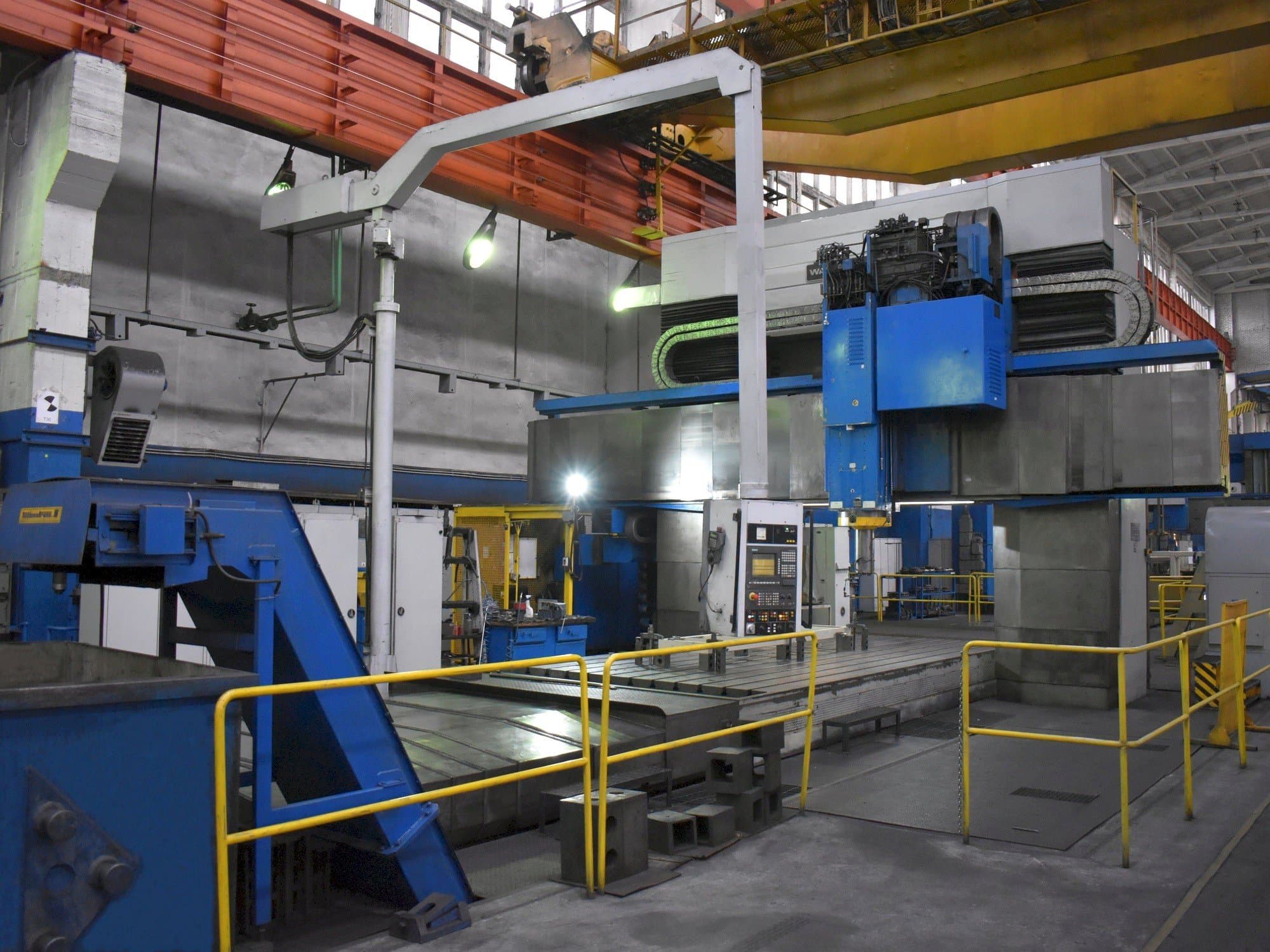

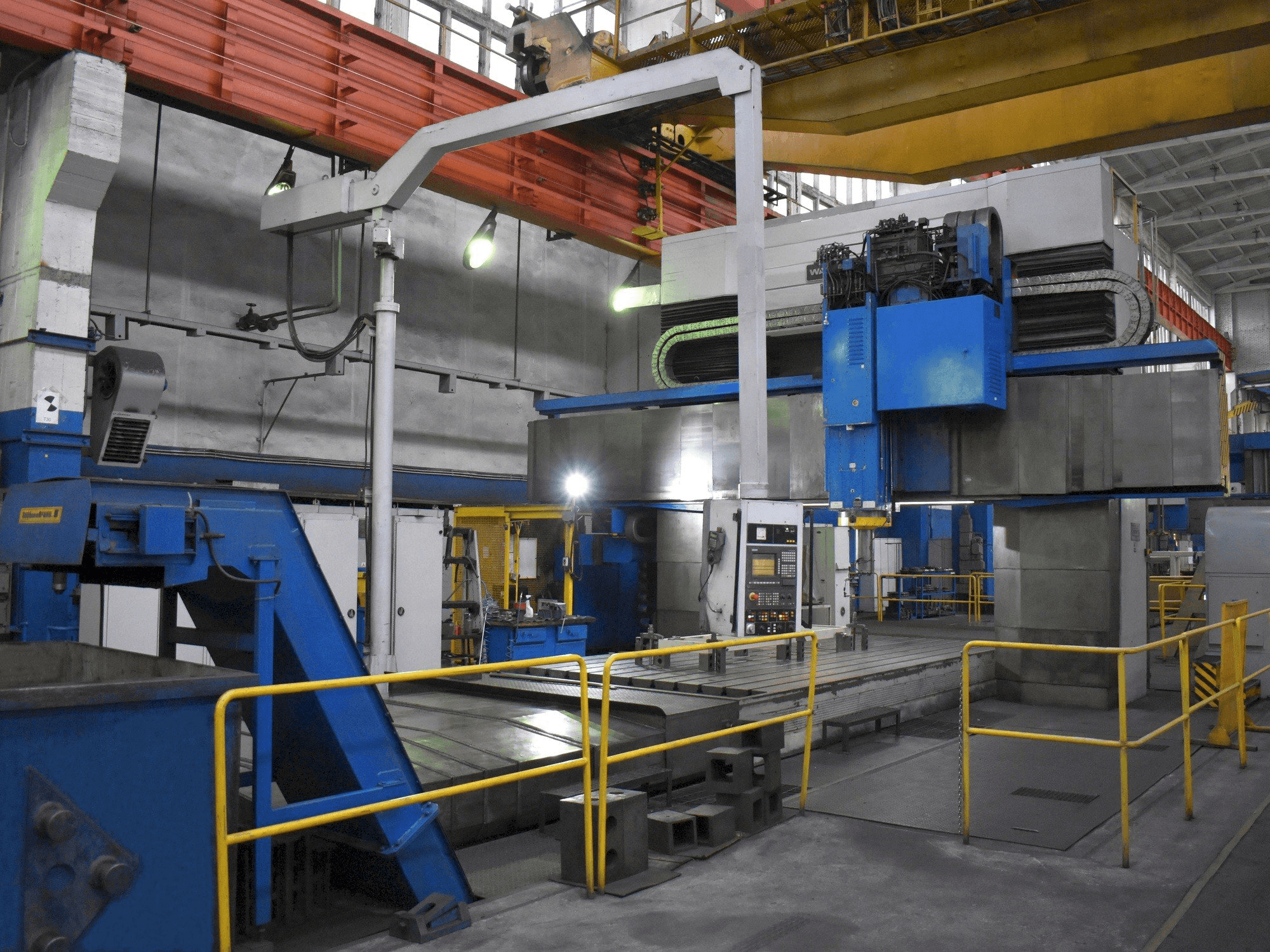

WALDRICH COBURG - 17S 10FP 300 NCPL-MIL-WAL-1989-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Height of table above floor: 500 mm
  • - Width of table: 3000 mm
  • - Length of fixed single table: 6000 mm
  • - Number of t-slots: 15, t-slot distance: 250 mm, t-slot width 28h8 mm
  • - Distance-between, stands = milling width: 3300 mm
  • - Maximum distance between the table and the end of the spindle when the spindle sled is retracted: 2500 mm
  • - Ranges, travel: table: 6700 mm, cross beam vertically: 2000 mm, milling slide spindle horizontally: 1000 mm
  • - Spindle diameter in the front bearing: 170 mm, max. Power of main drive motor 75 kw
  • - Spindle speed range: 1st gear stage 5 - 2000 rpm, 2nd gear stage 5 - 240 rpm, 3rd gear stage 10 - 480 rpm, 4th gear stage: 50 - 2000 rpm
  • - Tool holder iso 60, automatic tool clamping with collet
• Qualitative Machine Benefits:
  • - Automatic tool changing device:
  • - 1 chain magazine on the left side of the machine, iso 50 and iso 60 tool holder slots
  • - Distance between tool holder slots: 165 mm
  • - Double gripper jaws for permissible
  • - Permissible tool length 600 mm
  • - Permissible tool diameter 500 mm
  • - Tool shank iso 50 (collet)
  • - Tool shank iso 60 (collet)
  • - Tool feed to the main spindle, sockets and angle attachments
  • - Tool change is carried out on the left stand

Extra information

• - fully renewed in 2009. The machine is in very good working condition, ready for tests. Full documentation available.
