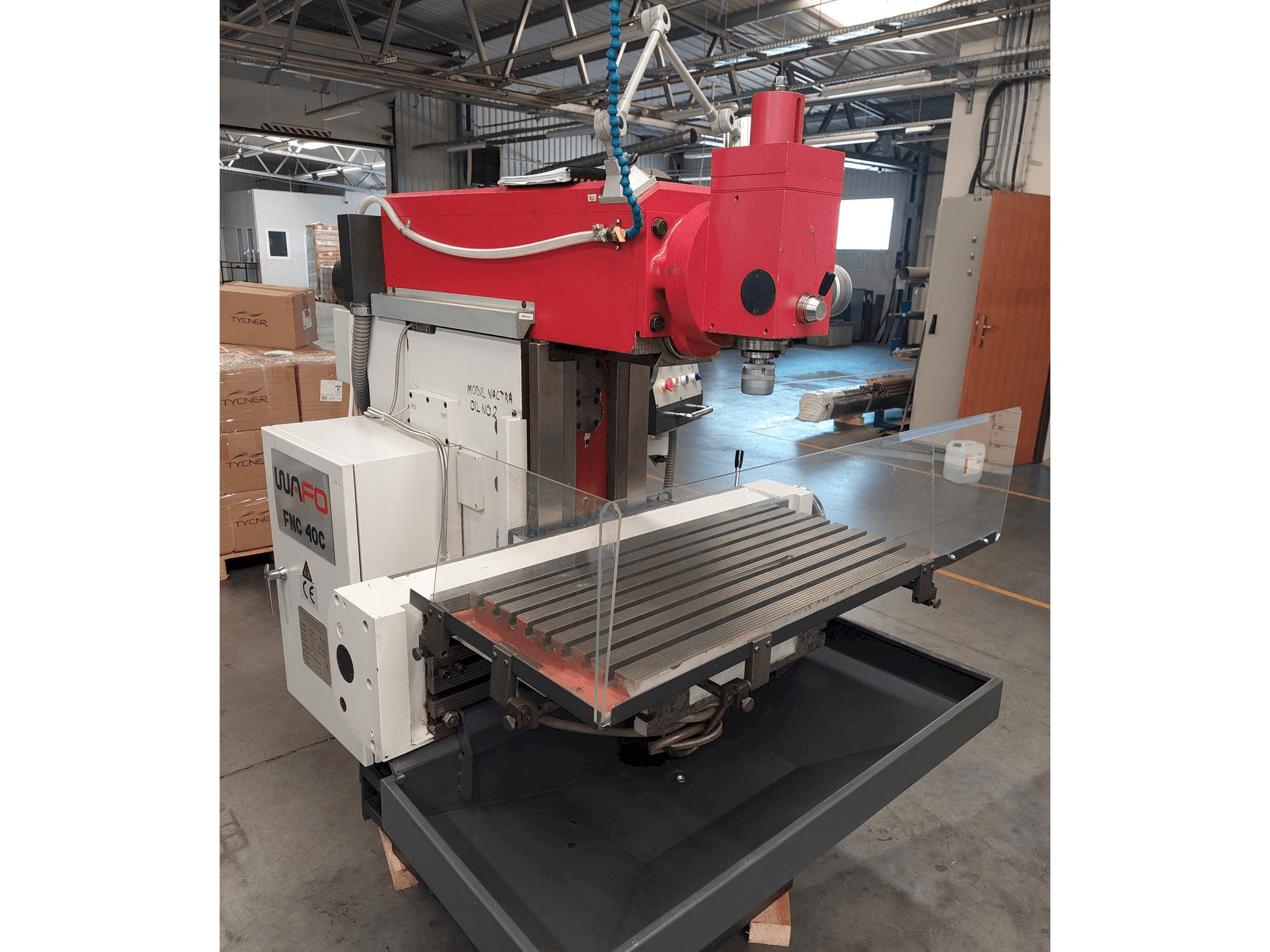

WAFO FNC 40C Universal Machining center

Show in original language

This WAFO FNC 40C Universal Machining center was manufactured in the year 2016 in Poland. It is equipped with an ARBAH-M RK-C control unit. The machine has a spindle speed of 2500 rpm.

Overview

brand: WAFO
year: 2016
MODEL: FNC 40C
application type: Milling
Location: Poland
machine type: Universal Machining Centre
availability: Sold

Technical Information - WAFO FNC 40C

General Data

Measurements width: 1820 mm
Measurements depth: 1640 mm
Measurements height: 1710 mm
Machine weight: 2300 kg

Control Unit

Model: RK-C

Main drive

Spindle speed range: 2000 1/MIN
Tool taper: ISO 40

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 400 mm

Tools

Max weight: 6 kg
Max tool diameter: 125 mm

Media

Main electronic connection: 3x400 / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Equipped with a vertical and horizontal spindle
- - Horizontal table: 400x800 mm
- - T-slots: 14x45
- - Vertical table: 250x950 mm
- - 18 feed speeds: 10-500 mm/min.
- - Vertical head pinole travel: 60 mm
- - Lighting lamp voltage: 24 v
Qualitative Machine Benefits:
- - The machine is nearly new, as it wasn't used in their production.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
