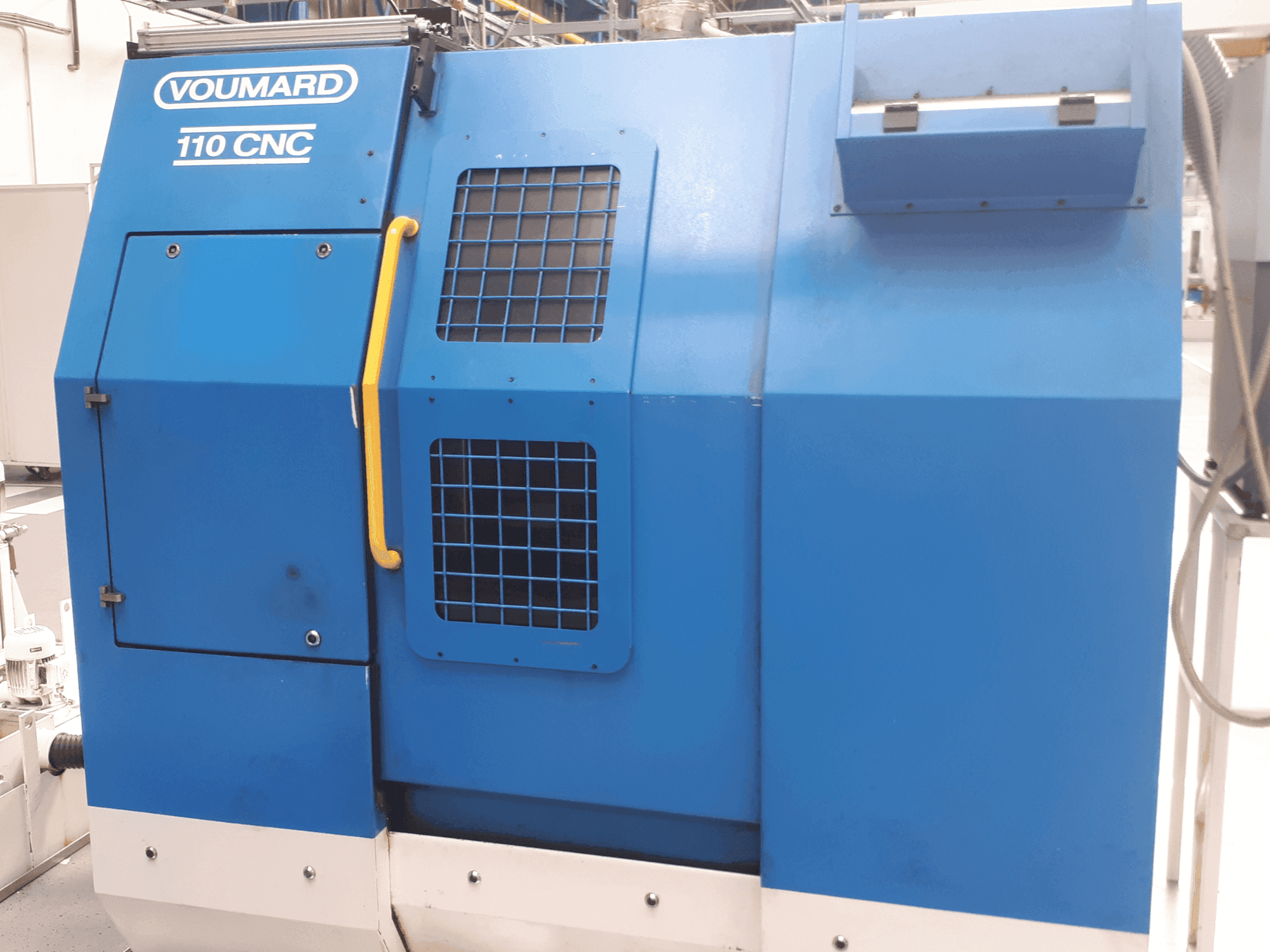

VOUMARD 110 CNC T Internal Grinding Machine

Show in original language

This VOUMARD 110 CNC T Internal Grinding Machine was built in the year 2008. It has a spindle speed of 1500 rpm, a turret radius of 400 mm and is operated by a GE FANUC 32i-model A control unit. Its turret positioning is -10/+30 degrees with an increment of 2 degrees. The machine comes with a max. workpiece diameter of 250 mm and a max. workpiece length of 160 mm.

Overview

brand: VOUMARD
year: 2008
MODEL: 110 CNC T
application type: Grinding
Location: Czech Republic
machine type: Internal Grinding Machine
availability: Sold
control unit brand: FANUC

Technical Information - VOUMARD 110 CNC T

Control Unit

Model: Series 32i-Model A
Brand: FANUC

Main drive

Spindle speed range: 1500 rpm 1/MIN
Spindle motor power: 2 kW

Movement

X-AXIS Movement: 220 mm
Y-AXIS Movement: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turret radius 400 mm
- - Turret positioning -10/+30 degrees, increment 2 degrees
- - Spindle speed 1500 rpm // power 2 kw
- - Max. Workpiece diameter 250 mm
- - Max. Workpiece length 160 mm
Qualitative Machine Benefits:
- - The machine has been out of operation for a month, otherwise it was only used in one-shift operation
- - The highest spindle speed is 120,000 r/min
- - As a standard, parts with a tolerance of up to 0. 002 µm were produced and were kept to 0. 001 (protocol available upon request)

Extra information

- It has standard axes: X, Z, B, C. It doesn't have the optional Y axis.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
