➤ Used KUHLMEYER Fasen Fix 4.1-1500 | Grinder For Sale

Show in original language

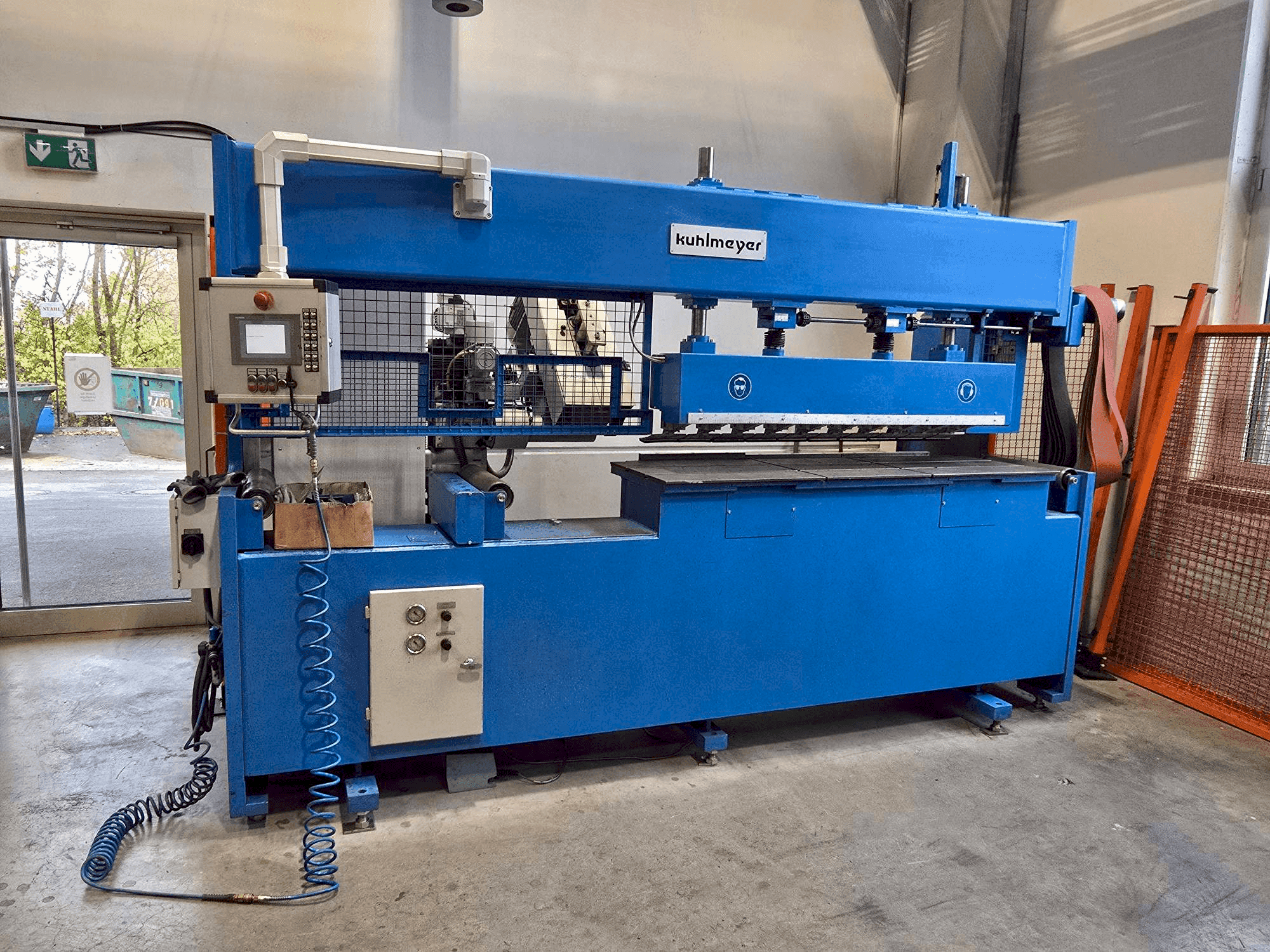

This 3-axis KUHLMEYER Fasen Fix 4.1-1500 grinding machine was manufactured in 2012. It is designed for precision grinding applications, offering robust performance and reliability. If you are looking to get high-quality grinding capabilities, consider the KUHLMEYER Fasen Fix 4.1-1500 machine we have for sale. Contact us for more information.

Overview

brand: KUHLMEYER
year: 2012
MODEL: Fasen Fix 4.1-1500
application type: Grinding
Location: Germany
machine type: Grinding Machine
availability: Immediately

Technical Information - KUHLMEYER Fasen Fix 4.1-1500

Main drive

Number of axis: 3

Additional Equipment

- Sanding Unit/Sanding Belt: 120 x 2300 mm/Drive Power: 7.5 kW/Belt Tension: Pneumatic/Oscillation Range: 10 - 80 mm for optimum belt utilization and cooling/Removal Rate: Approx. 80 cm³/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Application: for moving longer workpieces with open side supports for seam preparation before welding.
- - Working length: 1500 mm
- - Machine table length: 1500 mm/equipped with t-slots for attaching gauges or other devices.
- - Clamping force: motorized adjustment for workpiece thickness: 3 - 80 mm/clamping width: 150 mm with rubber pressure bars for tolerance compensation/clamping force: 110 kp per clamp at 6 bar, complies with safety regulations.
- - Feed speed: 0. 5 - 5 m/min (return speed: 10 m/min)/cross support: motorized adjustment for horizontal and vertical axes/angle adjustment: 0° to +60° via pivot bearing
- - Swiveling control panel with simatic multi panel touch
- - Keypad for setting x, y and z axes, feed speed, oscillation path, etc.
- - Display of energy consumption depending on the removal rate

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
