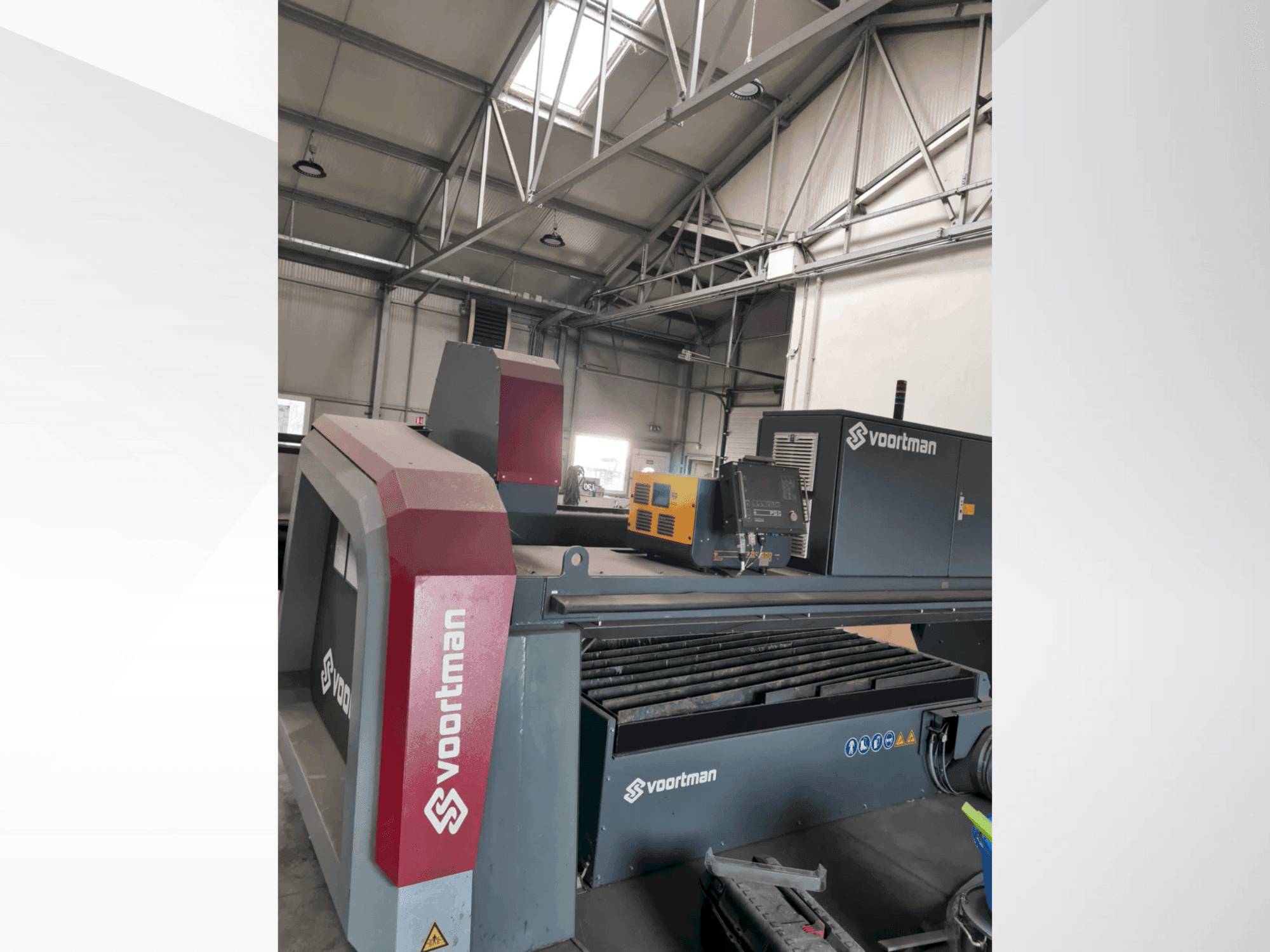

VOORTMAN - V304HU-CUT-VOO-2015-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Power per servo drive: 26 kw
  • - Acceleration: 1000 mm/s²
  • - Maximum pierce capacity: 40 mm
  • - Dross-free cutting (maximum): 35 mm
  • - Marking lines: yes, with the same consumables
  • - Plasma gas (mild steel): cutting: o₂ (999% pure, clean, dry, oil-free); marking: argon gas or o₂/air (999% pure, clean, dry, oil-free)
  • - Shield gas (mild steel): yes
  • - Automatic gas console: yes
  • - Cutting speed for mild steel is approximately 3700 mm/min at 90a for 6 mm, 3600 mm/min at 200a for 12 mm, 1600 mm/min at 300a for 25 mm, 720 mm/min at 300a for 40 mm, 400 mm/min at 300a for 50 mm, and 100 mm/min at 300a for 80 mm
  • - Grounding: maximum 6 m of the machine. Ac power, pe, and service grounds must comply with local and national codes.
• Qualitative Machine Benefits:
  • - The plasma 3d bevel unit has a maximum acceleration of 2000 mm/s² on the z-axis, a maximum speed of 365 mm/s on the z-axis, a bevel angle of ±50° depending on the torch type, a positioning accuracy of ±0. 5°, and supports material thicknesses of 6–50 mm.
  • - The oxy-fuel cutting unit is a nozzle mix type with a magnetic valve and backfire protection for gas supply, automatic external ignition, a maximum thickness of 200 mm for 1 or 2 pieces, 125 mm for 3 pieces, 100 mm for 4 pieces, 75 mm for 5 pieces, and 60 mm for 6 pieces, using acetylene gas as standard, propane as an optional gas, and o₂ as the cutting gas.
  • - The voortman height control has a maximum acceleration of 2000 mm/s² on the z-axis and a maximum speed of 365 mm/s on the z-axis.
  • - Voltage stabilizer: not included
  • - Ambient temperature: 0–35°c, max. 95% relative humidity
  • - Working height: 705 mm (±20 mm)
  • - Working height: 705 mm (±20 mm)

Extra information

• - Machine still under power
