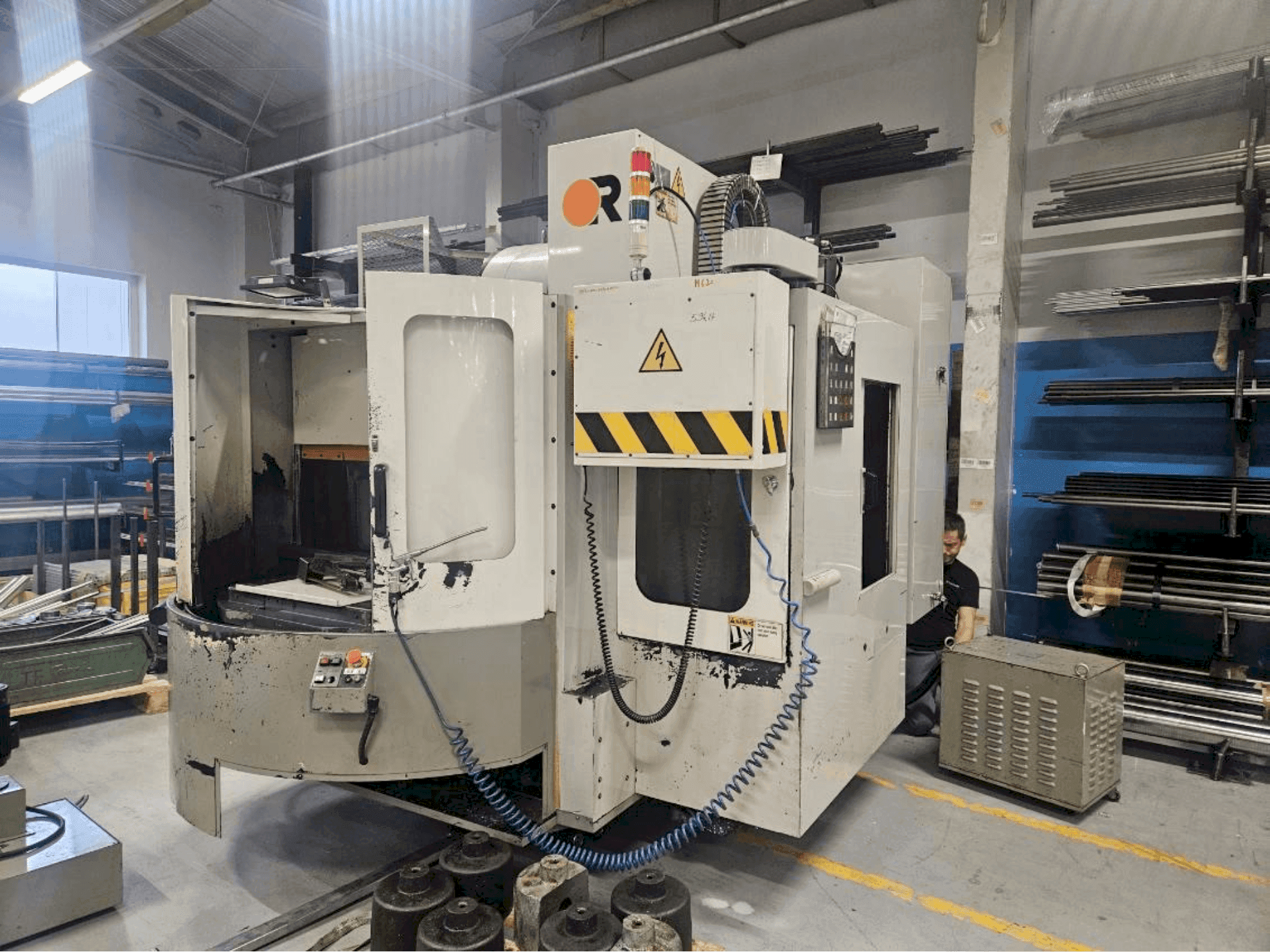

Victor - Vcenter 70 - APCSI-MIL-VIC-2004-00001

Additional Equipment

• - Automatic tool changer
• - Tool magazine capacity: 24 / Tool selection system: Random bi-directional / Tool diameter, maximum: 76 mm / Tool length, maximum: 250 mm / Tool weight, maximum: 7 kg
• - Spindle tooling: BT.40 / Tool change time: 2.5 sec
• - Rigid tapping / Flood coolant system / Totally enclosed guarding / Automatic Power Off system / Automatic lubrication system
• - Centralised pendant operation panel / Built-in work light / Levelling blocks / Tool box and hand tools / Warning light
• - Operating manual, parts list, Fanuc manuals / Coolant flush on bottom guarding / Air conditioner for electrical cabinet / Spindle oil cooler (Habor)
• - Chip conveyor & cart - left disposal / Oil Skimmer / Handy coolant gun (Shower gun) / Tool length measurement (Renishaw TS-27R)
• - Coolant Tank capacity: 100 litres / Pump delivery rate: 80 litres / Pump motor: 1/4 hp / Hydraulics Tank capacity: 30 litres / Pressure Maximum: 35 Kg/sq.cm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Rapid traverse rate x/y/z: 30/30/24 m/min / cutting feed rate: 1-5000 mm/min
  • - Floor space required: 1950 x 2020 mm
  • - Overall machine height: 2715 mm
  • - Electrical: 415 volt, 3 phase, 50 cycles 40 amp line service
  • - Air: 80 psi min, 1/2" air supply line min
