VHF - CAM 1020 PremiumAT-MIL-VHF-2016-00001

Name: VHF CAM 1020 Premium
Brand: VHF
SKU: AT-MIL-VHF-2016-00001
Price: 20150 GBP
Availability: InStock

£ 20,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used VHF CAM 1020 Premium For Sale | gindumac.com

Show in original language

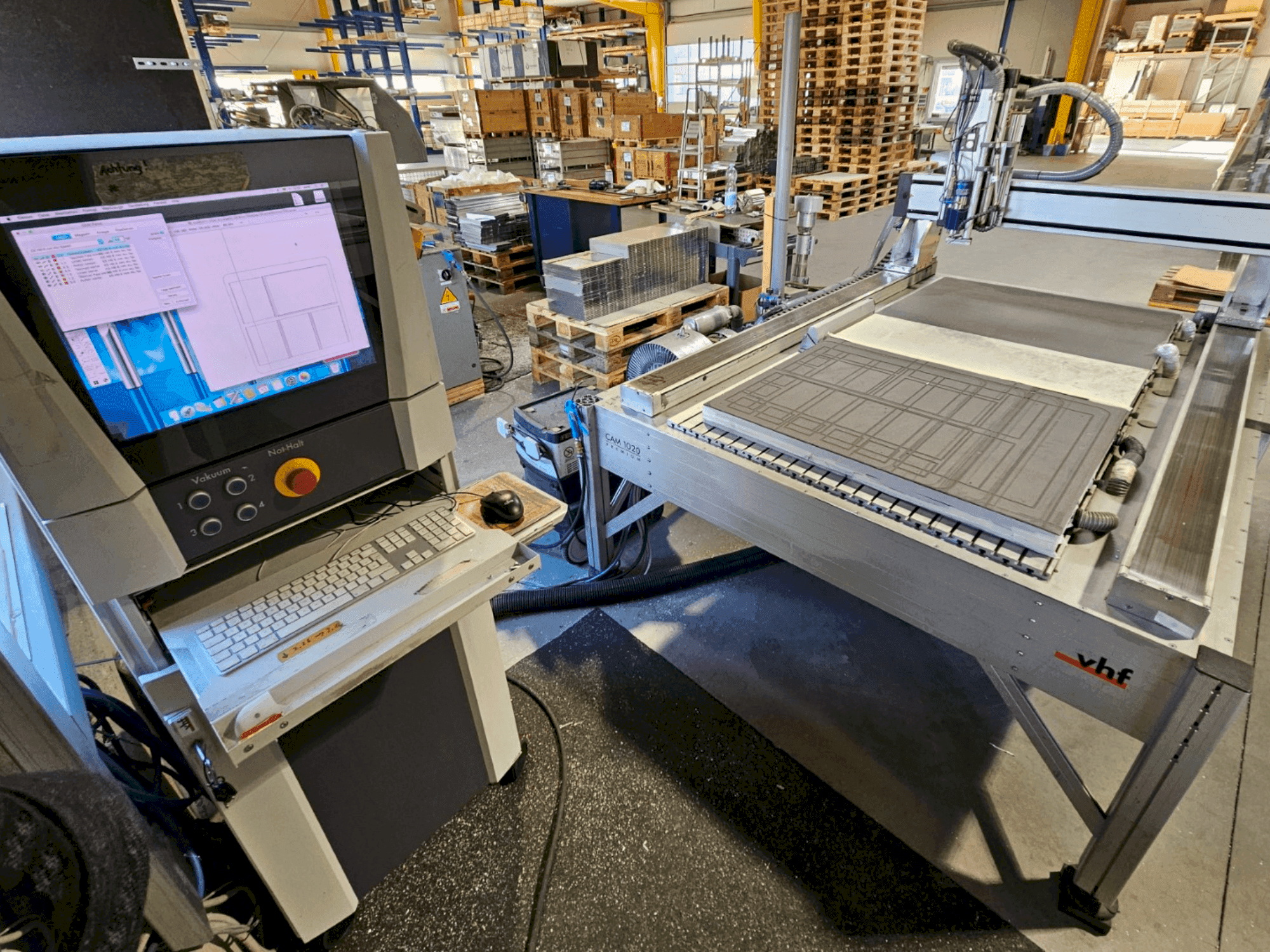

This 4-axis VHF CAM 1020 Premium was manufactured in 2016, featuring a robust four-axis flatbed mechanism with a traverse range of 1050x2010mm and a clamping range of 1100x2300mm. It includes a high-performance SF spindle SF 1300P capable of speeds up to 60,000 rpm and a tool changing station for 9 tools. Ideal for precision CNC milling, consider the opportunity to buy this VHF CAM 1020 Premium CNC milling machine. Contact us for more information about this machine.

Overview

brand: VHF
year: 2016
MODEL: CAM 1020 Premium
production hours: 2500
application type: Milling
Location: Austria
machine type: CNC Milling Machine
availability: Immediately
control unit brand: MicroStep

Technical Information - VHF CAM 1020 Premium

General Data

Machine weight: 600 kg

Control Unit

Brand: MicroStep
Model: CNC 980+

Main drive

Number of axis: 4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X/y traverse range: 1050x2010mm
- - X/y clamping range: 1100x2300mm
- - T-slot table
- - Special vacuum table 2000x1000mm with 8 vacuum modules 500x500x63mm
- - Sf 09/40 tool changing station for 9 tools with stop ring up to 6mm shank diameter
- - Pneum. Protective cover for ww-sh-sf 09/40

Extra information

- Extra Information Estimated production hours: Approx. 2500 hours Separate emergency stop button Complete cable set Base frame Passage: 300mm Stroke: 290mm Bridge reinforcement CAM 10xx Axle cover CAM xx20 SF spindle SF 1300P: Continuous power: 1300W, max. output power: 2500W, speeds up to 60000 rpm, clamping range 2-6mm Pneumatic clamping cylinder Frequency inverter SFU0303(401D) Compressor cooling unit Spindle carrier with cooling fins Collets: 3, 4, and 6mm Universal dust extraction device with earthed suction pipe without suction unit Minimum quantity lubrication MKS-4L: finely adjustable, electronically controlled system with two nozzles Automatic Z-adjustment Control panel System cabinet for control components CENON CAM software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
