UNITECH VMC-1250P3 Vertical Machining Center

Show in original language

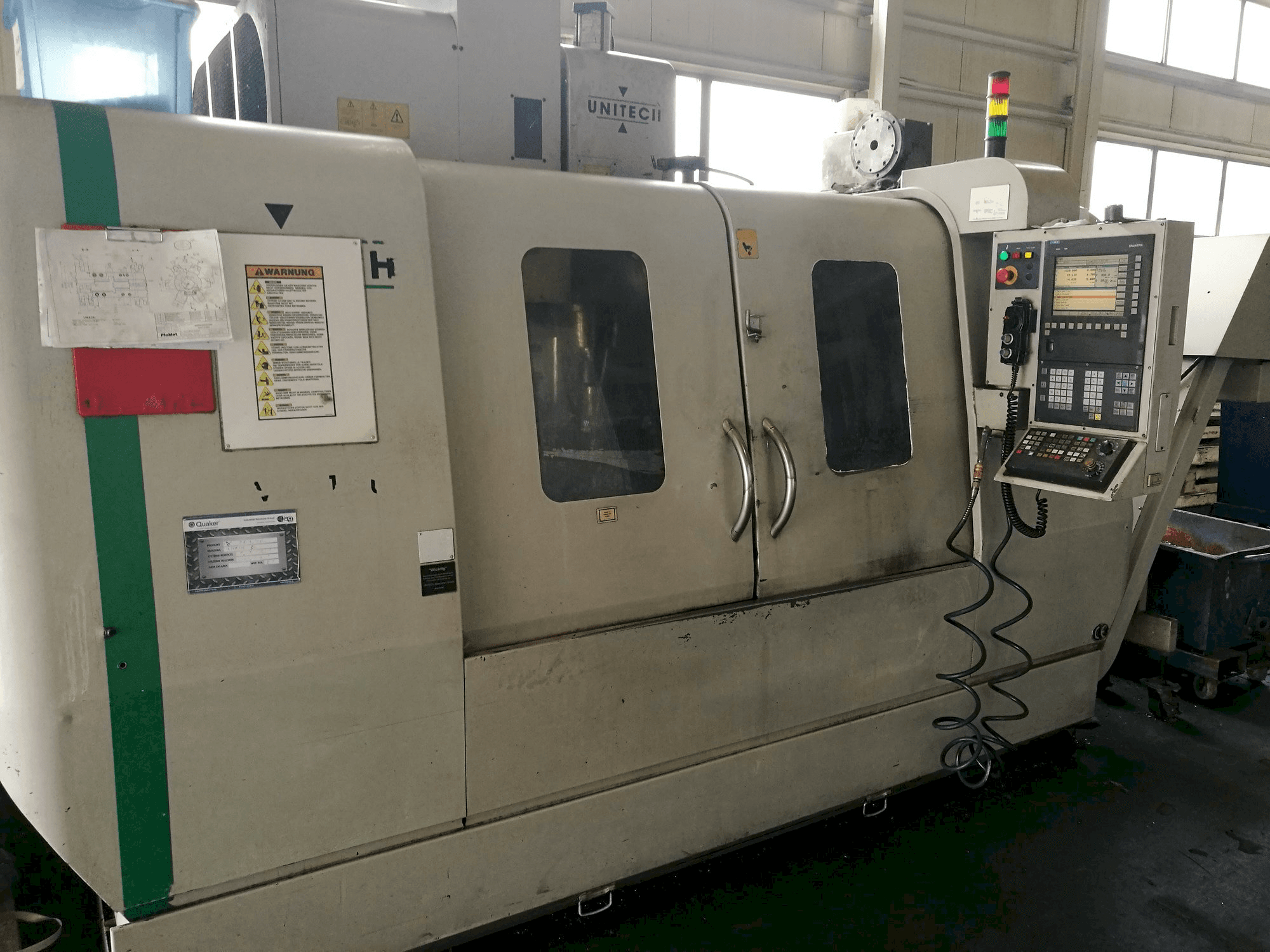

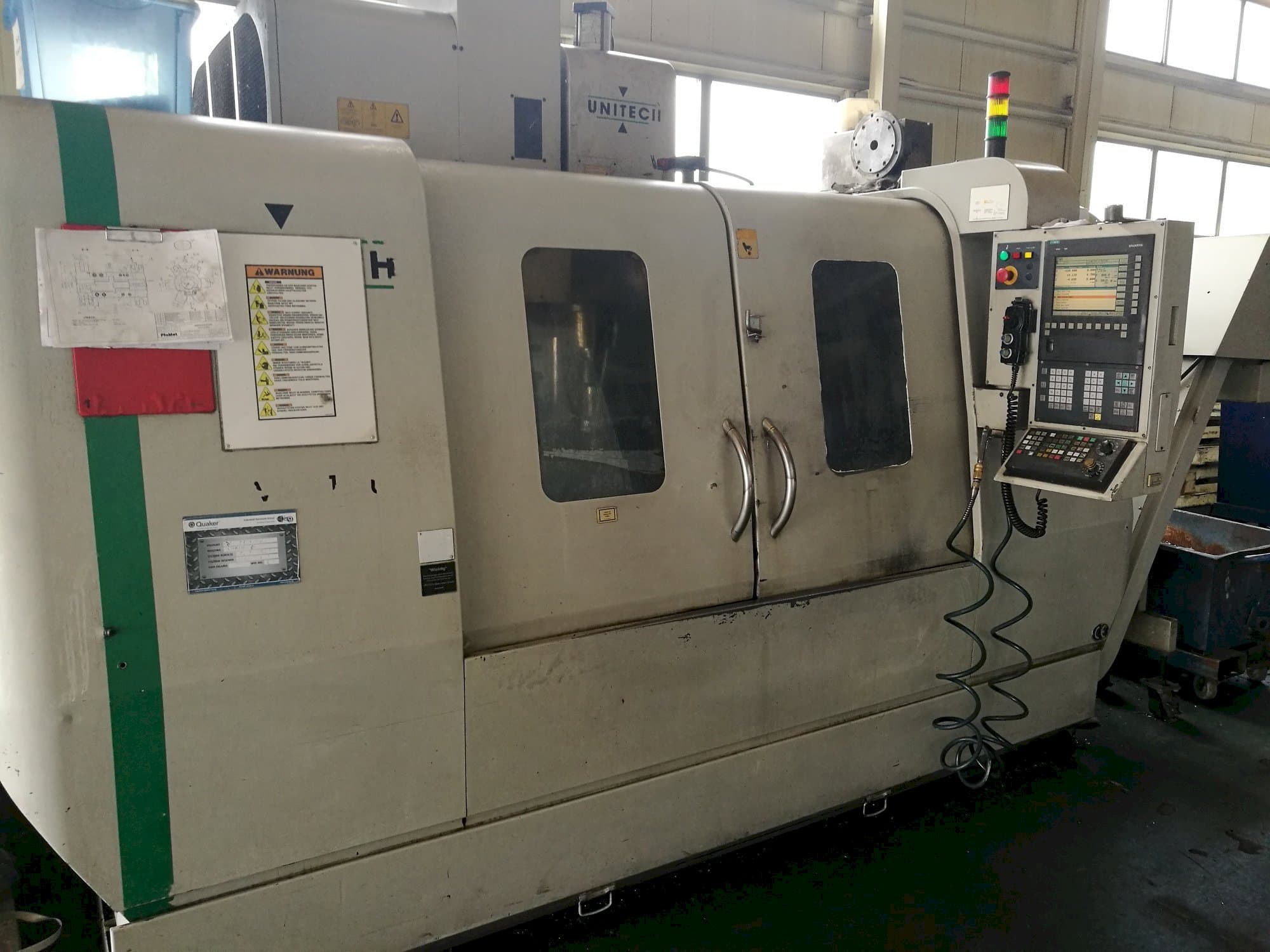

This UNITECH VMC-1250P3 Vertical Machining Center was manufactured in the year 2005 in Germany. It has been working for 65960 hours. It is operated through a SIEMENS SINUMERIK 810D control unit. This machine can work with 3 axis and has a 4th additional axis mounted on the table.

Overview

brand: UNITECH
year: 2005
MODEL: VMC-1250P3
production hours: 65960
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - UNITECH VMC-1250P3

General Data

Measurements width: 3900 mm
Measurements depth: 2520 mm
Measurements height: 2850 mm
Machine weight: 7500 kg

Control Unit

Model: SINUMERIK 810D
Brand: SIEMENS

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 1370 mm
Outer width: 660 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 46 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material thickness: Mm

Machine Benefits

Technical Machine Benefits:
- - Additional 4th axis mounted on the table
- - Tool storage capacity 20 pcs
- - Automatic tool change
- - Spindle sk40
- - Electronic knob
- - Tool storage with atc
Qualitative Machine Benefits:
- - In 2018 the lead screws of all axes were regenerated and bearings with lead nuts replaced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
