➤ Used Unisign UNIPORT 6000 For Sale | gindumac.com

Show in original language

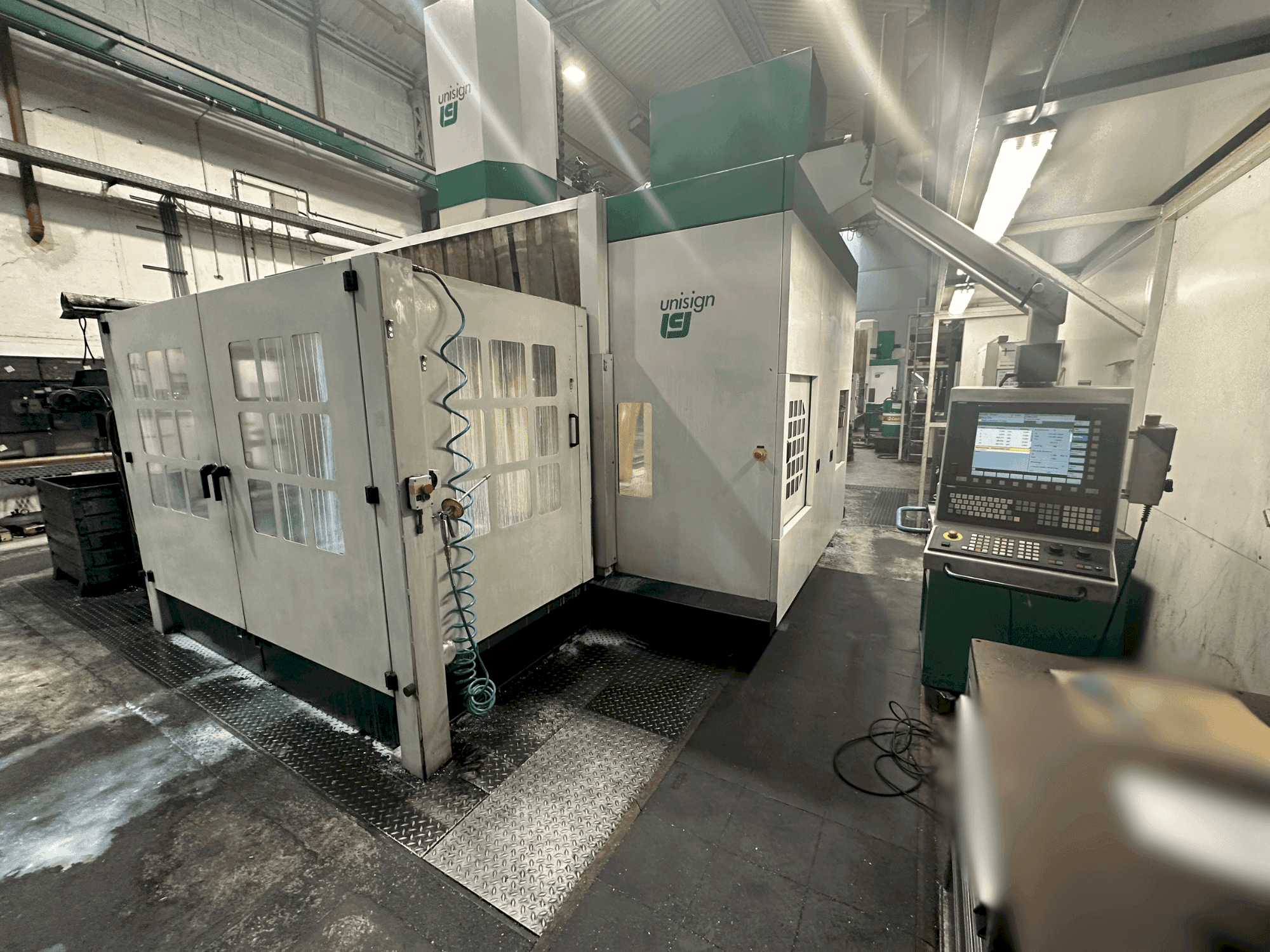

This Unisign UNIPORT 6000 was manufactured in 2005. A robust universal machining center, it features a large work area with X-axis travel of 3,000 mm and Y-axis travel of 2,500 mm. It boasts rapid traverse speeds up to 30,000 mm/min and a high-capacity tool magazine with 30 positions. The spindle supports up to 6,000 RPM and 36 kW power, making it ideal for heavy-duty machining. For more information about this universal machining center, please reach out to us.

Overview

brand: Unisign
year: 2005
MODEL: UNIPORT 6000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Immediately

Technical Information - Unisign UNIPORT 6000

General Data

Measurements width: 6400 MM
Measurements depth: 8000 MM
Measurements height: 4400 MM
Machine weight: 45000 KG

Main drive

Spindle speed range: 1 - 6000 1/MIN
Spindle motor power: 36 kW (S6-40%), 26 kW (100%)
Tool taper: HSK 100

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 5 - 30,000 mm/min
X-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Movement: 2500 mm
Y-AXIS Working Feed: 5 - 30,000 mm/min
Y-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Movement: 1000 mm
Z-AXIS Working Feed: 5 - 30,000 mm/min

Table

Outer length: 2000 mm
Outer width: 2170 mm
TSlots size: 22H9
Distance between: 250 mm
Table load: 1500 kg

Tools

Slots in storage: 30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max torque: 720 nm
- - Max drilling pressure: 16000 n
- - Tool change time: 10 seconds
- - Positioning tolerance: ±12 µm
- - Repeatability: ±8 µm
- - Electrical connection: 400 v / 3 ph / 50 hz
- - Power consumption: 55 kva
- - Compressed air: 6 bar, 20 l/min
- - Interference circle: 2500 mm
- - Max. Load on the faceplate: 10 tons
Qualitative Machine Benefits:
- - Positioning accuracy: ±0. 001° (c-axis drive)
- - Repeatability: ±0. 0005° (c-axis drive)
- - Measurement system: direct (presumably rod type)
- - Maximum speed: 10 min⁻¹

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
