Trumpf Trumatic L4030 Laser Cutting Machine

Show in original language

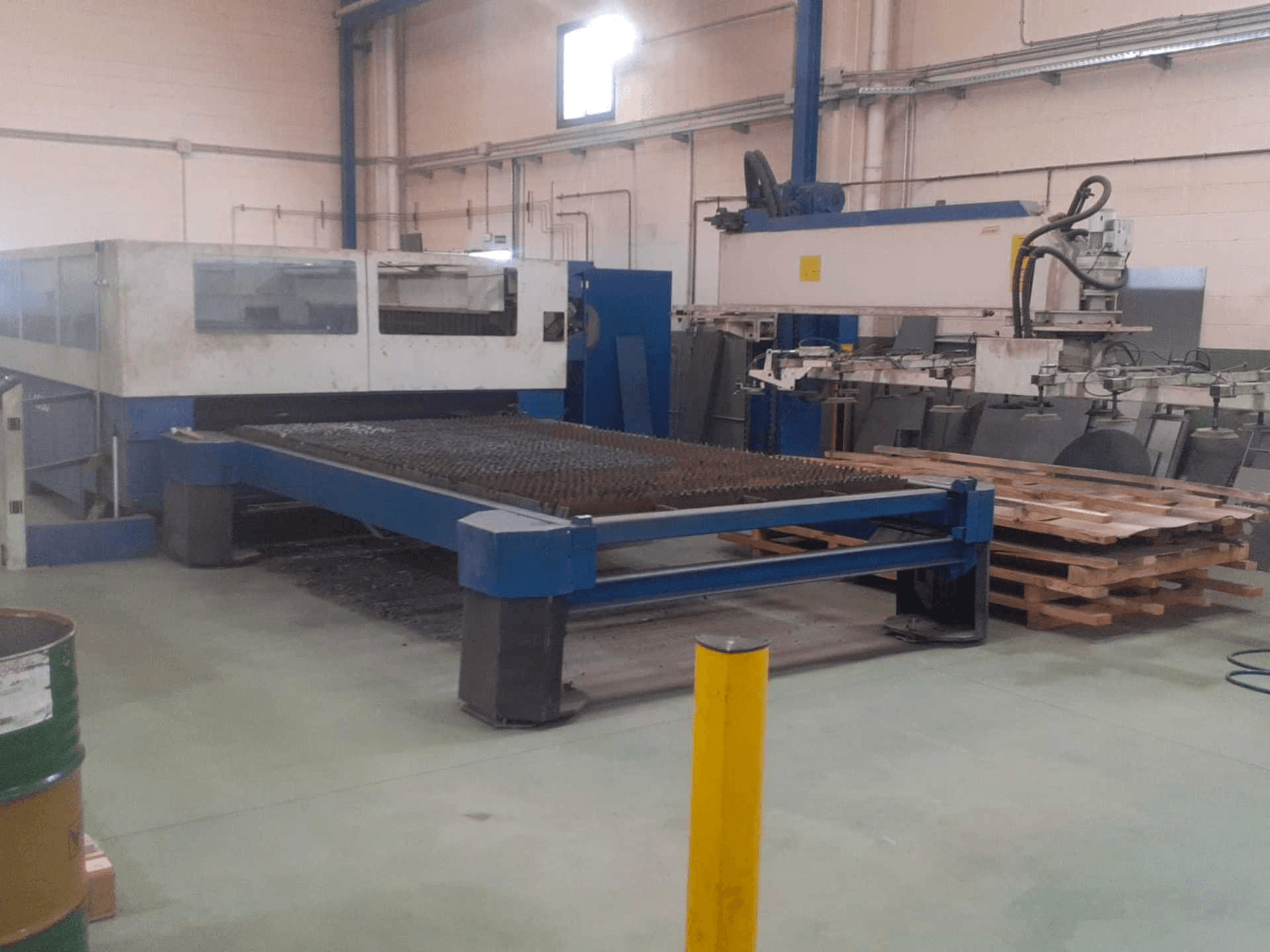

This Trumpf Trumatic L4030 Laser Cutting Machine was built in the year 2000 in Germany. It has 80816 laser on hours, of which 69840 are rayo on hours. It is equipped with a SIEMENS SINUMERIK 840D control unit. This machine counts with a 4kW laser power and includes the loadmaster.

Overview

brand: TRUMPF
year: 2000
MODEL: Trumatic L4030
production hours: 80816
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L4030

General Data

Measurements width: 11500 mm
Measurements depth: 6000 mm
Measurements height: 2000 mm
Machine weight: 16000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 4 kw
Laser type: CO2

Movement

X-AXIS Movement: 4150 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 2140 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 117 mm

Workpiece

Workpiece x: 4000 mm
Workpiece y: 2000 mm

Media

Main electronic connection: 400 v / 50 hz
Power consumption: 88 kva

Additional Equipment

- loadmaster

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
