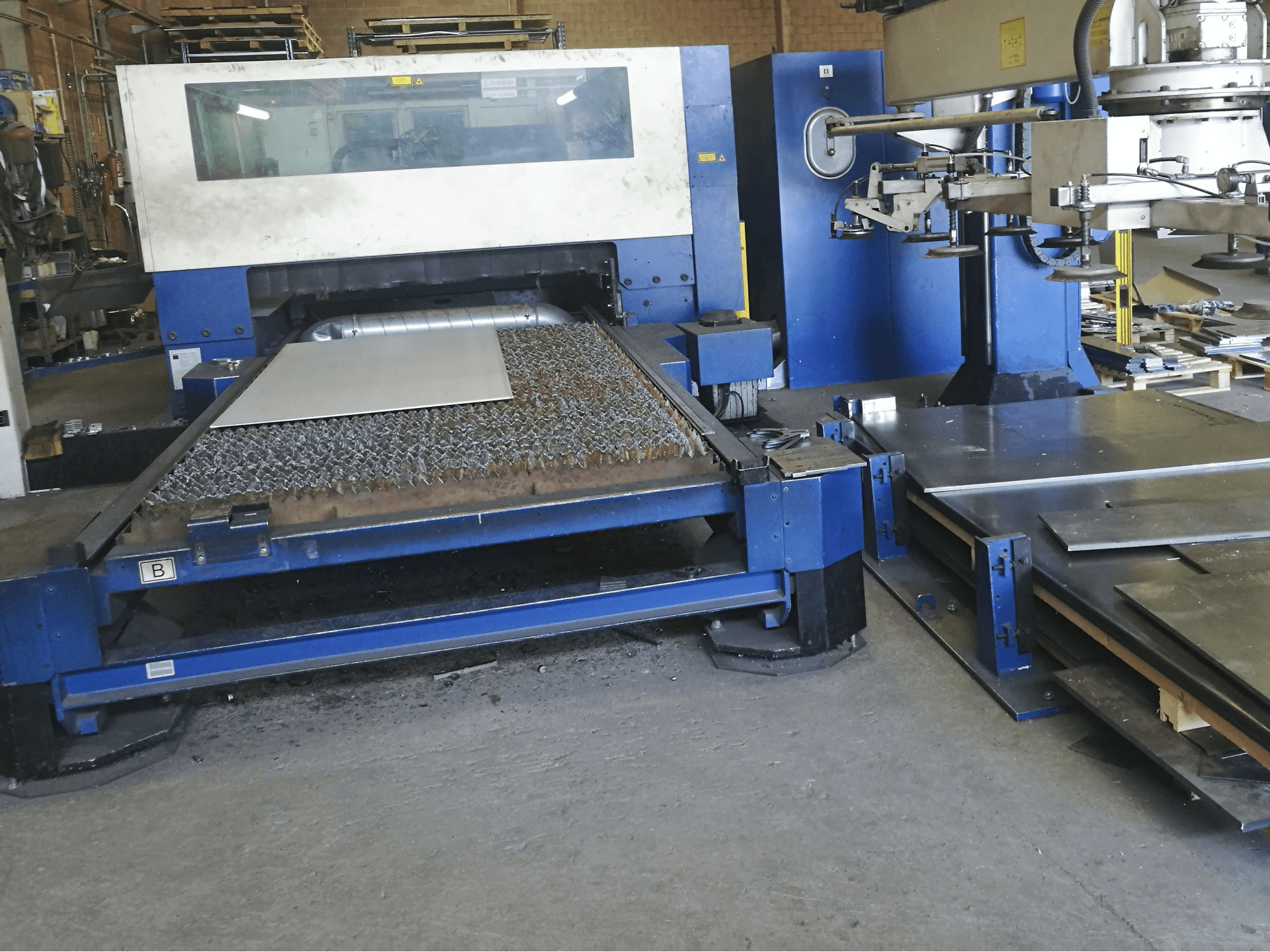

Trumpf Trumatic L3050 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L3050 Laser Cutting Machine was manufactured in Germany in 2005 has a working record of only 14245 laser hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this model stands out due to its laser power of 6 kW and the included Trumpf LiftMaster sheet loader. The machine is in very good conditions as Trumpf maintenance was regularly conducted.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic L3050
production hours: 21803
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 11100 mm
Measurements depth: 4600 mm
Measurements height: 2400 mm
Machine weight: 12000 kg

Control Unit

Model: Siemens
Interface: Sinumerik 840D

Main drive

Laserpower: 6 kW
Laser type: Co2
Laser brand: TLF 6000TM

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 100 mm
Workpiece weight: 900 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 10 mm

Machine specific data

Number of cutting heads: 2
Size of cutting head 1: 7.5''
Size of cutting head 2: 10''

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 105 kVA

Additional Equipment

- Trumpf LiftMaster

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
