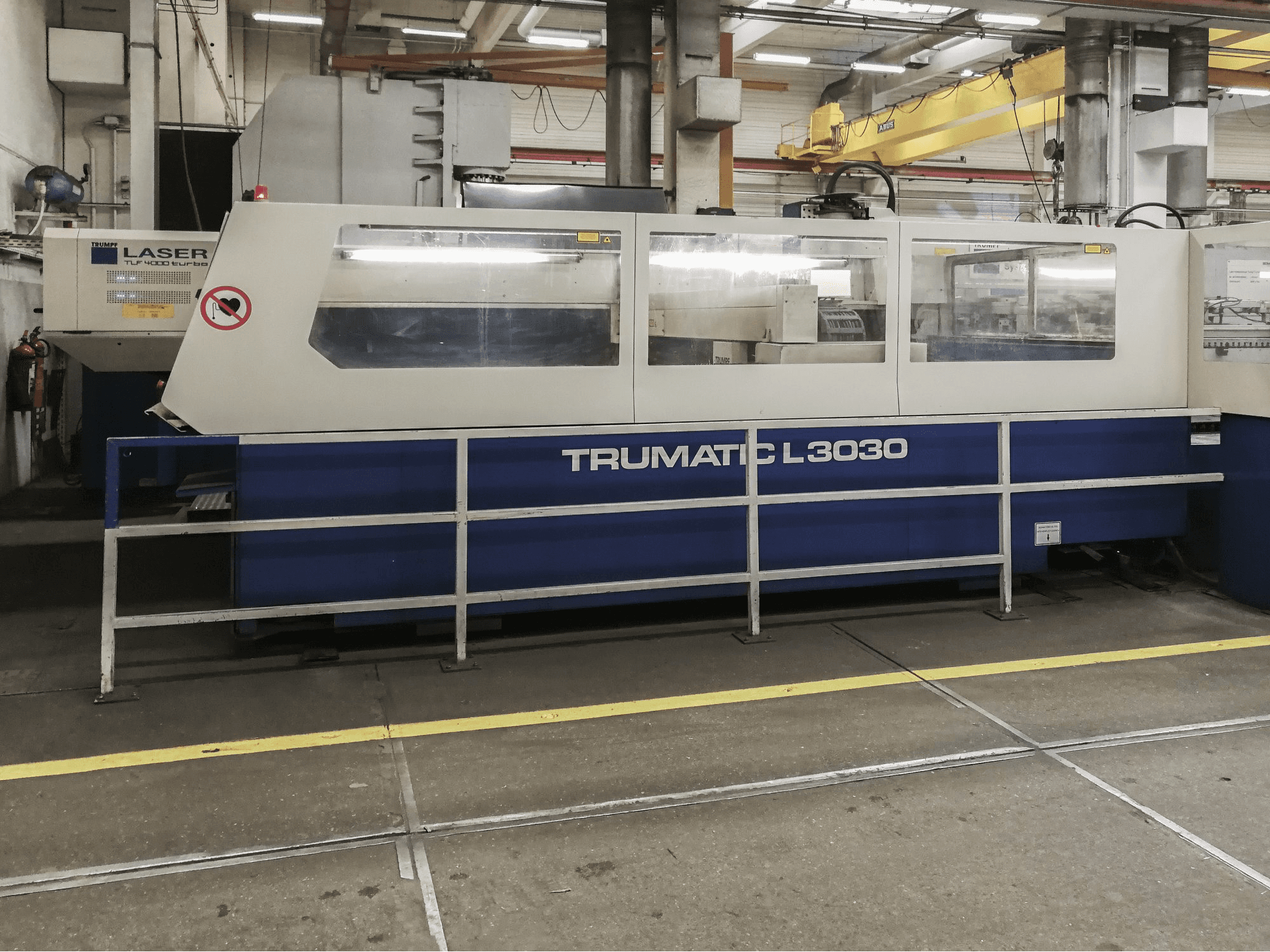

Trumpf Trumatic L3030 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L3030 Laser Cutting Machine was manufactured in 2001 in Switzerland and has a working record of approximately 47944 laser hours. This equipment is operated through a SIEMENS SINUMERIK 840D Control unit and mainly processed mild steel up to 16 mm of thickness in the past. Thanks to the included Trumpf LiftMaster, loading and unloading processes or pallet handling and part removal is mostly automated.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic L3030
production hours: 47944
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3030

General Data

Measurements width: 4700 mm
Measurements depth: 9300 mm
Measurements height: 2200 mm

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Laserpower: 4 kW
Laser type: CO2
Laser brand: Trumpf TruFlow

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 16 mm
Aluminum: 10 mm

Machine specific data

Size of cutting head 1: 5"
Size of cutting head 2: 7.5"

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 66 kVA
Air pressure: 6 bar

Additional Equipment

- Trumpf LiftMaster

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
