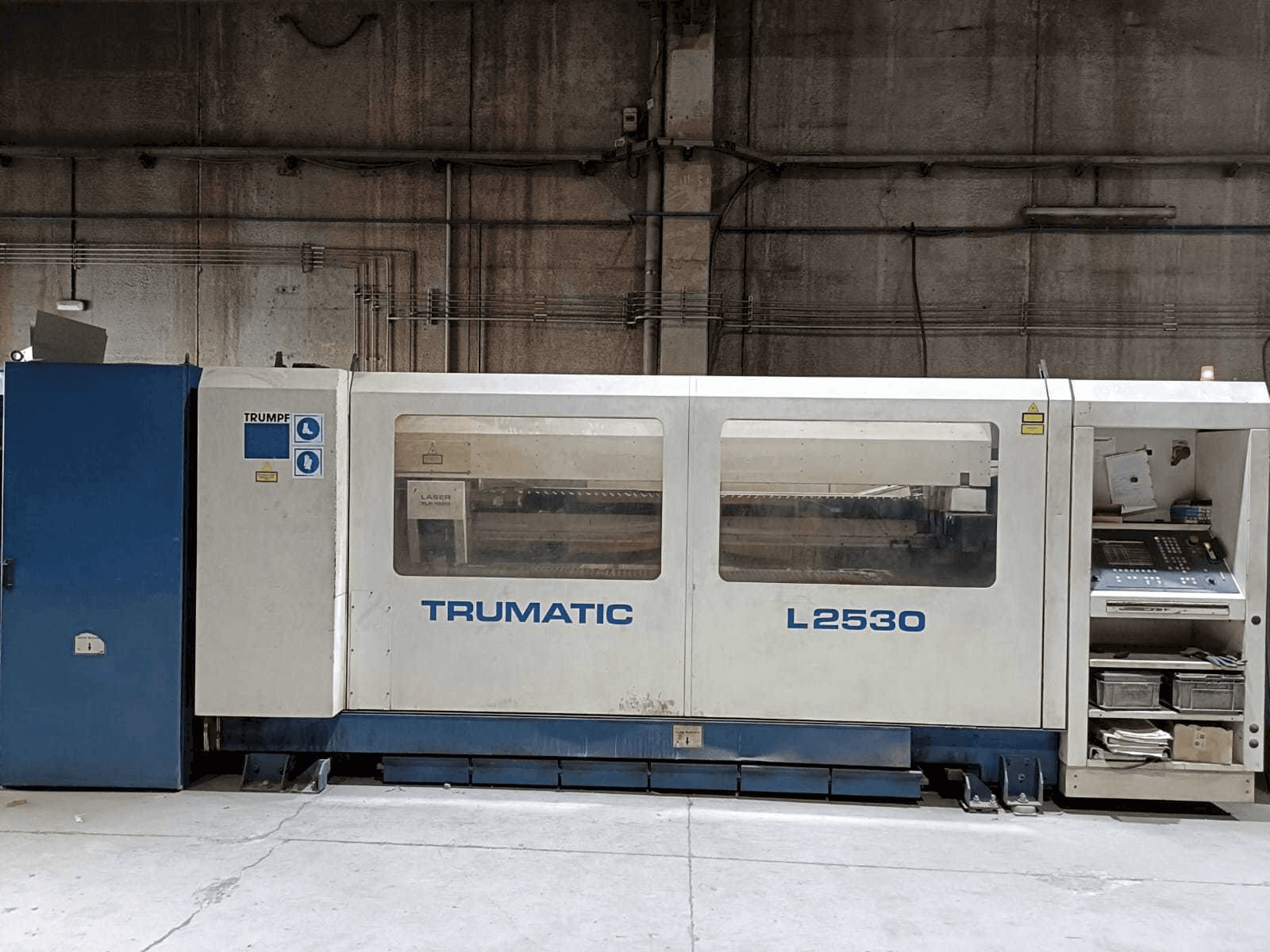

This TRUMPF Trumatic L2530 Laser cutting machine was manufactured in the year 1998 in the United States and has 22000 production hours. It is equipped with a SIEMENS Sinumerik 840 D control unit. The machine has a laser power of 1,8 kW.
Overview
- brand: TRUMPF
- year: 1998
- MODEL: Trumatic L2530
- application type: Cutting
- Location: Spain
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - TRUMPF Trumatic L2530
General Data
- Measurements width: 5900 mm
- Measurements depth: 6500 mm
- Measurements height: 2000 mm
- Machine weight: 7000 kg
Control Unit
- Model: Sinumerik 840 D
- Brand: SIEMENS
Main drive
- Laserpower: 1,8 kW
Movement
- X-AXIS Movement: 2500 mm
- Y-AXIS Movement: 1250 mm
- Z-AXIS Movement: 115 mm
Workpiece
- Workpiece x: 2500 mm
- Workpiece y: 1250 mm
- Workpiece z: 115 mm
Max Material thickness
- Steel: 12 mm
- Stainless steel: 4 mm
- Aluminum: 3 mm
Media
- Main electronic connection: 400 V
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
