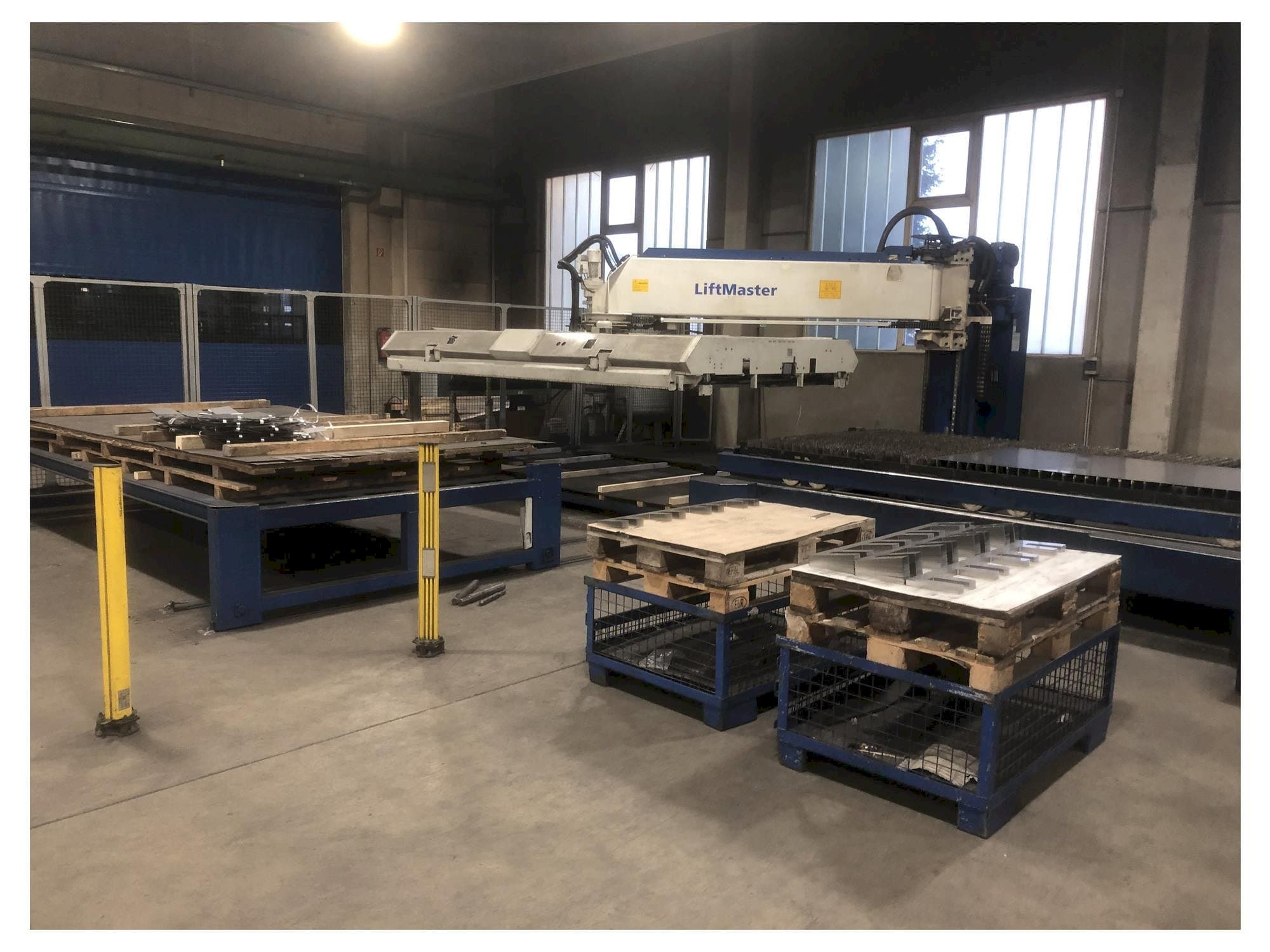

TRUMPF TruLaser 5040 + Liftmaster Laser Cutting machine

Show in original language

This TRUMPF TruLaser 5040 + Liftmaster Laser Cutting machine was made in 2007. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a laser power of 5,0 kW.

Overview

brand: TRUMPF
year: 2007
MODEL: TruLaser 5040 + Liftmaster
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5040 + Liftmaster

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Laserpower: 5,0 kW

Workpiece

Workpiece x: 4000 mm
Workpiece y: 2000 mm
Workpiece z: 110 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Software licence is included
- - Fast processing with sprintline in all sheet thicknesses, programmable power cycles
- - Contourline for the production of small holes
- - Pierceline
- - Spraying device for safe thick sheet processing
- - Automatic sheet metal outer edge detection
- - Safety: multi-beam light barriers, beam guidance
- - Nitroline high-pressure cutting
- - Automatic focus position adjustment focusline - laser power control
- - Position laser diode
Qualitative Machine Benefits:
- - Cutting gas pressure setting programmable
- - Controlline capacitive height control and process control
- - Laser cutting head with 7. 5" lens and laser cutting head with 10" lens for truflow 6000
- - Laser cutting head with 5" lens and laser cutting head with 7. 5" lens for truflow 5oo0
- - Cutting head quick-change device
- - Drives: gantry drive in combination with linear drives direct drives
- - Automatic pallet changer
- - Closed machine frame with integrated laser unit - laser unit: truflow 5000 high-frequency excited co2 laser, maintenance-free turbo radial fan, cooling unit, logbook function
- - Fully encapsulated and ventilated with nitrogen,
- - Longitudinal conveyor belt for small parts/waste

Extra information

- Working area: 4OO0 x 2000 x 1 15 mm Sta nd equipment: - PlasmaLine - Microweld - Automatic nozzle cleaning - Automatic switch-off - Work area lighting - Sinumerik 840D control system: Open control system on PC basis, simple operation, online help, integrated e-shop, diagnostic functions, maintenance logbook, technology data, teleservice - Workshop programming monitoring system, multi-chamber extraction system and compact dust extractor, safety cabin - Installation, commissioning and instruction - RJ45 network connection via teleservice installation - 3.5" floppy disk drive - TFT color screen Ouer conveyor belt left with container LiftMaster Peeling device and sheet thickness gauge Pallet handling extension (P) + 1x double trolley machine have a maintenance contract with Trumpf quartz tube replacement was carried out in 2022/2023. 00% power of 5KW.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
