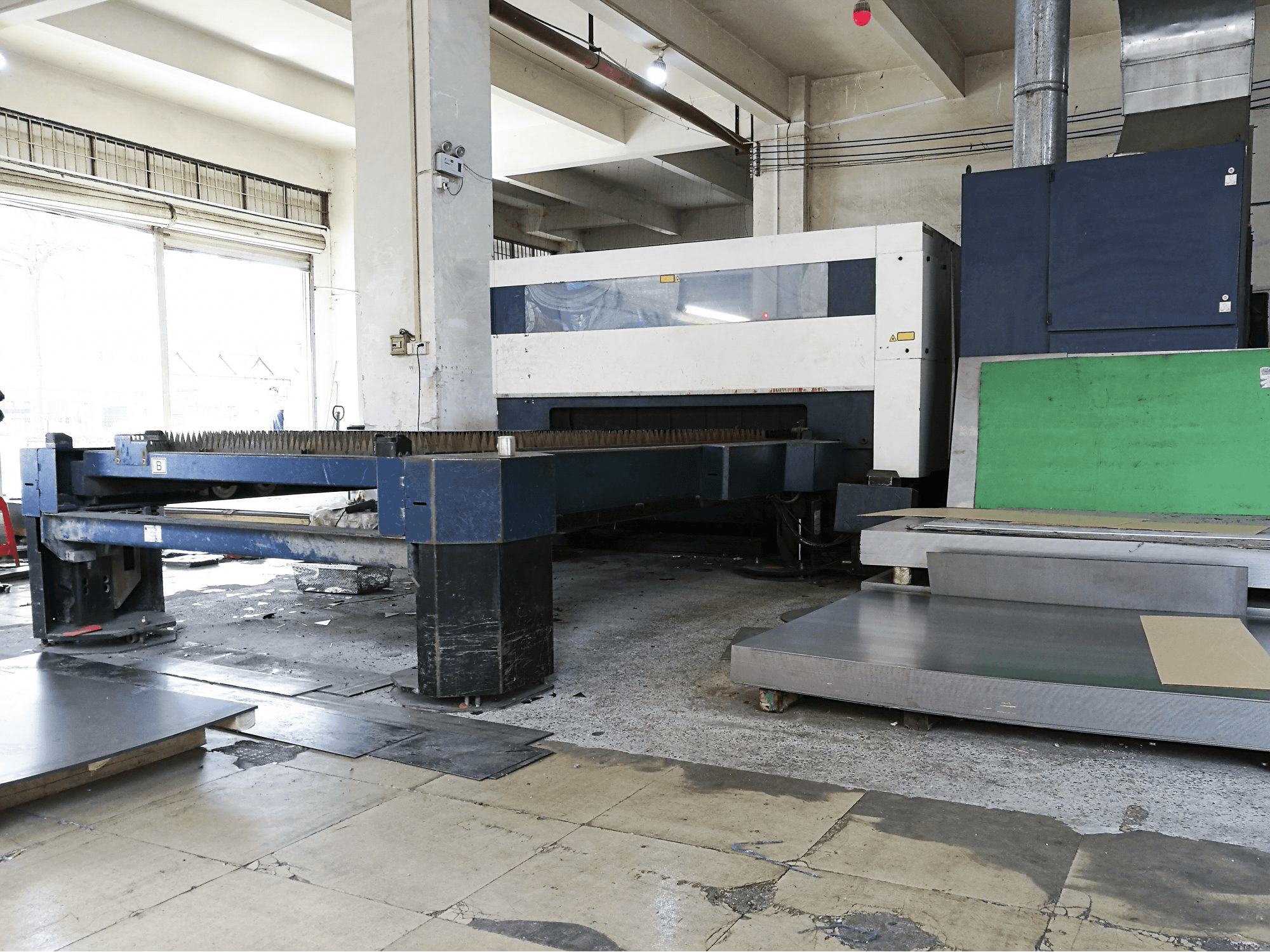

Trumpf TruLaser 5030 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 5030 Laser Cutting Machine is the perfect equipment for heavy metal work. Manufactured in 2011 and with an operating record of 28242 production hours, the machine comes with a SIEMENS SINUMERIK 840D Control Unit. Thanks to its German-quality laser, this Trumpf is regarded in the laser cutting market as a solid and flexible model.

Overview

brand: TRUMPF
year: 2011
MODEL: TruLaser 5030
production hours: 28242
application type: Cutting
Location: China
machine type: Fiber Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5030

General Data

Measurements width: 9155 mm
Measurements depth: 3400 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS
Interface: USB, Ethernet

Main drive

Number of spindles: 1
Laserpower: 5 kW

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 200 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Working Feed: 200 m/min
Z-AXIS Movement: 115 mm
Z-AXIS Working Feed: 200 m/min
X-Y-Simultaneous Working Feed: 300 m/min
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 105 kW
Air pressure: 6 bar
He consumption: 13.1 l/h
CO2 consumption: 1.1 l/h
N2 consumption: 5.8 l/h
Lubrication tank: 95 L
Chip conveyor: Yes

Additional Equipment

- Laser cutting head f = 130
- Laser cutting head f = 250

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
