TRAUB TNS 30/42 D Lathe

Show in original language

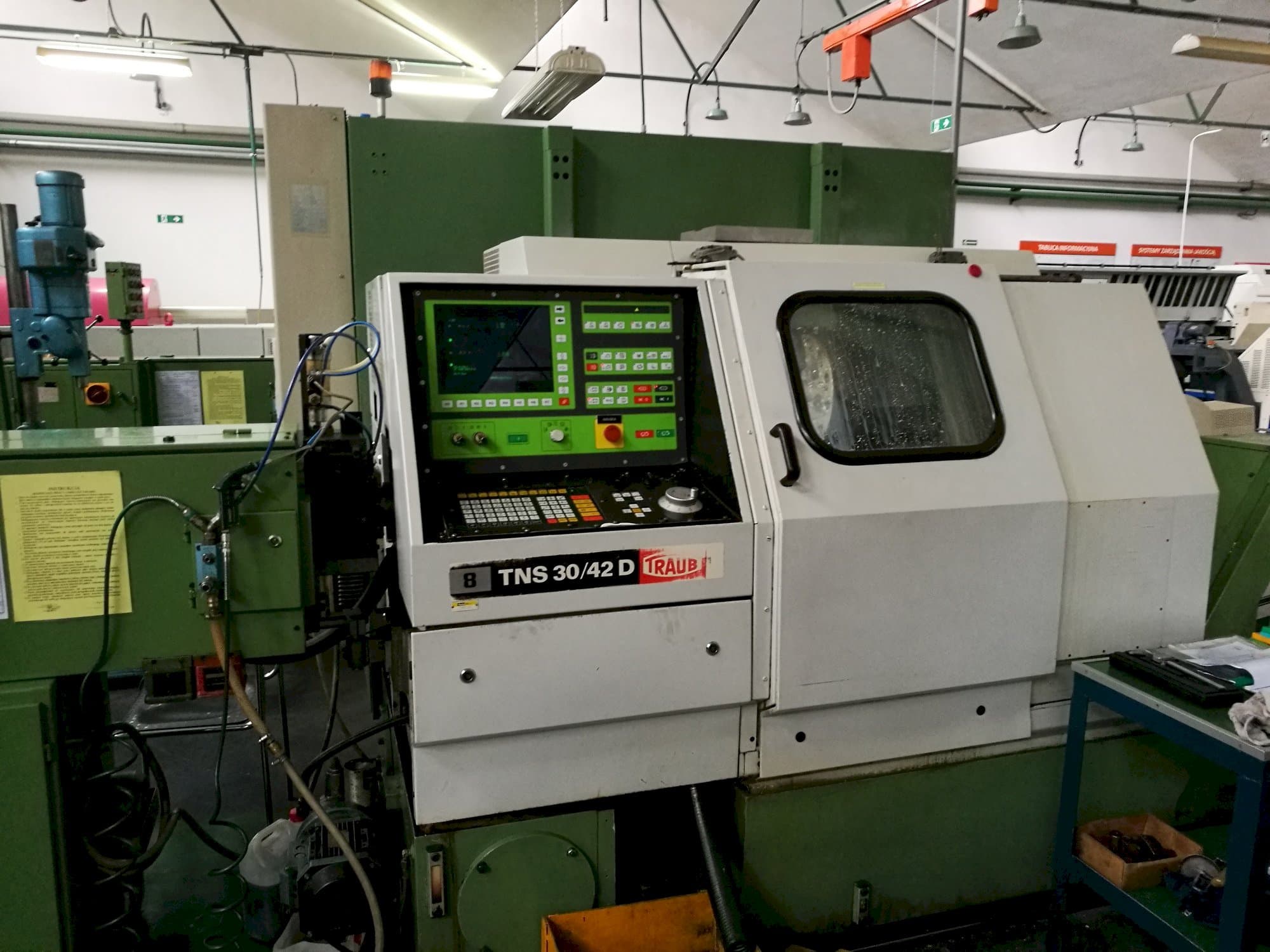

This TRAUB TNS 30/42 D Lathe from 1987 was built in Germany and has been operative for 64953 hours. Equipped with a TRAUB TX8D Control unit, this machine includes a bar feeder and driven tools.

Overview

brand: TRAUB
year: 1987
MODEL: TNS 30/42 D
production hours: 64953
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - TRAUB TNS 30/42 D

General Data

Measurements width: 7000 mm
Measurements depth: 1600 mm
Measurements height: 1700 mm
Machine weight: 4500 kg

Control Unit

Model: TX8D

Movement

X-AXIS Movement: 200 mm
Z-AXIS Movement: 300 mm

Turret

Number of turrets: 3

Media

Power consumption: 34 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Ms
Material thickness: Mm

Machine Benefits

Technical Machine Benefits:
- - Spindle bore: diameter 43mm
- - Collector of the finished part
- - Max length of the rolling. Z = 300mm
- - Max. 5600 / min. - max wed of turned. X = 200mm
- - 12 - tools for vdi-30 holders
- - C axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
