TOYODA FV1165 Milling

Show in original language

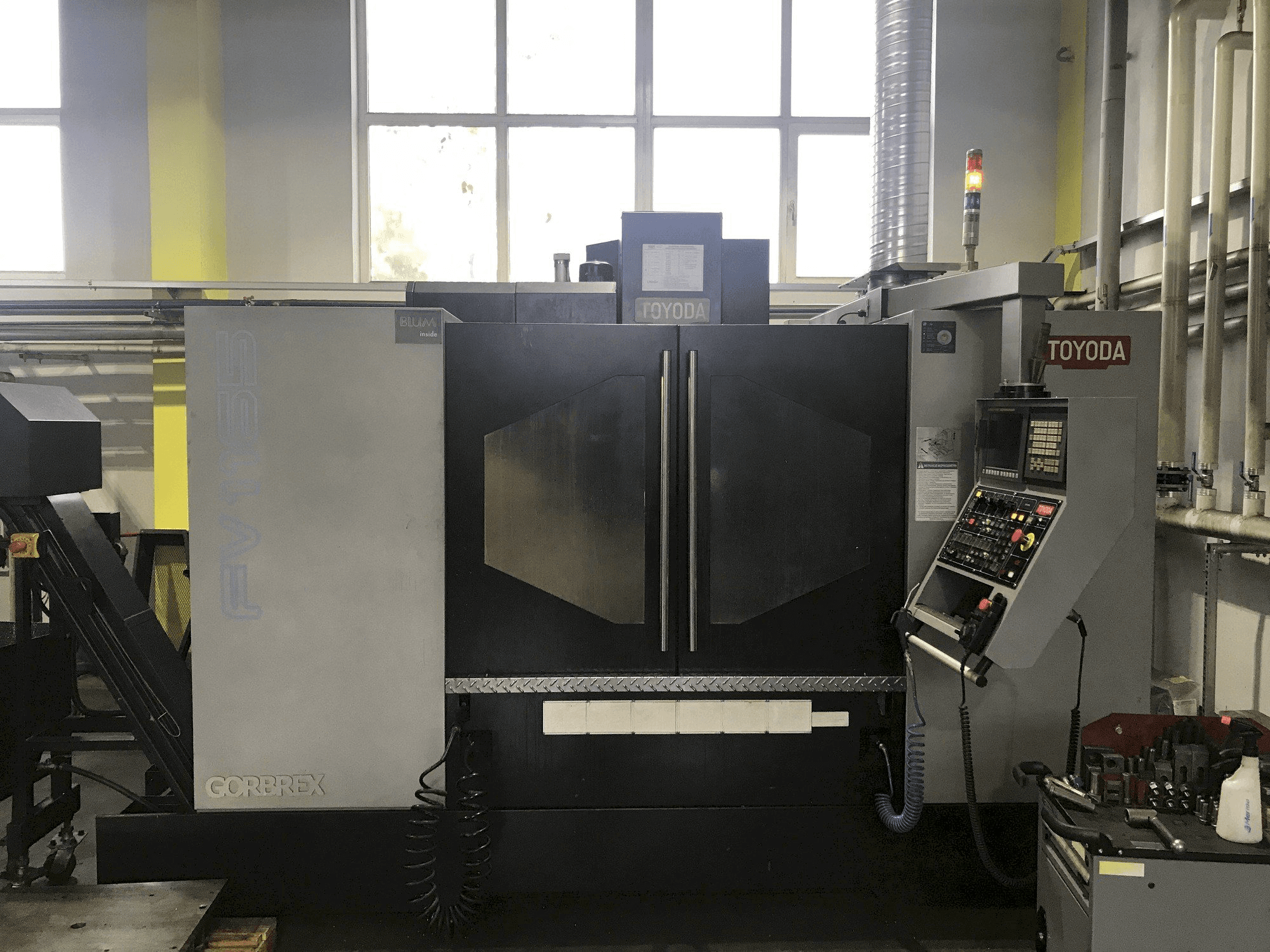

This TOYODA FV1165 Vertical Machining Center was manufactured in the year 2014 in Japan. It has a production history of only 14500 working hours. It is operated through a FANUC 01-MD control unit. It can work with a spindle speed up to 8000 rpm. This machine is in very good conditions.

Overview

brand: TOYODA
year: 2014
MODEL: FV1165
production hours: 14500
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - TOYODA FV1165

General Data

Measurements width: 4300 mm
Measurements depth: 4070 mm
Measurements height: 3000 mm
Machine weight: 7200kg

Control Unit

Model: 01-MD
Brand: FANUC

Main drive

Spindle speed range: from 50 up to 8.000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1100mm
Y-AXIS Movement: 650mm
Z-AXIS Movement: 600mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table: (wxd) - 1300x650mm
- - Max table loading: 1100kg
- - Ball screws on x, y, z axis
- - Cooling through the spindle - 20 bar
- - Tool storage: 40 pcs
- - Tool change time 3 sec
- - Control panel- lcd screen: 10. 4 "
- - Power supply: 400v / 50hz 35kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
