TOS SKIQ 20 CNC Lathe

Show in original language

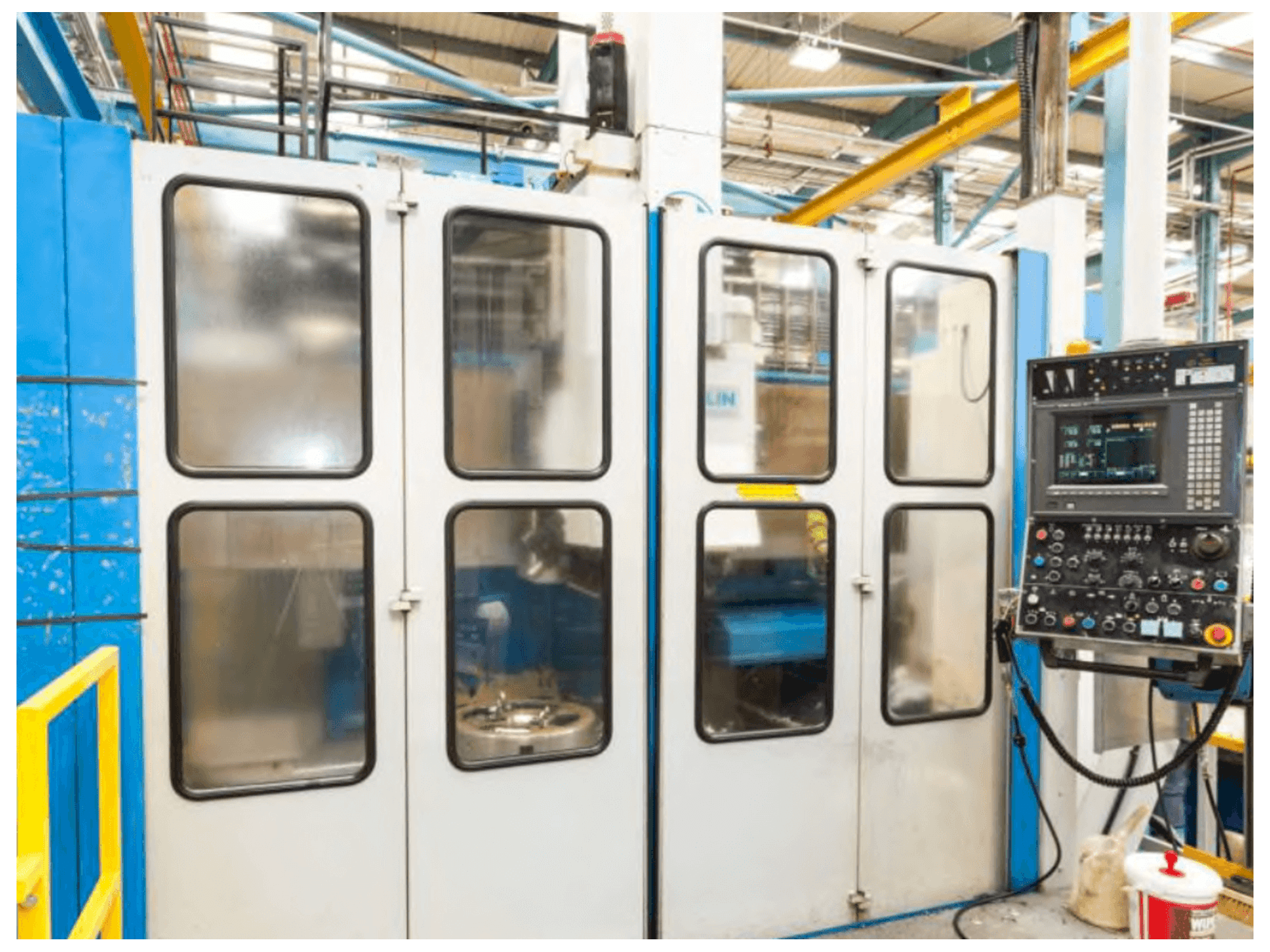

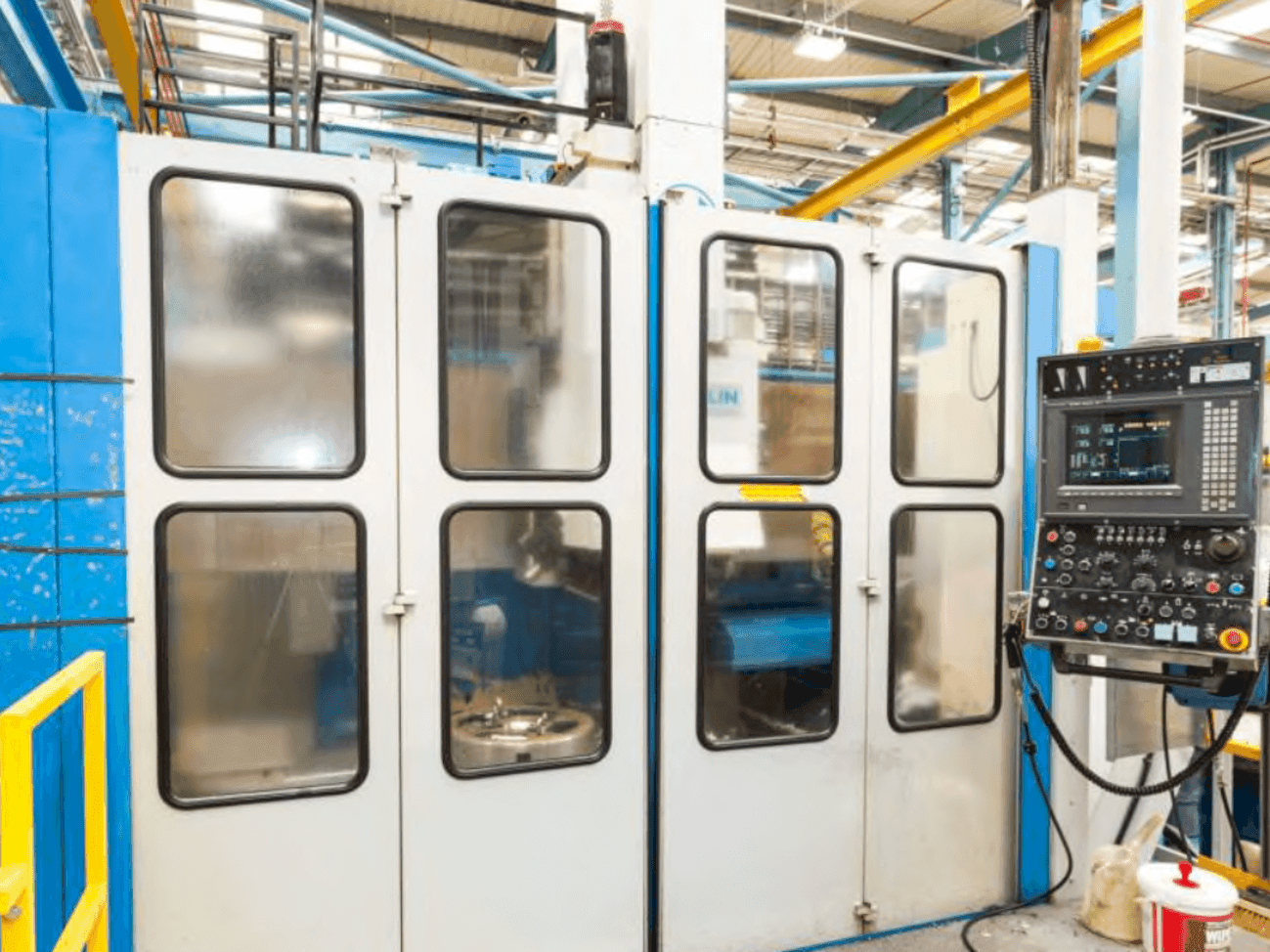

This TOS SKIQ 20 CNC Lathe was built in the year 1999 in Czech Republic. It is equipped with a Fanuc 16iTB control unit. This 2 axis machine operates with a max. table speed 2 - 315 rpm. It stands out for its ability to carry up to 20000 kg of workpiece. It includes a set of turning tool holders. It presents very good working conditions.

Overview

brand: TOS
year: 1999
MODEL: SKIQ 20 CNC
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - TOS SKIQ 20 CNC

General Data

Measurements width: 6555 mm
Measurements depth: 5225 mm
Measurements height: 5645 mm
Machine weight: 35000 kg

Control Unit

Model: 16iTB
Brand: FANUC

Main drive

Number of axis: 2

Movement

Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 20000 kg

Tools

Slots in storage: 15

Additional Equipment

- Set of Turning Tool holders

Additional Information

Machine history

End product: Engine parts
Industries: Aviation

Machine Benefits

Technical Machine Benefits:
- - Table diameter 2000 mm
- - Max. Turning diameter 2300 mm
- - Max. Turning height 1680 mm
- - Max. Table speed 2-315 rpm
- - Main motor power 60 kw
- - Max. Cutting force 44,000 n
- - Ram cross section 180 x 200 mm
- - Vertical travel of crossrail 800 mm
- - X-axis travel (saddle horizontal) 1300 mm to the right / 1040 mm to the left
- - Probing systems (tool and part), 4 jaw manual chuck, 10 bar through tool coolant
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
