- TOS Kurim FOQ 80 Milling Machine

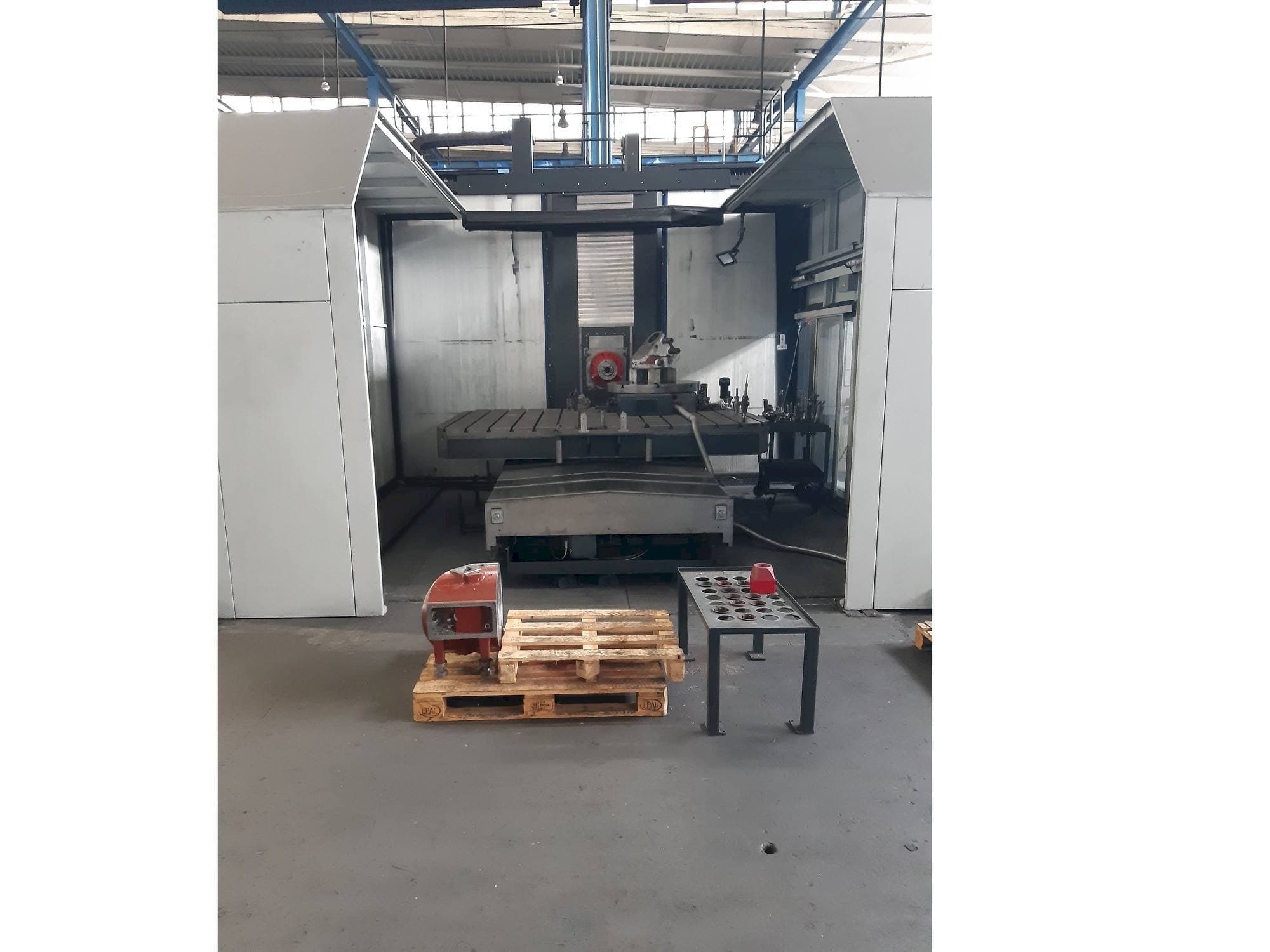

This TOS Kurim FOQ 80 Milling Machine was manufactured in the Czech Republic in the year 2005. This 7 axis machine operates through a Heidenhain iTNC 530 control unit. It can work with a spindle speed up to 4000 rpm. It has a table of 2000 mm outer length and 3000 mm outer width. The machine is in a very good condition.
Overview
- brand: TOS Kurim
- year: 2005
- MODEL: FOQ 80
- application type: Milling
- Location: Czech Republic
- machine type: CNC Milling Machine
- availability: Sold
- control unit brand: Heidenhain
Technical Information - TOS Kurim FOQ 80
General Data
- Machine weight: 63000 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC 530
Main drive
- Number of spindles: 1
- Spindle speed range: 4000 1/MIN
- Spindle motor power: 30 kW
- Number of axis: 7
Movement
- X-AXIS Movement: 2600 mm
- Y-AXIS Movement: 1650 mm
- Z-AXIS Movement: 825 mm
Workpiece
- Workpiece weight: 25000 kg
Table
- Outer length: 2000 mm
- Outer width: 3000 mm
Tools
- Slots in storage: 20
- Max weight: 15 kg
- Max tool diameter: 110/200 mm
- Max tool length: 300 mm
- Type of tool holder: HSK-A100
Media
- Power consumption: 60 kVA
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Spindle for interchangeable heads
- - Working feeds range x, y, z 1 – 30 000 mm/min
- - Maximal feed force 20 000 n
- - Spindle torque 2000nm
- - Head va1: 4000 rpm, 2000 nm, iso50 ad, din
- - 2-axis rotary head vk: 4000 rpm, 1000nm, iso50 ad, din
- - Rmp60 renishaw workpiece probe
- - High pressure cooling 30 bar
- Qualitative Machine Benefits:
- - Very good conditions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
