TOS FSQ 125-OR/A5 Milling Machine

Show in original language

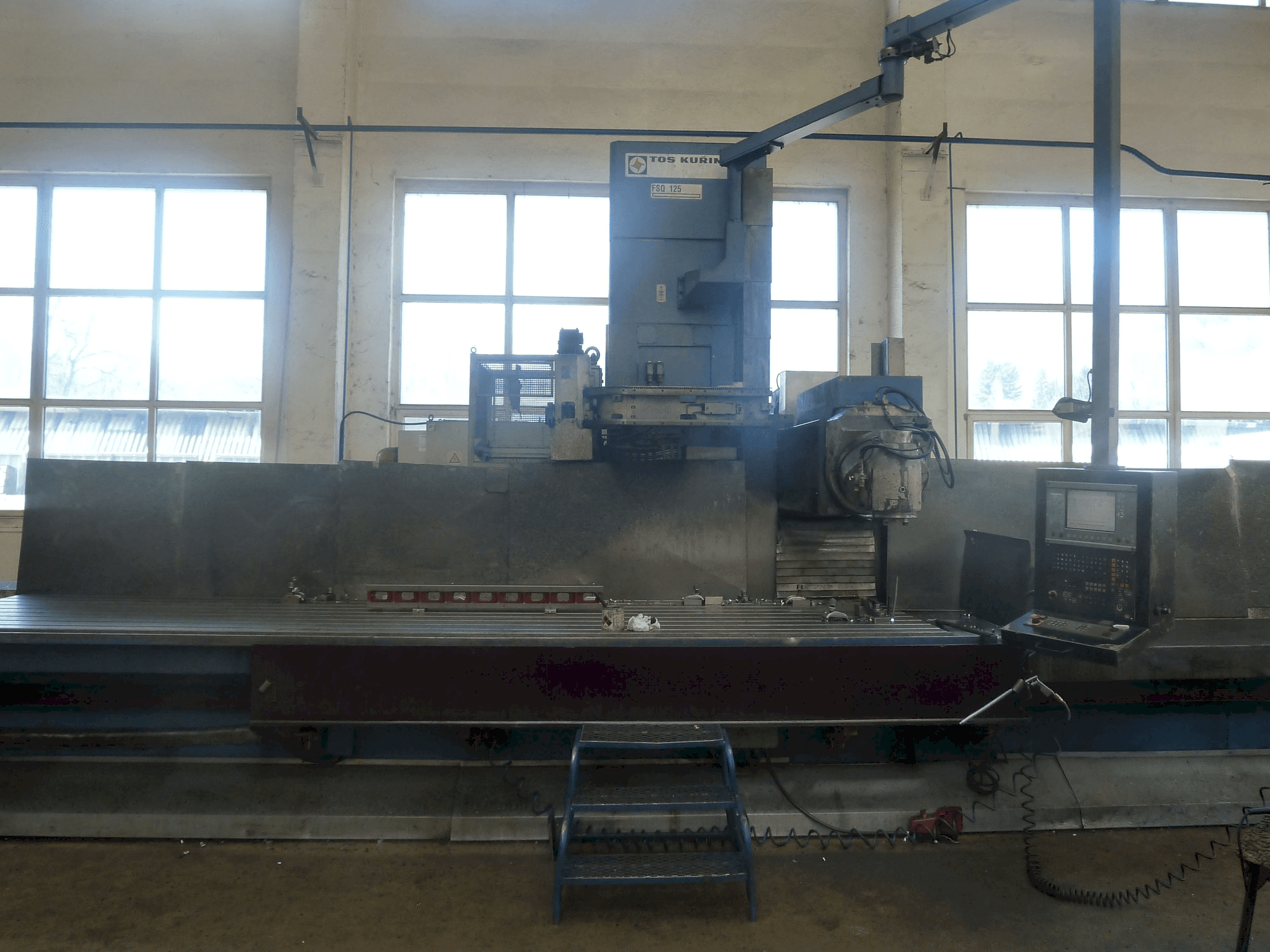

This TOS FSQ 125-OR/A5 is a Milling Machine from 2002, produced in Czech Republic with a production record of 40000 hours. Equipped with a HEIDENHAIN 426M Control unit, this machine has been working with steel and stainless steel during the past. It stands out due to its big table, capacity up to 10500 kg of workpieces and an ISO 50 Spindle Taper. As additional equipment, this machine includes an automatic tool changer and a fixed head.

Overview

brand: TOS
year: 2002
MODEL: FSQ 125-OR/A5
production hours: 40000
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TOS FSQ 125-OR/A5

General Data

Machine weight: 870 kg

Control Unit

Model: 426 M
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 2500 rpm 1/MIN

Movement

X-AXIS Movement: 5000 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 1400 mm
B-AXIS Movement: 2.5 degrees MM

Workpiece

Workpiece weight: 10500 kg

Table

Outer length: 5000 mm
Outer width: 1250 mm
Number of tslots: 9
Distance between: 140 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 50 kVA
Chip conveyor: Yes

Additional Equipment

- Automatic tool changer with 40 positions
- Fixed head (B axis 2.5 degrees)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
