Takumi V32 Vertical Machining Center

Show in original language

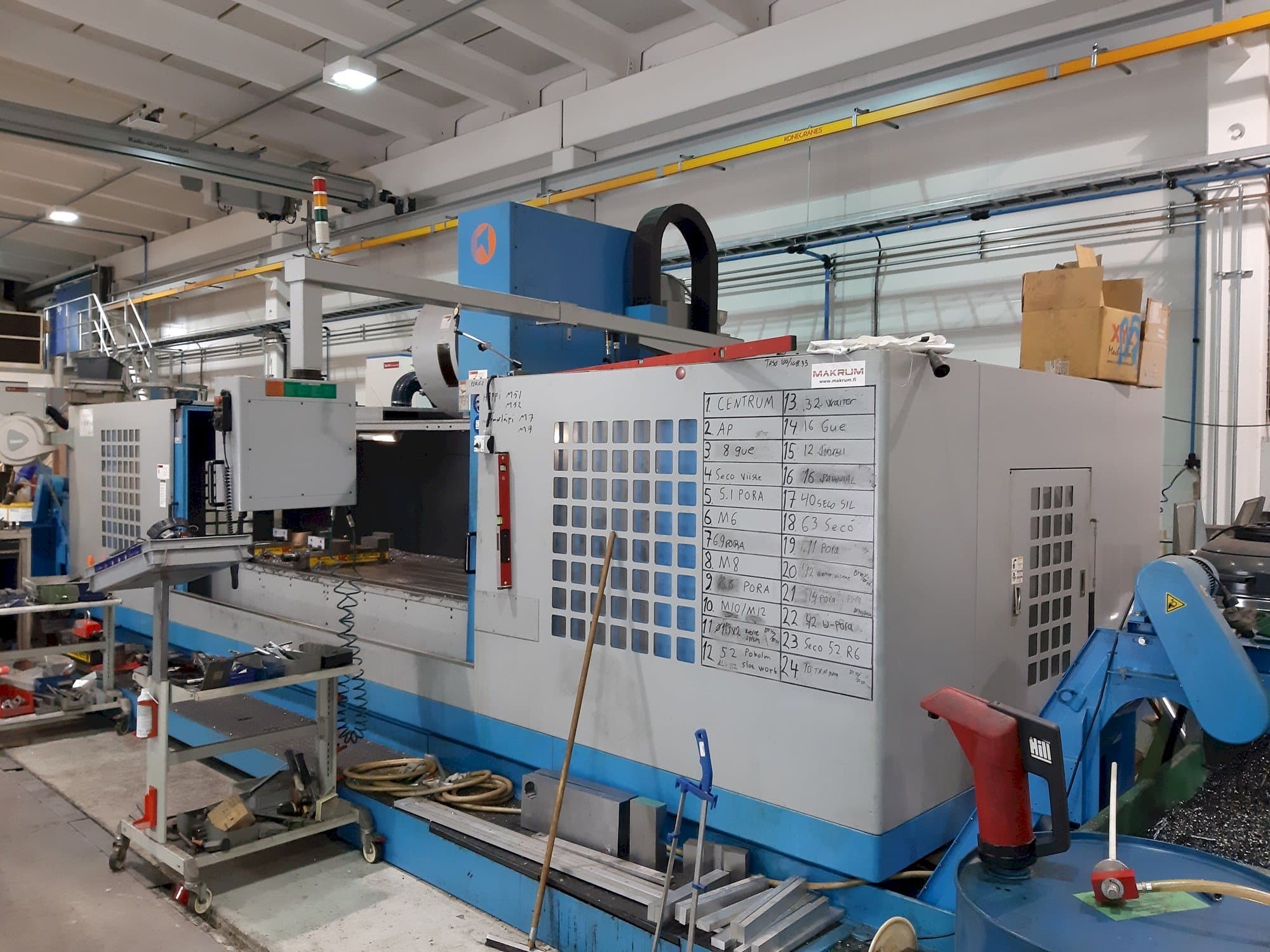

This Takumi V32 Vertical Machining Center was manufactured in the year 2011 in Taiwan. It has a production history of 8373 working hours. It is operated through a Fanuc Series Oi-MD control unit. It can work with a spindle speed up to 6000 rpm.

Overview

brand: Takumi
year: 2011
MODEL: V32
production hours: 8373
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Takumi V32

General Data

Measurements width: 9902 mm
Measurements depth: 4690 mm
Measurements height: 3510 mm
Machine weight: 27000 kg

Control Unit

Model: Series Oi-MD
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 3200 mm
Y-AXIS Movement: 1066 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece weight: 4500 kg

Table

Outer length: 3200 mm
Outer width: 1025 mm
Number of tslots: 22*150*7

Tools

Slots in storage: 24
Max weight: 15 kg
Max tool diameter: 110/220 mm
Max tool length: 300 mm
Type of tool holder: BT50

Media

Main electronic connection: 220 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 4th axis PARKSON MNC-503
- 90 degree angular head
- Spindle speeder 1-6

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
