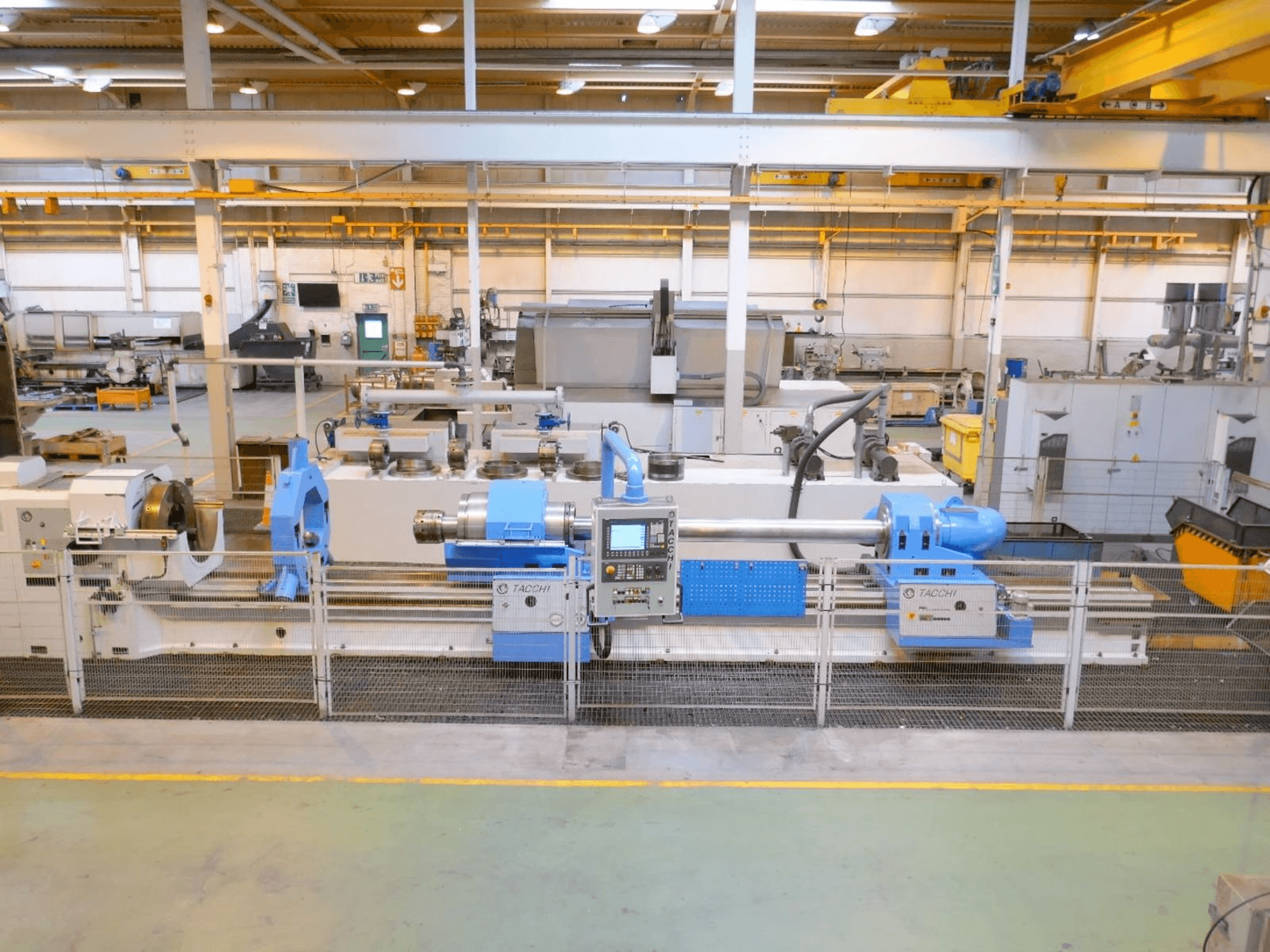

TACCHI GIACOMO - FT45S CNCGB-BOR-TAC-2011-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Centre height : 500 mm
  • - Swing over bed : 1000 mm
  • - Width of bed : 520 mm
  • - Boring diameter capacity solid boring : 20 – 280 mm
  • - Trepanning : 50 – 500 mm
  • - Counter boring : 550 mm
  • - Max. Boring depth : 3000 mm
  • - Spindle bore: 128 mm
  • - Drive power (ac brushless main motor) : 100 kw
  • - Maximum torque : 25. 000 nm
• Qualitative Machine Benefits:
  • - Boring carriage feeds, infinitely variable : 1 – 4000 mm/min ,rapid traverse : 4000 mm/min ,feed force: 50,000 n
  • - 1 off boring tube steady, max. Capacity 346 mm. 800mm rohm 3 jaw high grip geared chuck.
  • - Coolant tank, 16,000 litre.
  • - Magnetic oil filtration 1600 lt/min.
  • - Hydraulic approach stroke : 150 mm
  • - Floor space approx. : 13,000 x 5,000 kg
  • - Machine equipped with :- coolant oil pumping station with 2 pumps, flow rate 250-1600 lt/min. , 10 bar.
  • - Bta rotating oil pressure head, size 218 s. Max. Boring bar 346 mm. Boring bushes, rings and seals.
  • - 3 off boring tubes (154mm and 226mm x 4500mm thread connection, 346mm x 4500mm flange connection).
  • - Solid boring heads 255, 300, 350, 370, 380, 400mm. 1 off 3 point roller work piece steady, 200 – 650 mm, capacity 6000 kg.
