➤ Used MICROCUT HBM-4 For Sale | gindumac.com

Show in original language

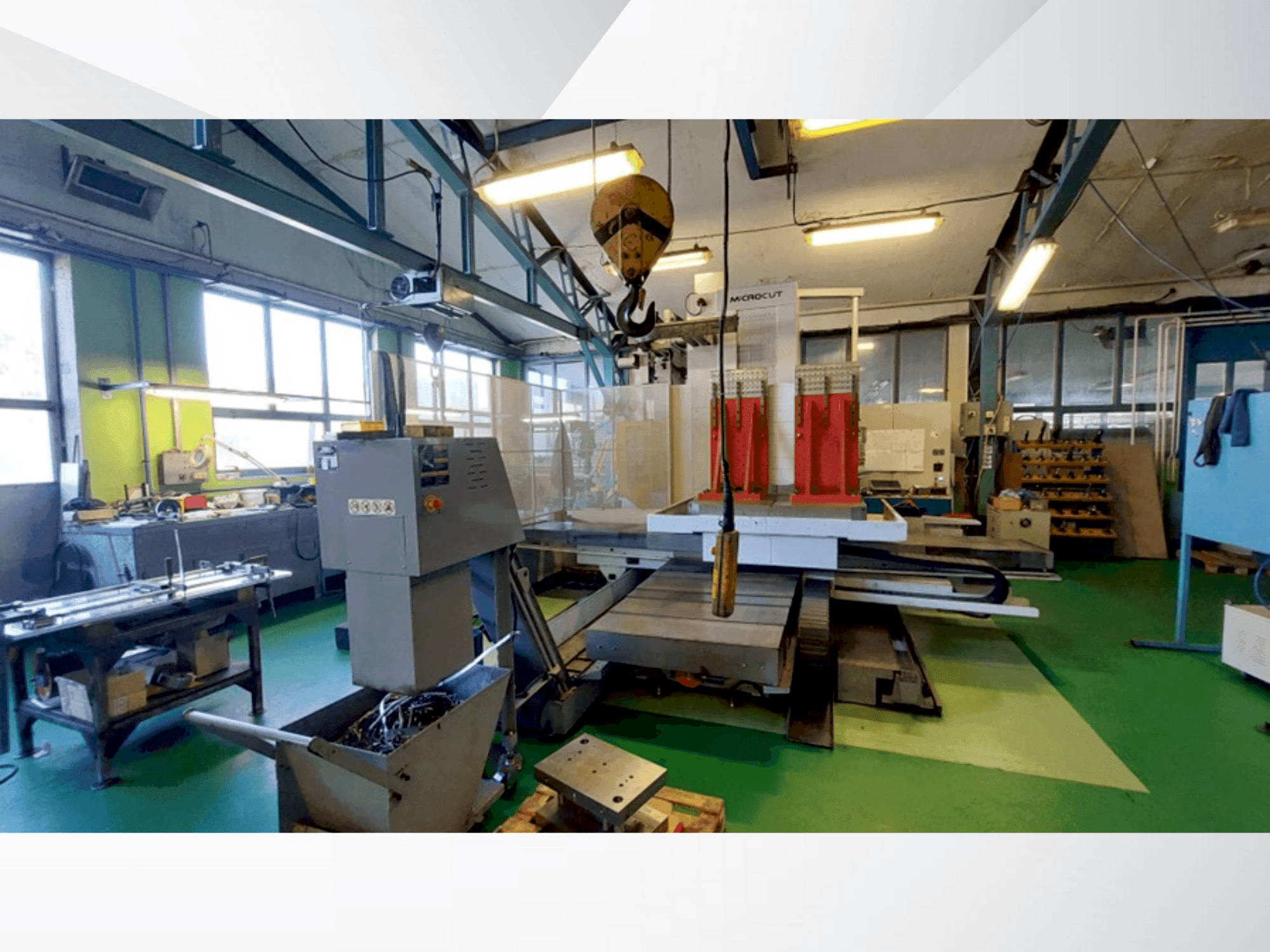

This 5-axis MICROCUT HBM-4 boring machine was manufactured in 2018. It features a robust Meehanite cast iron structure, high spindle speeds with low vibration, and a Fanuc 0i CNC control for precision. The spindle supports a 150 mm diameter and operates at speeds up to 3000 rpm. The table can handle loads up to 5000 kg, with a working area of 1250 x 1500 mm. If you are looking to get high-quality boring capabilities, consider the MICROCUT HBM-4 machine we have for sale. Contact us for more information.

Overview

brand: MICROCUT
year: 2018
MODEL: HBM-4
production hours: 500
application type: Milling
Location: Hungary
machine type: Boring Machine (Metal)
availability: Immediately
control unit brand: FANUC

Technical Information - MICROCUT HBM-4

General Data

Measurements width: 4715 mm
Measurements depth: 7750 mm
Measurements height: 3700 mm
Machine weight: 22500 kg

Control Unit

Brand: FANUC
Model: 0i

Main drive

Spindle speed range: 35–3000 rpm 1/MIN
Spindle motor power: 15/18.5 kW
Tool taper: ISO 50
Wire diameter: 150 mm

Movement

X-AXIS Movement: 2200 MM
Y-AXIS Movement: 1600 MM
Z-AXIS Movement: 1600 MM
W-Axis Movement: 550 mm
B-AXIS Movement: 0.001° MM

Table

Outer length: 1250 mm
Outer width: 1500 mm
Table load: 5000 kg

Additional Equipment

- Tool Changer Type: Arm type / Tool Positions: 60 / Max Tool Diameter: Ø125 mm / Max Tool Length: 300 mm / Max Tool Weight: 25 kg / Tool Change Time: 9 seconds
- Standard Accessories: Fanuc 0i CNC control, spindle oil cooler, chip conveyor, high-pressure cooling system (30 bar), hydraulic system and central lubrication, electronic handwheel, workspace lighting, spindle vibration monitoring
- Optional Features: 0.001° table indexing, 3D Fanuc option for universal milling head

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 740/863 nm / high-pressure cooling through the spindle
- - Indexing: 1° (standard), 0. 001° (optional)
- - X/y/z/w axis rapid: 12/12/12/6 m/min / x/y/z/w axis feed: 10/10/10/6 m/min
Qualitative Machine Benefits:
- - High accuracy with fanuc 0i control
- - Rigid design with robust table
- - Meehanite cast iron structure for stability
- - Dual cylindrical roller bearings on the spindle
- - Absolute positioning system for axis movement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
