TAATH - BL-HK80BHU-TUR-TAA-2020-00001

Name: TAATH BL-HK80B
Brand: TAATH
SKU: HU-TUR-TAA-2020-00001
Price: 45700 GBP
Availability: InStock

£ 45,700

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TAATH BL-HK80B For Sale | gindumac.com

Show in original language

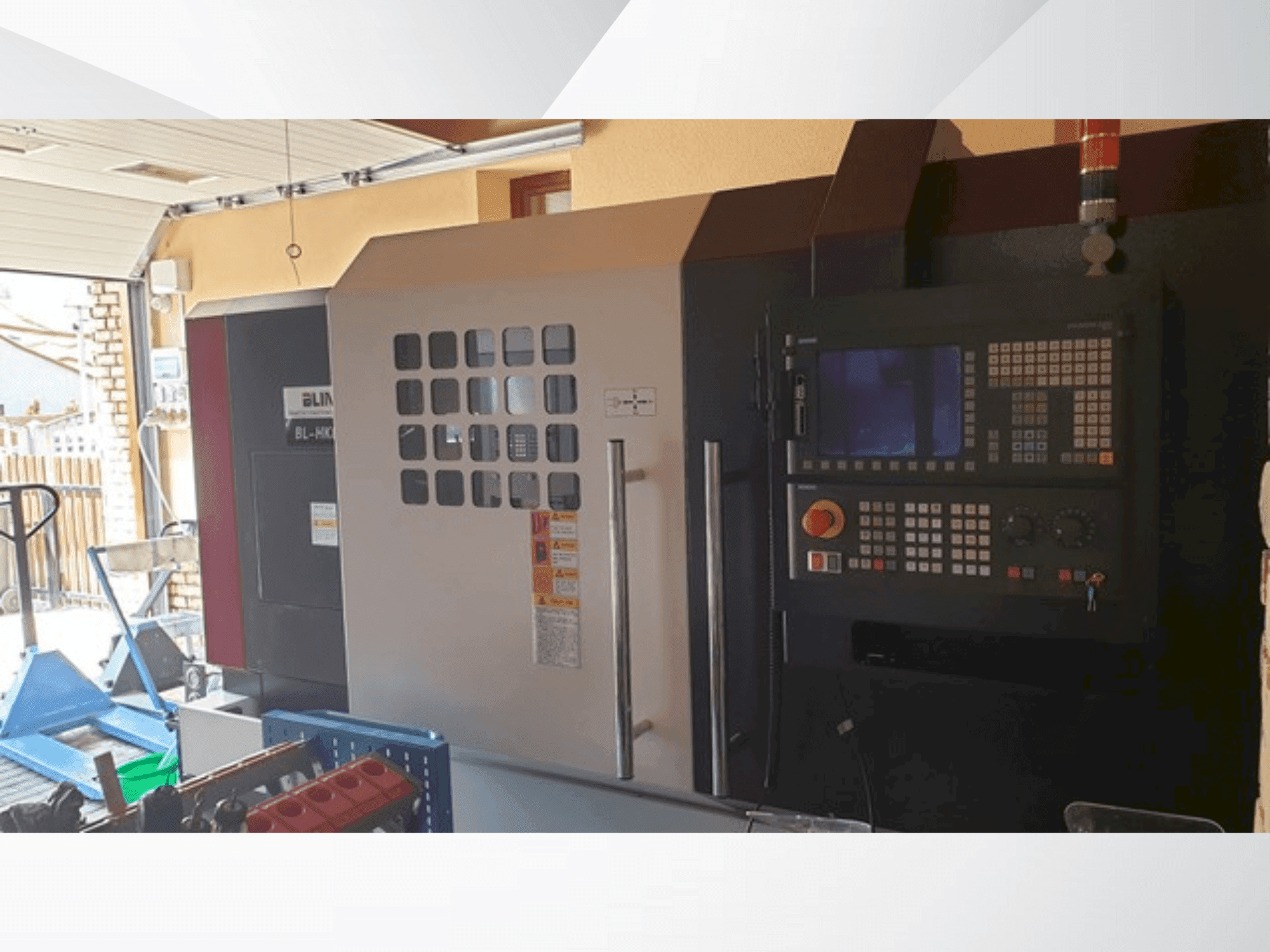

This TAATH BL-HK80B horizontal turning machine was manufactured in 2020. It features a swing over bed of 800 mm, a maximum turning length of 3,000 mm, and a chuck diameter of 500 mm. The spindle supports a speed up to 600 RPM with a motor power of 22 kW. Ideal for handling heavy loads up to 5,000 kg. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: TAATH
year: 2020
MODEL: BL-HK80B
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - TAATH BL-HK80B

General Data

Measurements width: 2500 MM
Measurements depth: 6000 MM
Measurements height: 2000 MM
Machine weight: 12000 KG

Main drive

Spindle speed range: 18-600 1/MIN
Spindle motor power: 22 kw
Number of axis: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 800 mm
- - Max turning length: 3,000 mm
- - Max turning diameter: 800 mm
- - Max load capacity: 5,000 kg
- - Chuck diameter: 500 mm (standard)
- - Tailstock quill diameter: 120 mm
- - Tailstock quill travel: 250 mm
- - Tailstock center taper: mt 6
- - Bed width: 600 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
