- SUNMILL JMV-1100 Vertical Machine Center

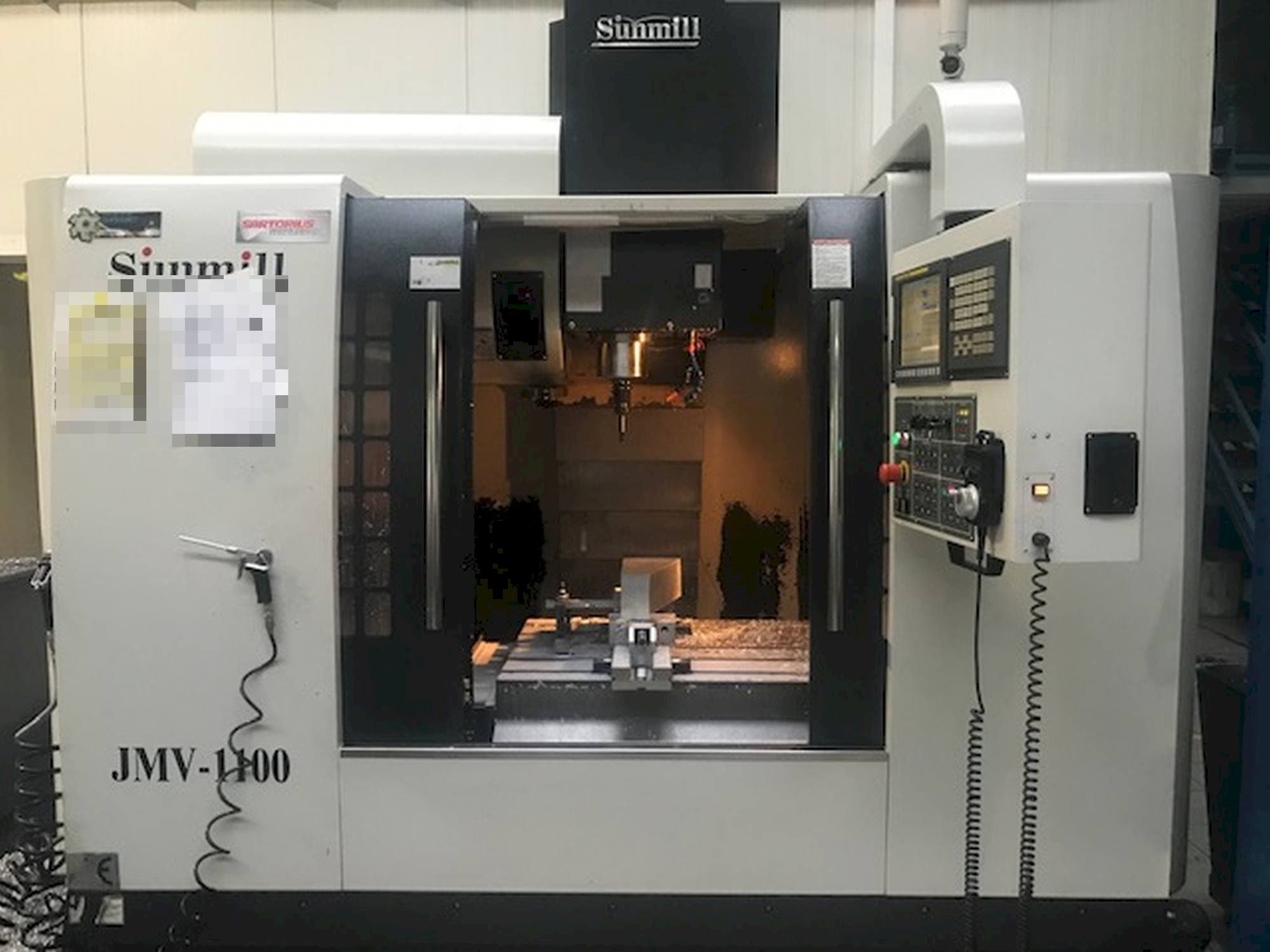

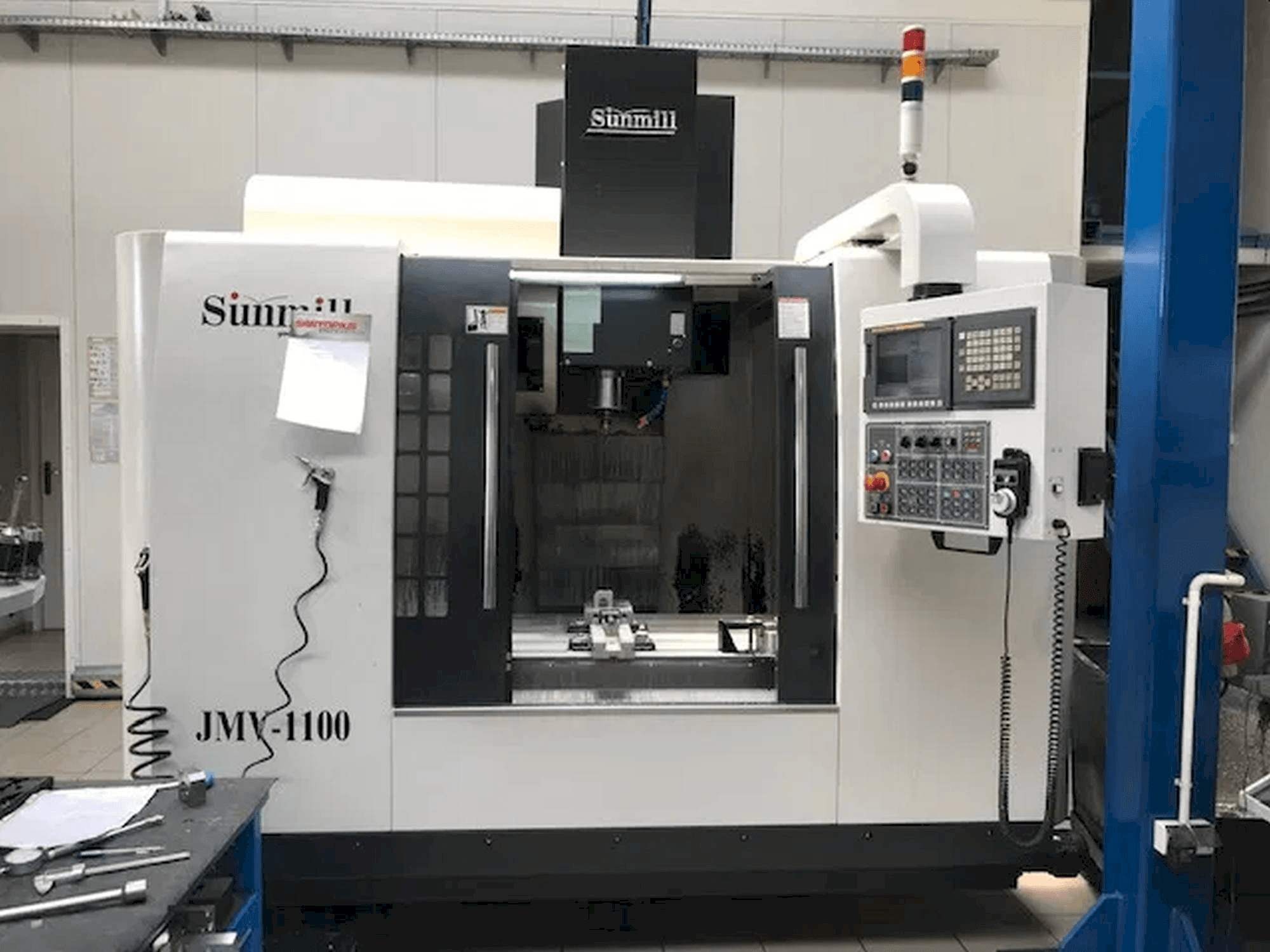

This SUNMILL JMV-1100 Vertical Machine Center was manufactured in the year 2014 in Taiwan. It has a total of 7900 working hours. This machine operates through a Fanuc 0i-MD control unit. This 3 axis machine can work with a spindle speed up to 12000 rpm. It includes additional equipment such as wireless probes of workpiece and tools. The machine is in very good, working condition.
Overview
- brand: SUNMILL
- year: 2014
- MODEL: JMV-1100
- production hours: 7900
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - SUNMILL JMV-1100
General Data
- Measurements width: 2560 mm
- Measurements depth: 2870 mm
- Measurements height: 3430 mm
- Machine weight: 7500 kg
Control Unit
- Brand: Fanuc
- Model: 0i-MD
Main drive
- Spindle speed range: 12000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1100 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 600 mm
Table
- Outer length: 1250 mm
- Outer width: 650 mm
- Table load: 880 kg
Media
- Main electronic connection: 400V / 50Hz
- Power consumption: KVA 20
Additional Equipment
- - wireless probes of workpiece and tools
Additional Information
- Technical Machine Benefits:
- - Spindle taper: bt-40
- - Vertical tool magazine 24 + 1
- - Cooling through the spindle
- - Full documentation. Still at the production and ready for tests.
- - Vertical tool magazine 24 + 1
- Qualitative Machine Benefits:
- - Serviced always by the polish agent service.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
