SUMITOMO SHI DEMAG - Systec 500/9200- 6400RU-INJ-SUM-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
SUMITOMO SHI DEMAG Systec 500/9200- 6400 Injection Moulding Machine

Show in original language

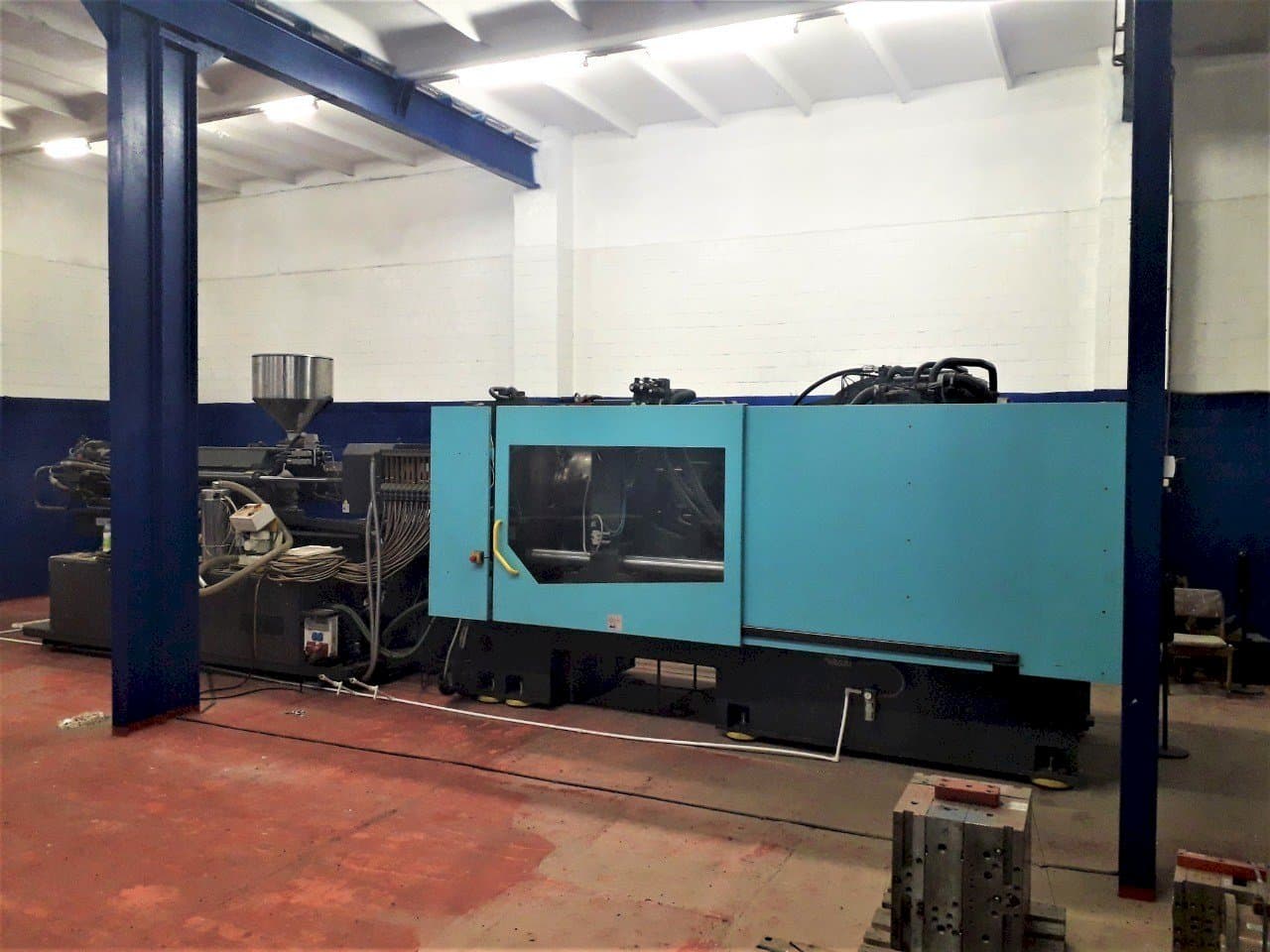

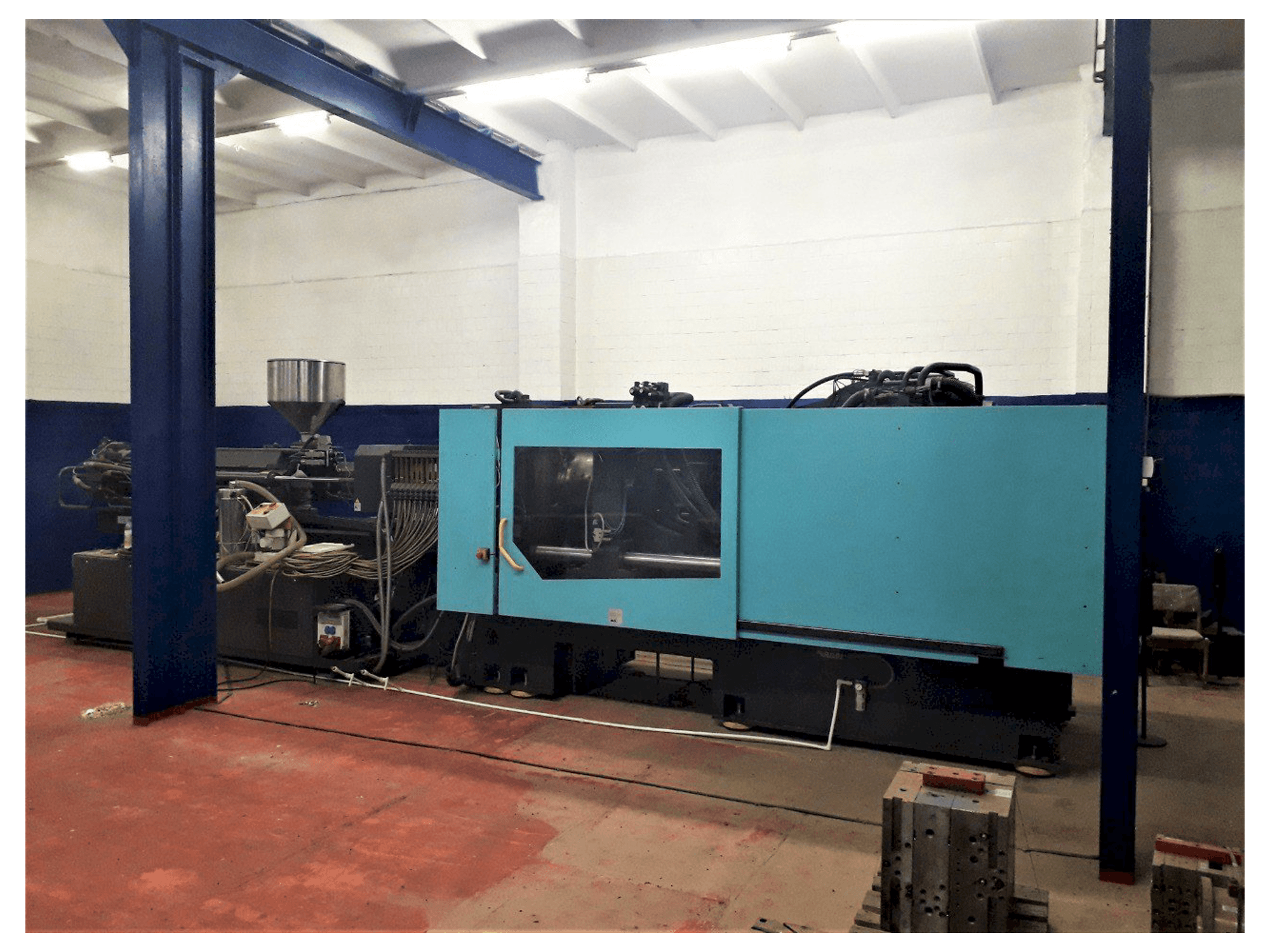

This SUMITOMO SHI DEMAG Systec 500/9200- 6400 Injection Moulding Machine was manufactured in Germany in the year 2012. It has a production record of approximately 12000 hours. This machine can work with a clamping force of 5000 kN and an injection pressure of 1895 bar.

Overview

brand: SUMITOMO SHI DEMAG
year: 2012
MODEL: Systec 500/9200- 6400
production hours: 12000
application type: Injection Moulding
Location: Russia
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG Systec 500/9200- 6400

General Data

Machine weight: 24500 kg

Injection Unit

Screw diameter: 95 mm
Stroke volume: 3367 cm CM³
Injection pressure: 1895 bar

Clamping unit

Clamping force: 5000 kN
Size of mold platens: 1300 x 1300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Controller С-dias
- - Size between the columns is 920 x 920mm
- - Opening between the plates is 1770/2000 mm
- - Package: min-ave. Shapes-400mm. Max. -920/1150mm
- - Weight of the mold is 8. 7 t
- - Ring diameter is 420 mm
- - Stroke of 880 mm
- - Pusher stroke is 260mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
