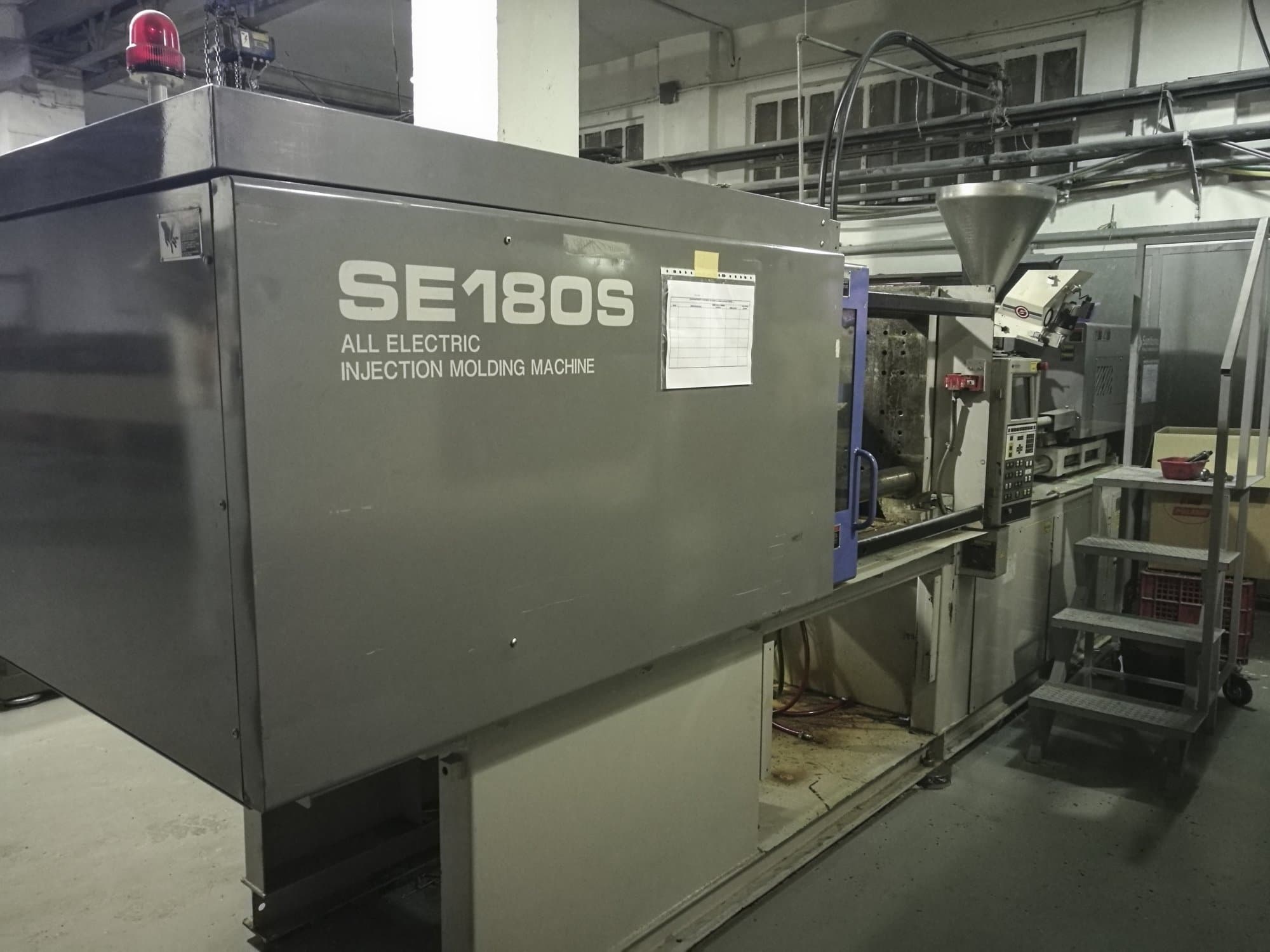

SUMITOMO SHI DEMAG SE180S Injection Moulding Machine

Show in original language

This SUMITOMO SHI DEMAG SE180S Injection Moulding Machine was manufactured in the year 2002 in Italy and has a working record of approximately 15000 production hours. Operated through a Sumitomo control unit, in the past this equipment has handled mostly polypropylene. The machine has a clamping force of 1800 kN and stands in very good condition.

Overview

brand: SUMITOMO SHI DEMAG
year: 2002
MODEL: SE180S
production hours: 15000
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: Sumitomo

Technical Information - SUMITOMO SHI DEMAG SE180S

General Data

Measurements width: 5462 mm
Measurements depth: 1249 mm
Measurements height: 2031 mm
Machine weight: 6500 kg

Control Unit

Brand: Sumitomo

Injection Unit

Screw diameter: 40 mm
Shot weight: 193 g/PS
Stroke volume: 201 cm³
Injection pressure: 2000 bar
Plasticizing rate max.: 28 g/s PS
Screw speed: 400 1/min
Heating capacity: 10.5 kW
Nozzle pressure: 24.5 kN

Clamping unit

Clamping force: 1800 kN
Opening stroke: 430 mm
Distance between bars: 510 x 510 mm
Mould height min: 200 mm
Mould height max: 500 mm
Size of mold platens: 930 mm
Ejector stroke: 120 mm
Ejector force for / back: 46 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
