DEMAG Ergotech 330-2300 Injection Moulding Machine

Show in original language

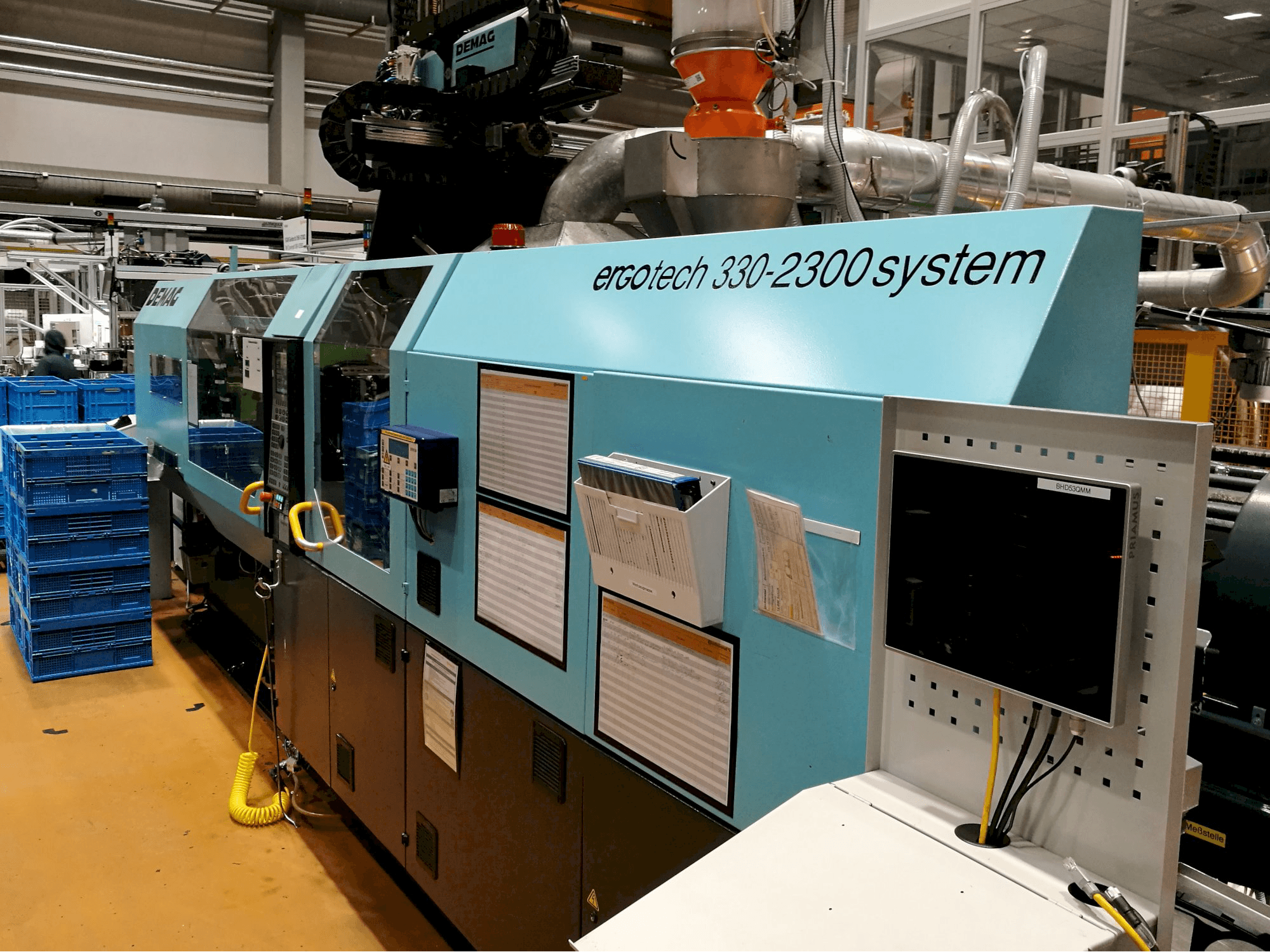

This DEMAG Ergotech 330-2300 Injection Moulding Machine from 1996 was manufactured in Germany. Equipped with a DEMAG NC4 Control unit, this reliable machine incorporates a clamping force of 3300 kN.

Overview

brand: SUMITOMO SHI DEMAG
year: 1996
MODEL: Ergotech 330-2300
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG Ergotech 330-2300

General Data

Measurements width: 6500 mm
Measurements depth: 2000 mm
Measurements height: 2300 mm
Machine weight: 15000 kg

Control Unit

Model: NC4
CNC main language: German
CNC language customizable: Yes

Injection Unit

Screw diameter: 60 mm
Shot weight: 800 g/PS
Stroke volume: 891 cm³
Injection pressure: 2420 bar
Heating capacity: 23 kW

Clamping unit

Clamping force: 3300 kN
Opening stroke: 675 mm
Distance between bars: 710x630 mm
Mould height min: 330 mm
Mould height max: 830 mm
Size of mold platens: 1040x950 mm
Ejector stroke: 200 mm
Ejector force for / back: 80 kN

Media

Main electronic connection: 400 V / 50 Hz

Additional Equipment

- Handling DEMAG (W322)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
