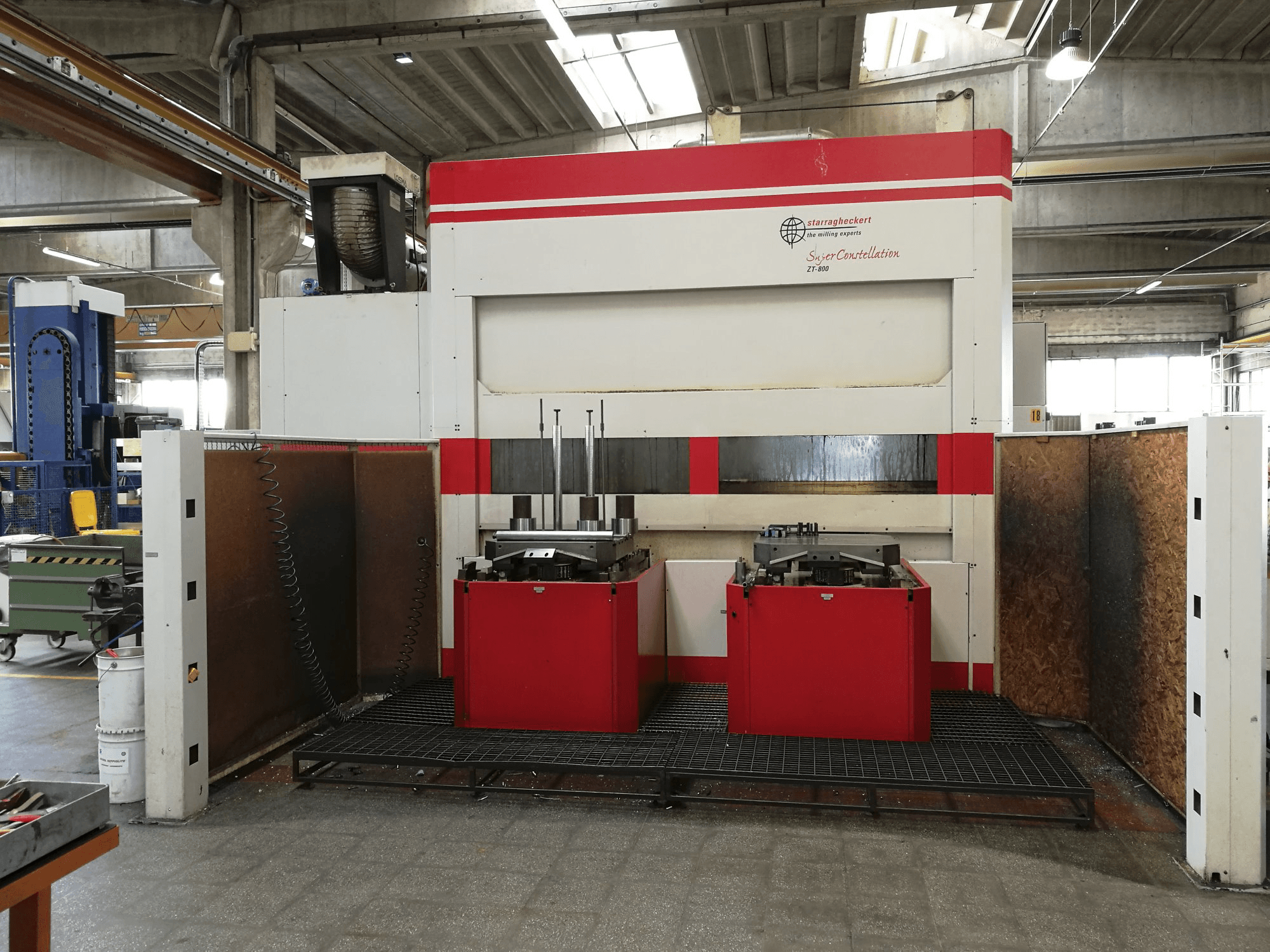

Starrag ZT 800/140 Machining Center

Show in original language

This Starrag ZT 800/140 Machining Center from 1999 has a production record of 65460 working hours. Operated through a SIEMENS SINUMERIK 611 with Ethernet Interface Control unit, the ZT 800/140 stands out for its pallet changer (2x pallets) and its dynamism: aside from having two interchangeable spindles, it allows a wide range of movements (1600 mm, 1250 mm and 1320 mm in the X, Y and Z Axis respectively). In the past, the machine has handled mostly steel and was utilized for parts production for the Energy supply industry. Additionally, an inspection has been performed every 6 months on it.

Overview

brand: Starrag
year: 1999
MODEL: ZT 800/140
production hours: 65460
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Starrag ZT 800/140

General Data

Measurements width: 10000 mm
Measurements depth: 10000 mm
Measurements height: 4000 mm
Machine weight: 31700 kg

Control Unit

Brand: Siemens
Model: SINUMERIK 611
Interface: Ethernet
Remote control: Yes

Main drive

Number of spindles: 2
Spindle speed range: 6000-24000 1/min
Spindle motor power: 37/40 kW
Tool taper: SK 50/HSK-A 63

Movement

X-AXIS Movement: 1600 mm
A-AXIS Movement: +60°/-100° MM
B-AXIS Movement: 360° MM
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 1320 mm

Workpiece

Workpiece drm: 1680 mm
Workpiece weight: 4000 kg

Table

Outer length: 800 mm
Outer width: 800 mm
Number of tslots: 7

Tools

Slots in storage: 96
Max weight: 3 kg
Max tool diameter: 130 mm
Max tool length: 475 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
