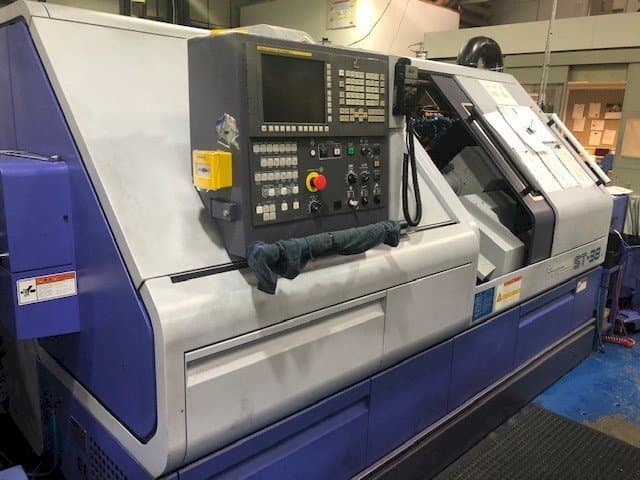

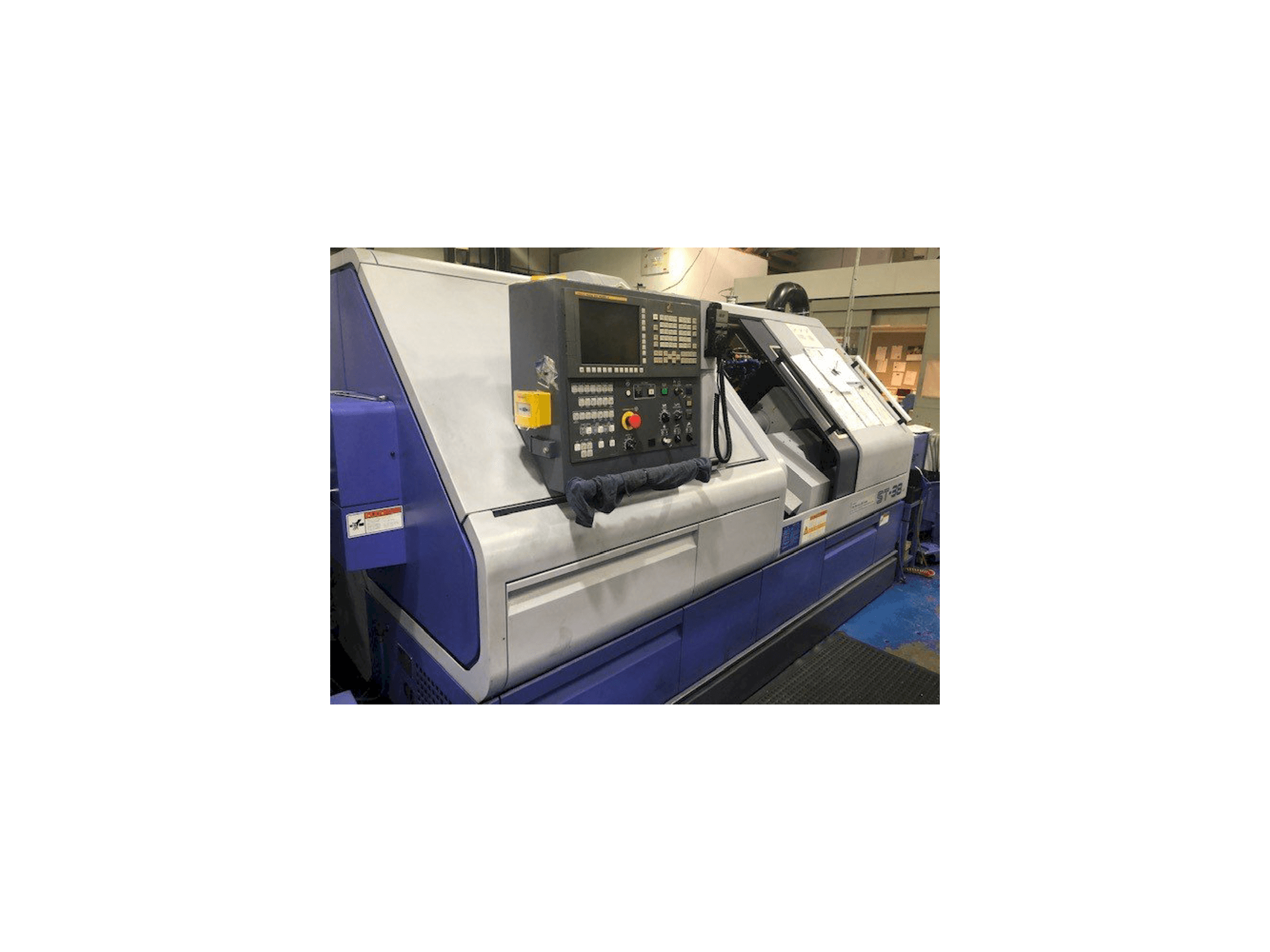

This Star ST-38 Lathe was built in the year 2015. It is operated through a Fanuc Series 30i-A Control Unit. This 12 axis machine can work with a spindle speed up to 7000 rpm and a headstock stroke 350 mm. It is in very good condition.

Overview

brand: Star
year: 2015
MODEL: ST-38
application type: Turning
Location: United Kingdom
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: Fanuc

Technical Information - Star ST-38

Control Unit

Brand: Fanuc
Model: Series 30i-A
CNC language customizable: Yes

Main drive

Number of spindles: 2
Spindle speed range: 7000 1/MIN
Spindle motor power: 11.0 kW
Number of axis: 12

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max machining diameter 38 mm / 42 mm (option)
- - Headstock stroke 350 mm
- - Main spindle turrets x1 / y1 / x3 / y3 / z3 axis
- - Main spindle (headstock) z1 / c1 axis
- - Sub spindle x2 / y2 / z2 / c2 / ya2 axis
- - Sub spindle power 7. 5 kw - speed 7000 rpm
Qualitative Machine Benefits:
- - Very good condition of the machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
