- Used Swiss Type Turning Machine STAR SR-32J type N - 2018 - for sale | gindumac.com

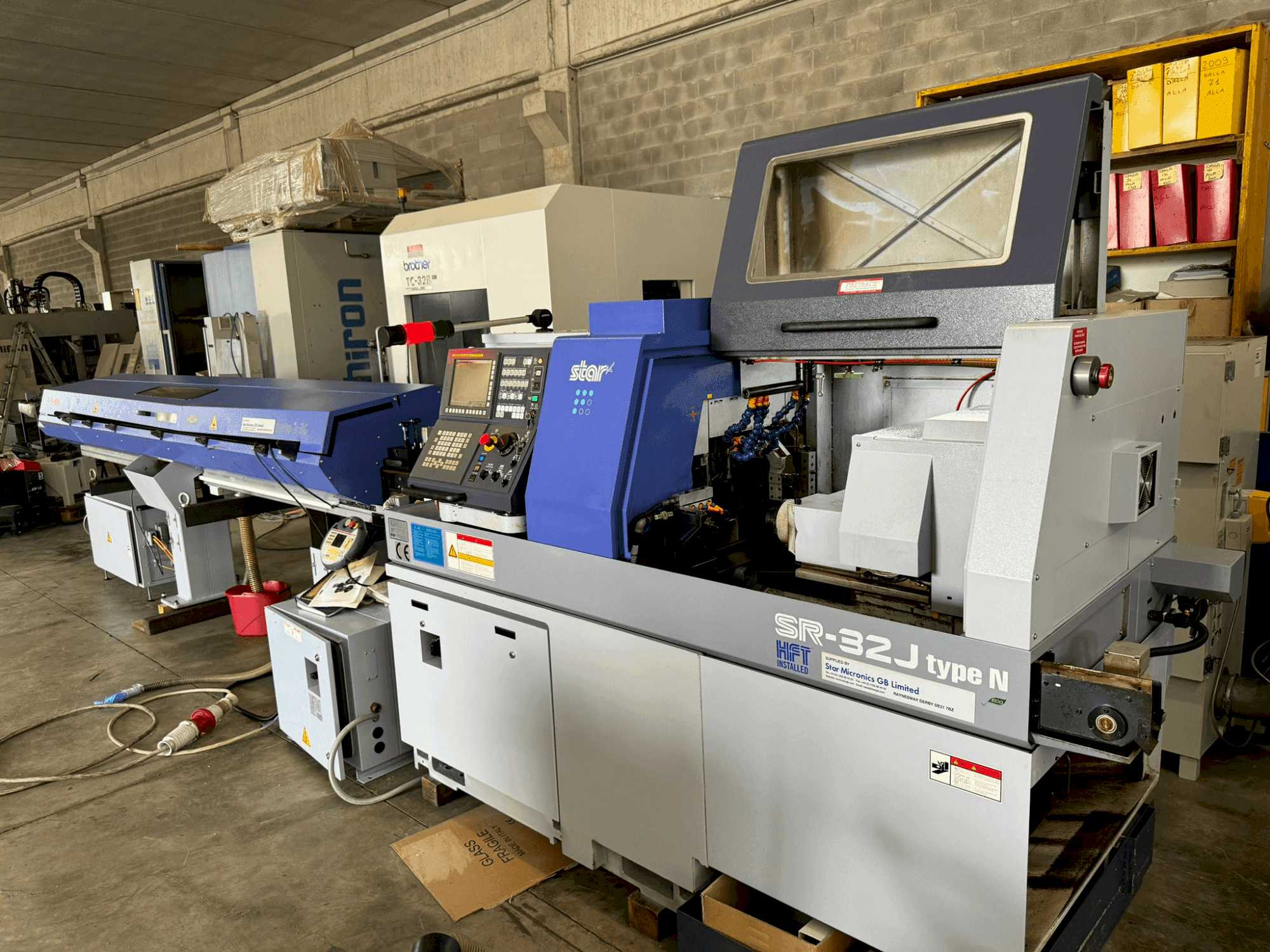

This 9-axis STAR SR-32J type N swiss type turning machine was manufactured in 2018. It offers a maximum machining diameter of 32 mm, with spindle revolutions up to 7000 rpm and a spindle motor power of 7.5/3.7 kW. Key features include a counter spindle with a maximum grip and pass diameter of 32 mm and a rapid axes advance of 24 m/min. The machine also comes equipped with a bar feeder. Contact us for more information about this swiss type turning machine.
Overview
- brand: Star
- year: 2018
- MODEL: SR-32J type N
- application type: Turning
- Location: Italy
- machine type: Swiss Type Turning Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - Star SR-32J type N
General Data
- Measurements width: 1700 MM
- Measurements depth: 2520 MM
- Measurements height: 1000 MM
- Machine weight: 2800 KG
Control Unit
- Brand: FANUC
- Model: Series 18i-TB
Main drive
- Spindle speed range: 7000 1/MIN
- Spindle motor power: 7.5 / 3.7 kW
- Number of axis: 9
Tools
- Max tool diameter: 13 MM
Additional Equipment
- - Barfeeder
Additional Information
- Technical Machine Benefits:
- - Fast forward axes at 24m/min enhances operational efficiency.
- - Max machining diameter: 32 mm
- - Rotary tool diameter: 8 mm
- - Maximum capacity in staining: fixed tool m12 x 1. 75 mm, m16 rotary tool x 1
- - Maximum milling capacity: end mill on comb slide diameter 10mm
- - Standard main spindle: useful diameter spindle hole 32mm, f37 caliper art 740
- - Shooting counter spindle: max grip and passage diameter 32 mm, spindle revolutions 7000 rpm, max piece length with frontal ejection 80 mm
- - Max workpiece length: 80 mm
- Qualitative Machine Benefits:
- - Consistent machining with precision facilitated by the machine’s robust configuration and advanced control system.
- - Versatile machining capabilities with maximum usability of tools due to the dynamic axis setup.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
