➤ Used Star SR-20RII For Sale | gindumac.com

Show in original language

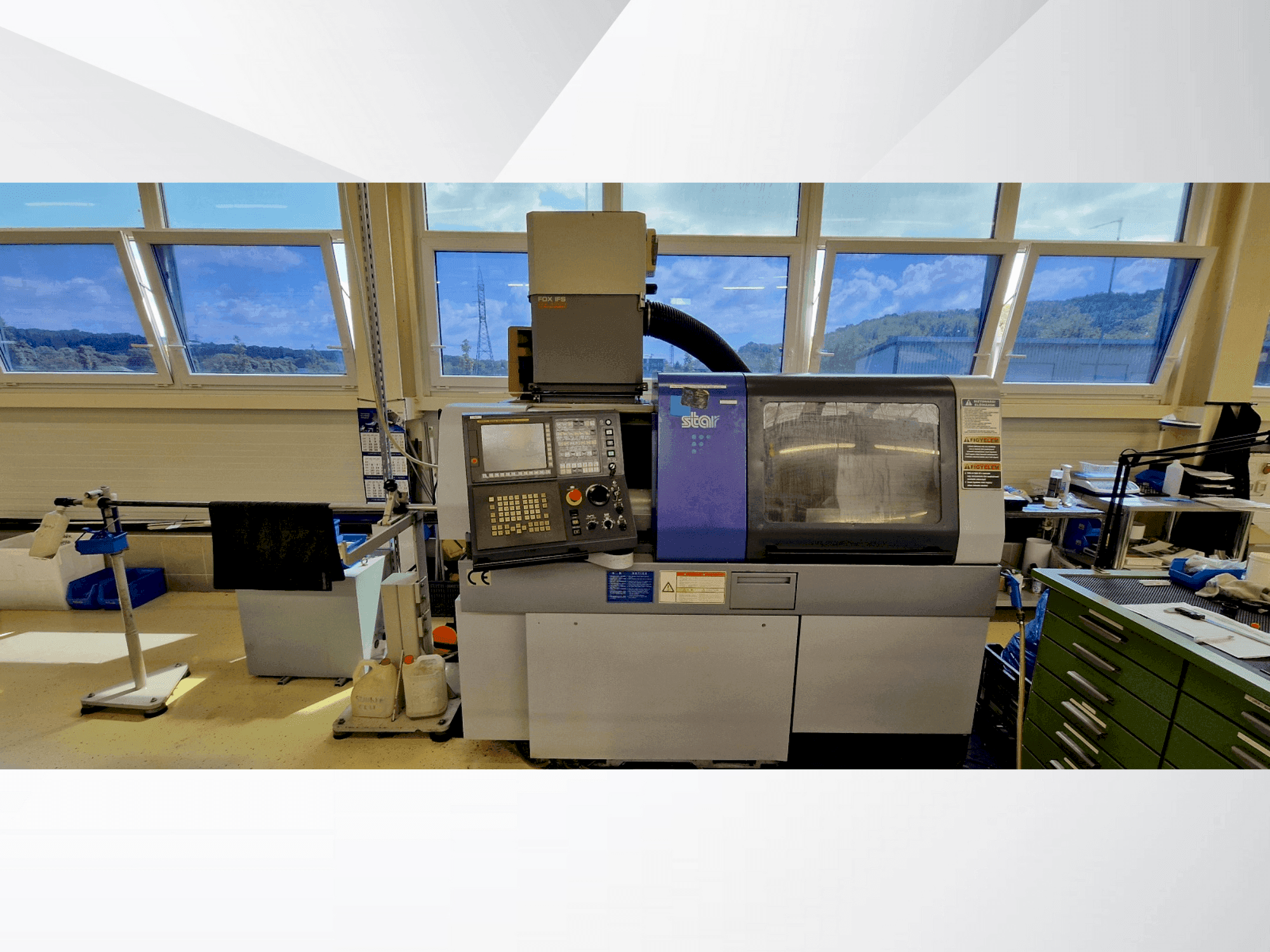

This 6-axis Star SR-20RII swiss type turning machine was manufactured in 2008. It features a maximum machining diameter of Ø 20 mm and a headstock stroke up to 205 mm. The main spindle speed reaches up to 10000 min⁻¹, supported by a 2.2 kW drive motor. Ideal for complex, precision tasks, the machine includes a gang tool post with multiple tooling options. For more information about this swiss type turning machine, please reach out to us.

Overview

brand: Star
year: 2008
MODEL: SR-20RII
application type: Turning
Location: Hungary
machine type: Swiss Type Turning Machine
availability: Immediately

Technical Information - Star SR-20RII

General Data

Measurements width: 2200 MM
Measurements depth: 1200 MM
Measurements height: 1700 MM
Machine weight: 2200 kg

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 6

Movement

X-AXIS Movement: 600mm
Y-AXIS Movement: 200mm
Z-AXIS Movement: 410mm

Workpiece

Workpiece drm over bed: 20mm

Additional Equipment

- Coolant System: 1.5 MPa pressure 11.7 L/min (50 Hz) 13.6 L/min (60 Hz)
- Gang tool post configuration Tool holder & Sleeve: 301, 331, 401, 411, 421, 541, 571, 661 series
- Power-driven attachment: Spindle speed (max. 8000 min⁻¹) AC servo drive, Drive motor (1.2 kW)
- Tool selection: Servo motor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle motor power: 2. 2 kw (continuous) / 3. 7 kw (15 min/60% ed)
- - Number of tools: 6 tools (gang tool post)
- - Max workpiece length: 205 mm (with stationary guide bush) 172 mm (with rotary magic guide bush, optional)
- - High rapid feed rate (35000 mm/min for x, z, y, xb, zb, and 198000°/min for the c-axis)
- - Comprehensive machining capabilities include turning, drilling, tapping, milling, and slotting
- - Maximum drilling capability: stationary tool (Ø 10 mm and Ø 8 mm) power-driven tool (Ø 8 mm)
- - Maximum tapping capability: stationary tool (m8 x p1. 25) power-driven tool (m6 x p1. 0)
- - Maximum milling capability: Ø 10 mm
- - Maximum slotting capability: 1. 5 mm (w) x 4 mm (d)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
