STAR SB-20R TYPE G Lathe

Show in original language

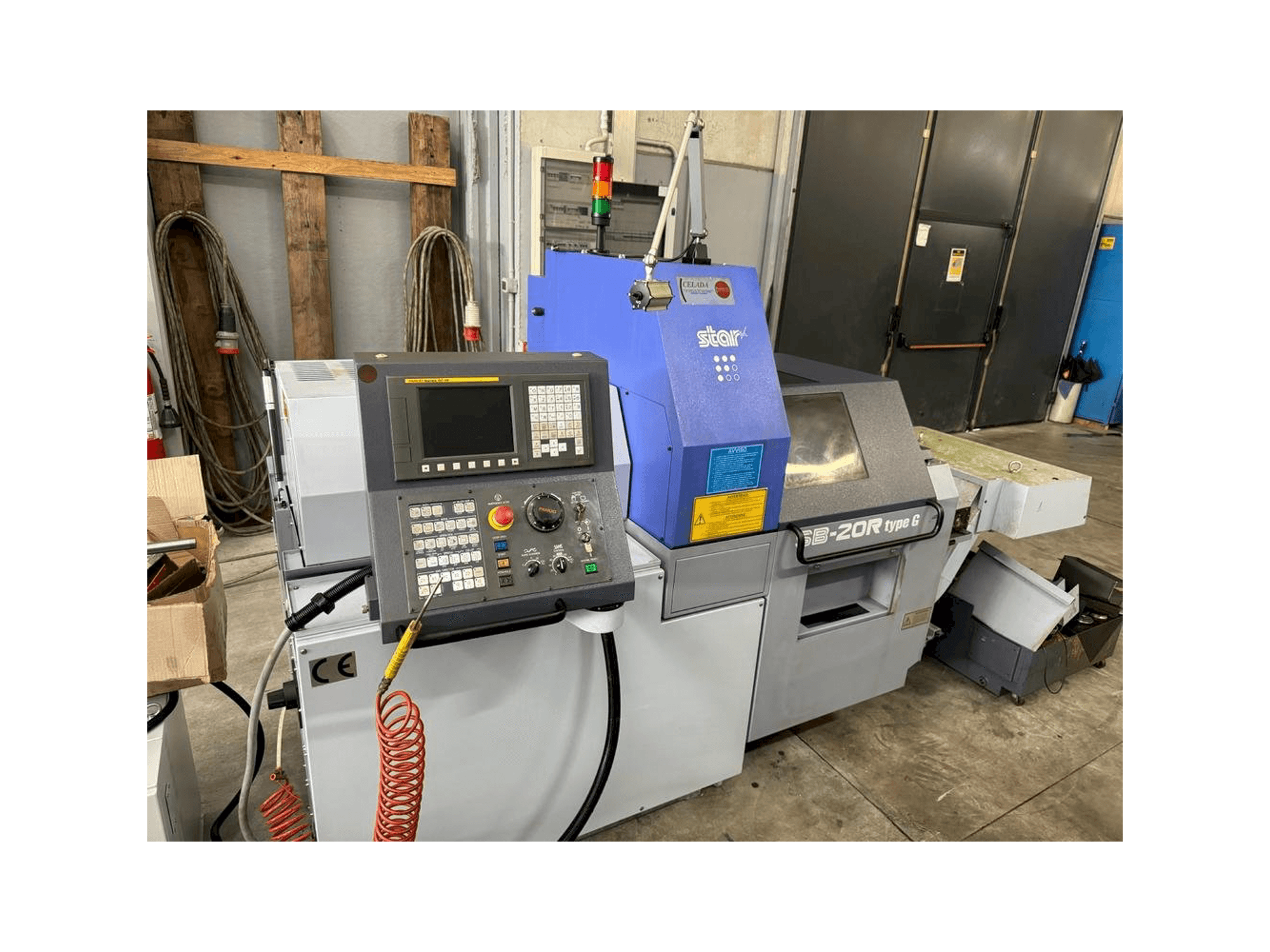

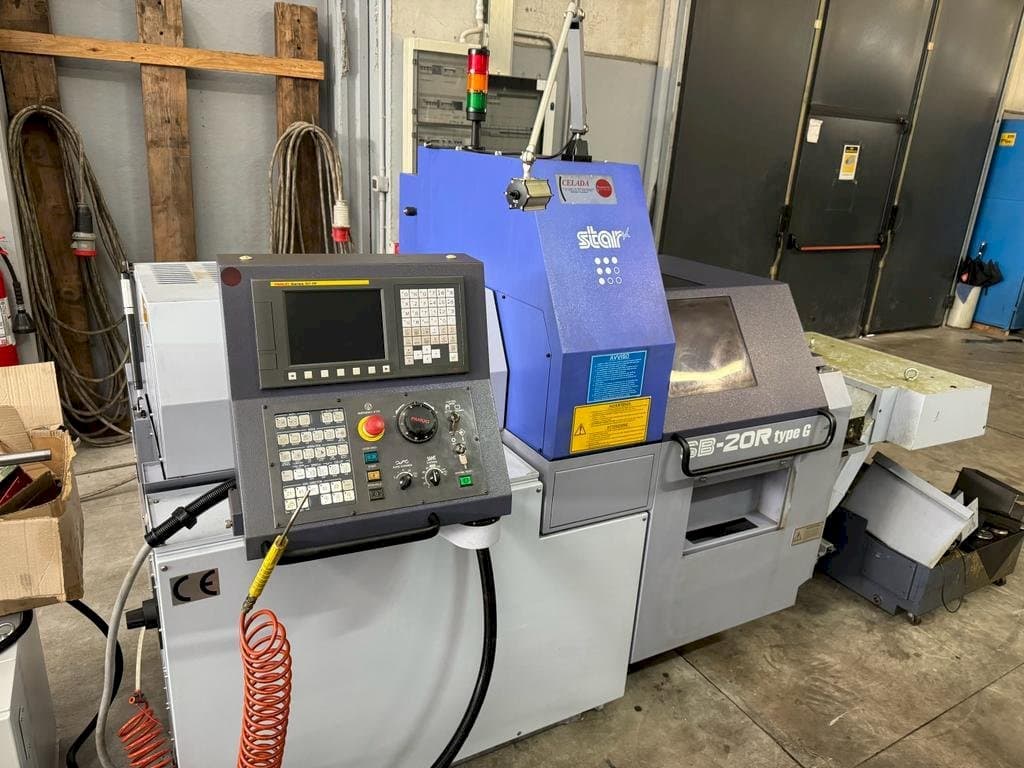

This STAR SB-20R TYPE G Lathe was made in 2017 in Japan. It is equipped with a Fanuc Series control unit and has 7 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: Star
year: 2017
MODEL: SB-20R TYPE G
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Star SB-20R TYPE G

General Data

Machine weight: 1750 kg

Control Unit

Model: Series
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 3.7 KW
Number of axis: 7

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle (headstock): z1 / c1 axis
- - Max. Machining diameter: 20 mm / 22. 2 mm (option)
- - Main spindle platen: x1 / y1 axis
- - Headstock stroke (swiss type / ngb mode): 205 mm / 50 mm
- - Turning tool: 6 tools @ 12 mm sq
- - Drilling arm sleeve holder capacity: 4 x Ø 22 mm sleeves (er16)
- - Power driven tool (pdt) positions: 2 + 3 modular stations
- - Max (pdt) speed: 10,000 rpm (er11) / 6,000 rpm (er16)
- - Sub spindle: x2 / z2 / c2 axis max. Chucking diameter: 20 mm / 22. 2 mm (option) sub spindle power: 1. 1 kw sub spindle speed: 9,000 rpm sub spindle tooling back-working platen positions: 4 max drill sleeve capacity er16 power driven tool (pdt) positions: 4 (er16) max (pdt) speed: 8,000 rpm
Qualitative Machine Benefits:
- - Fmb - bar feed dimension: micromag 08-20: 3415 (1. 6m) - 5015 (3. 2m) - 6015 (4. 2m) minimag 2-20: 3415 (1. 6m) - 5015 (3. 2m) - 6015 (4. 2m) turbo 2-20: 3215 (2. 2m) - 4215 (3. 2m) - 5215 (4. 2m) turbo 3-36: 3320 (2. 2m) - 4320 (3. 2m) - 5320 (4. 2m)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
