- Stama MC 526 / TWIN Vertical Machining center

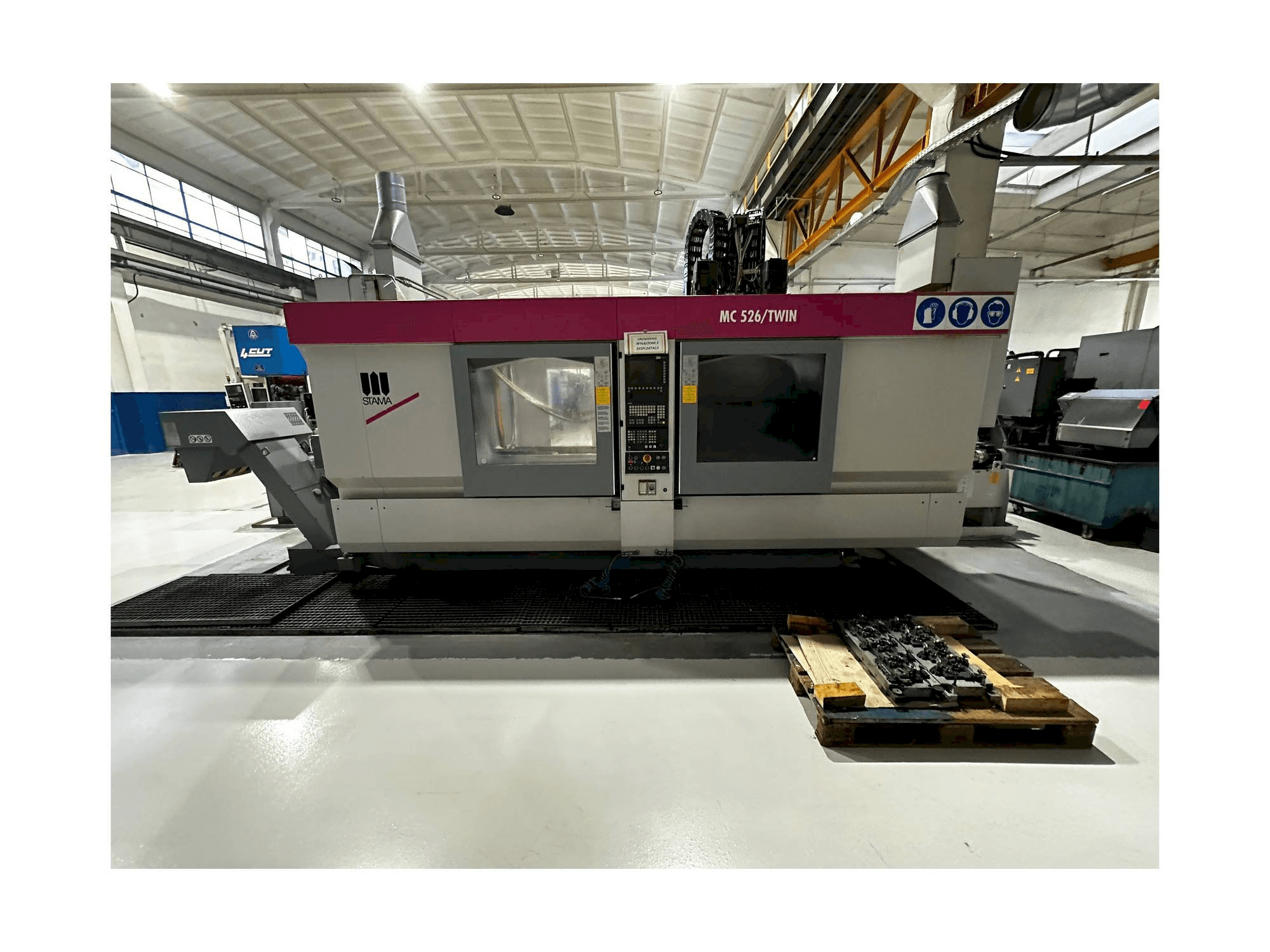

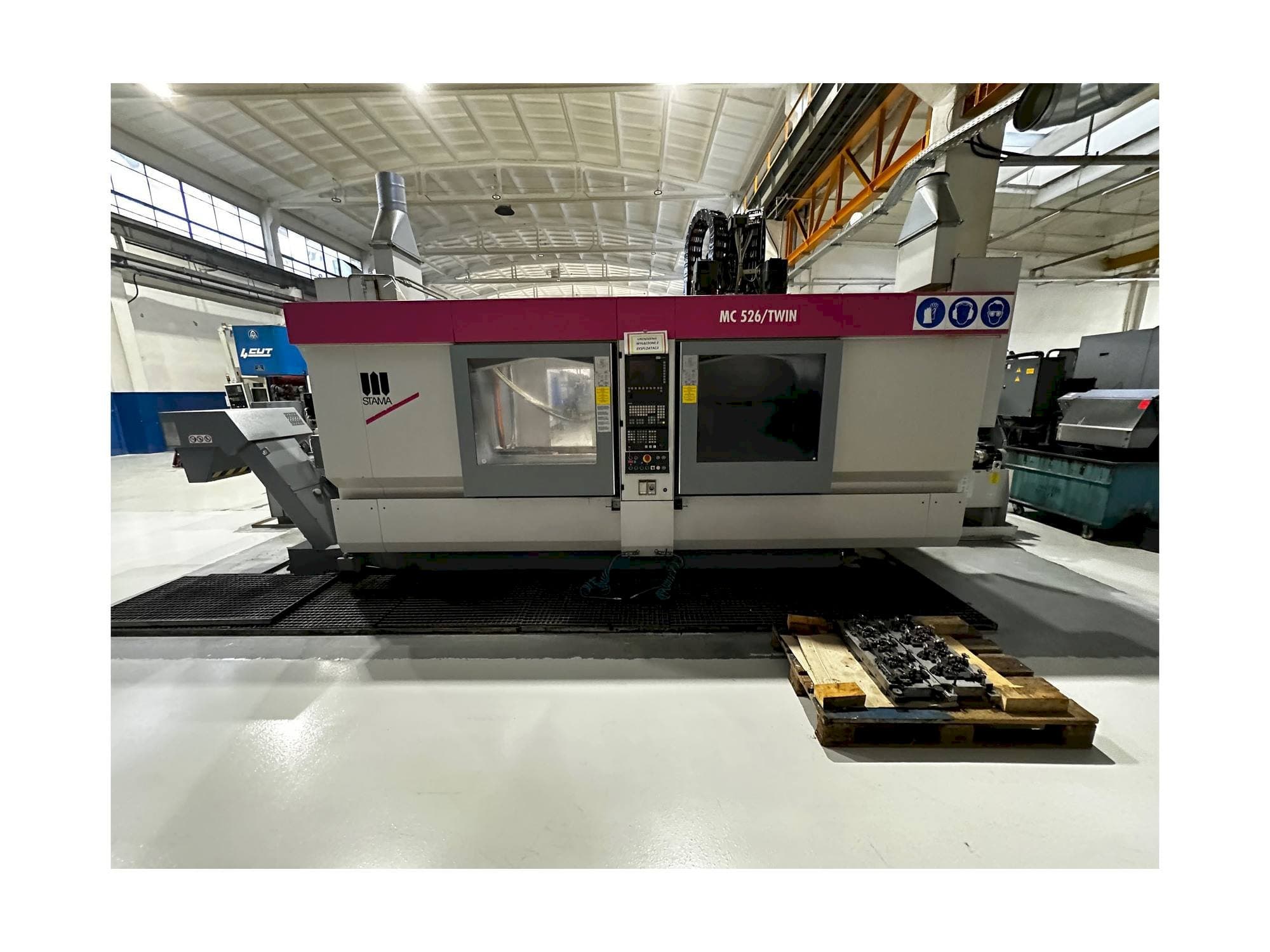

This Stama MC 526 / TWIN Vertical Machining center was manufactured in the year 2014 in Germany and has 38403 production hours. It is equipped with a SIEMENS 840D control unit. The machine has a spindle speed of 36 - 12000 rpm.
Overview
- brand: STAMA
- year: 2014
- MODEL: MC 526 / TWIN
- production hours: 38403
- application type: Milling
- Location: Poland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Siemens
Technical Information - STAMA MC 526 / TWIN
General Data
- Measurements width: 8800 mm
- Measurements depth: 4200 mm
- Measurements height: 3300 mm
- Machine weight: 9500 kg
Control Unit
- Brand: Siemens
- Model: 840D
Main drive
- Number of spindles: 1
- Spindle speed range: 36 - 12000 1/MIN
- Tool taper: SK40/HSK-A63
Movement
- X-AXIS Movement: 630 mm
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Movement: 500 mm
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Movement: 360 mm
- Z-AXIS Rapid traverse: 60 m/min
Tools
- Max tool diameter: 140 mm
- Max tool length: 300 mm
- Type of tool holder: HSK63
Additional Information
- Technical Machine Benefits:
- - Max. Milling performance [cm³]: 210
- - Max. Drilling diameter [mm]: 18
- - Max. Tapping diameter: m20
- - Max. Feed force [n] x-axis: 4,000 y-axis: 4,000 z-axis: 8,000
- - Feed speed x-axis [mm]:min. : 1 max. : 10,000 y-axis [mm]:min. : 1 max. : 10,000 z-axis [mm]:min. : 1 max. : 10,000
- - Max. Torque [nm]: 30, at (% ed): 100%
- - Overhang: 484 mm
- - Spindle bearing diameter: 65 mm
- - Table-spindle nose min. /max: 500 / 860 mm
- - Overhang: 484 mm
- Qualitative Machine Benefits:
- - Tool tensioning : 18000 n
- - Number of tools: 70
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
