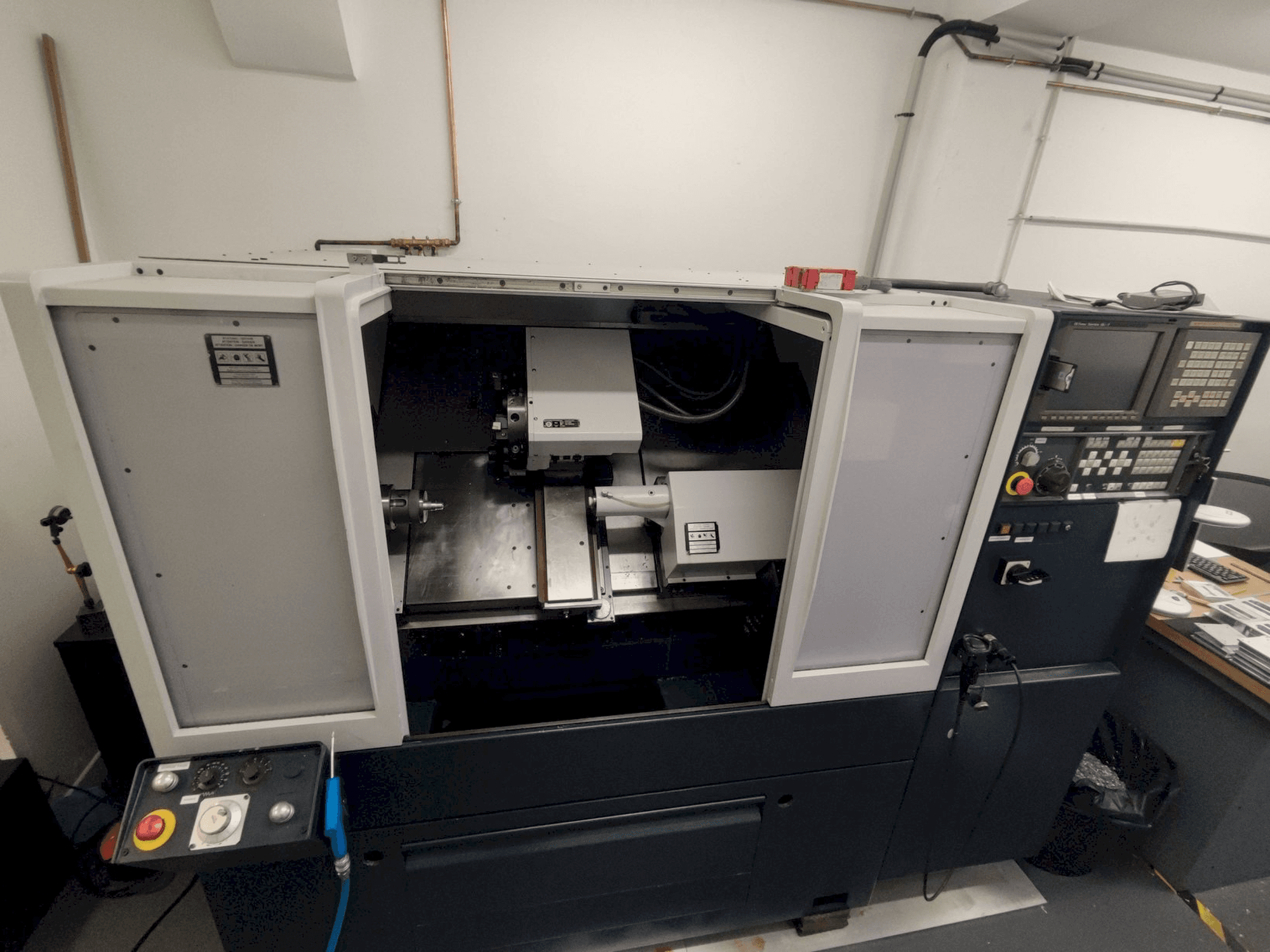

This SPINNER PD32 Lathe was manufactured in the year 2001 in Germany. It is equipped with a Fanuc Series 18i-T control unit. The machine has a spindle speed of 6000 rpm.
Overview
- brand: SPINNER
- year: 2001
- MODEL: PD32
- application type: Turning
- Location: France
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - SPINNER PD32
General Data
- Measurements width: 1200 mm
- Measurements depth: 2300 mm
- Measurements height: 1700 mm
- Machine weight: 2200 kg
Control Unit
- Model: Series 18i T
- Brand: FANUC
Main drive
- Spindle speed range: 6000 1/MIN
Additional Information
- Technical Machine Benefits:
- - Admited above the bench: 300 mm
- - Passage of the spindle: 32 mm
- - Engine power:7. 7 kw
- - Fast forward: 12m/min
- - Travel of the transverse slide (x): 400 mm
- - Maximum length of the carriage (z): 400 mm
- - The sheath / stroke: 40 / 128 mm.
- - Max speed of motorized tools:
- - Tool holder turret: 12 vd120 tools
- - Max power: 11 kw , max torque: 23 nm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
