Soraluce TA 35 Milling Machine

Show in original language

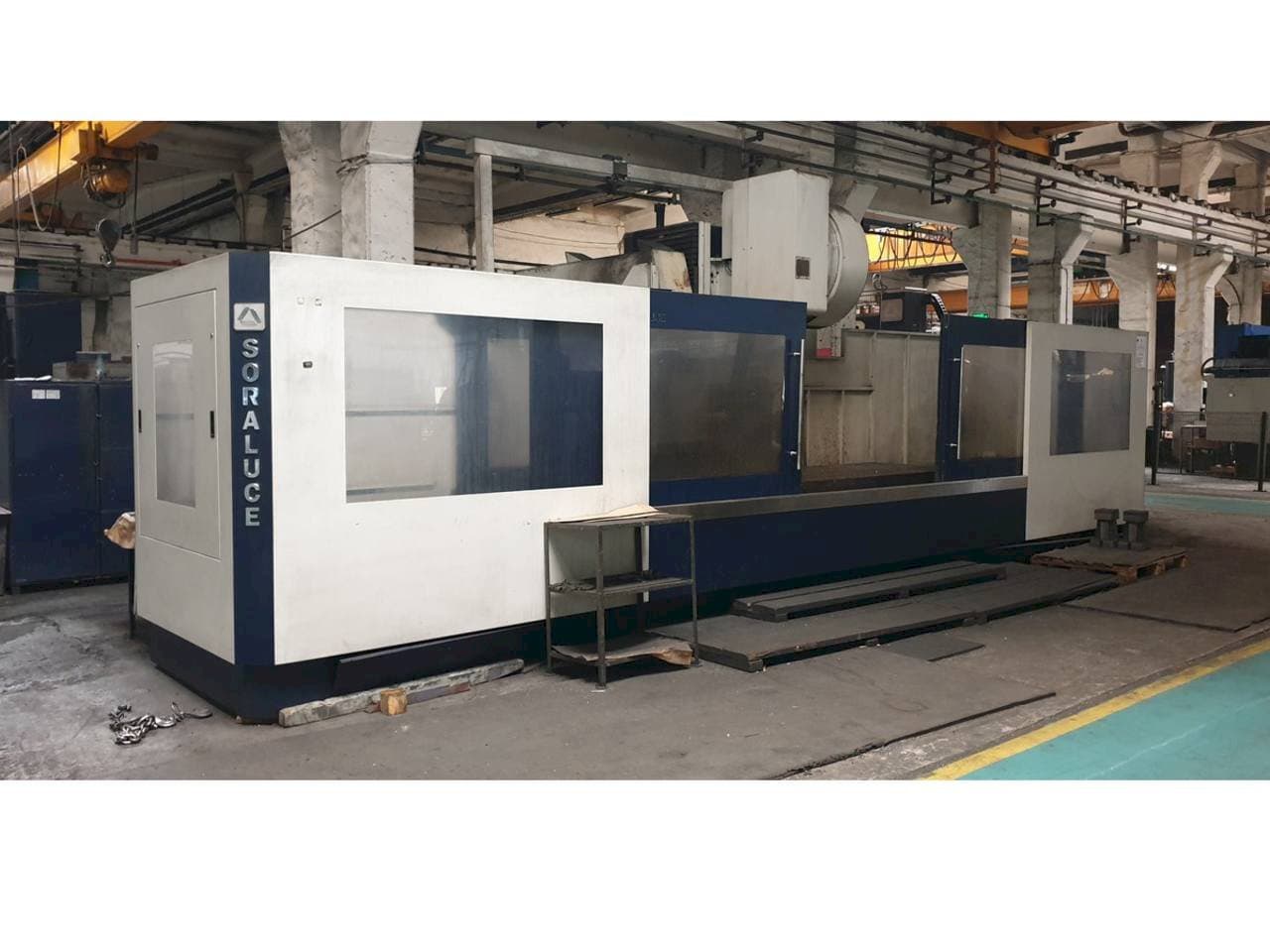

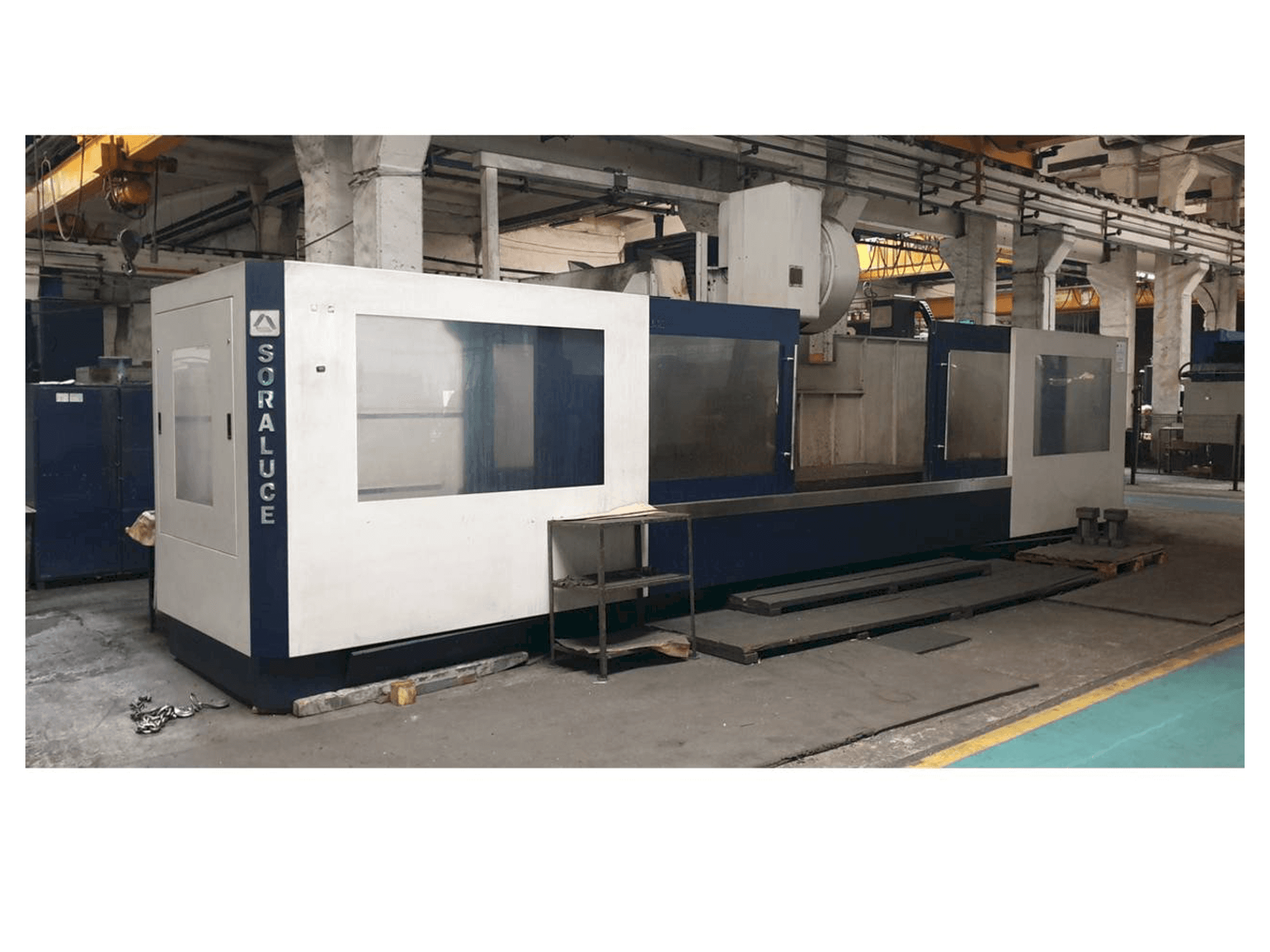

This Soraluce TA 35 Milling Machine was made in the year 2012 in Spain. It is equipped with a Heidenhain control unit. It has approximately 30000 hours. This machine can work with a spindle speed range of 15 - 3000 rpm, a vertical course of 1250 mm, and a longitudinal course of 3500 mm.

Overview

brand: Soraluce
year: 2012
MODEL: TA 35
production hours: 30000
application type: Milling
Location: Romania
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce TA 35

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 15 - 3000 1/MIN

Table

Table load: 2500 kg

Tools

Max weight: 15 kg

Media

Main electronic connection: 400 VAC 50 Hz
Power consumption: 49 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Vertical course: 1250 mm
- - Longitudinal course: 3500 mm
- - Transversal ram course: 1000 mm
- - Table width of t-slots: 22 mm
- - Mandrel motor power level: 24 kw
- - Mandrel headstock cone: din-69871-a
- - Maximum working feeds: 10000 mm/min
- - Fast feeds: 20000 mm/min
- - Maximum thrust of shaft to cutting unit: 10000 n
- - Maximum diameter of tool between adjacent work stations: 125 mm
Qualitative Machine Benefits:
- - Maximum diameter of tool between alternate work stations: 200 mm
- - Maximum length of tool without cone: 200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
